water leak detection cable
| Price: | US$ 7 / Meter |
|---|---|
| Minimum Order: | 1 meter |
| Payment Terms: | T/T in advance |
| Port of Export: | Shenzhen ,China |
Product Details
| Model No.: | P-LFP1B | Brand Name: | Prosino |
|---|
| Certification: | CE , Rohs |
|---|---|
| Specification: |
Product Model: P-LFP1B
Cable diameter: 0.24 in(6.0mm)nominal Sensing wires: 2*30 AWG with jacket of conductive fluoropolymer Carrier: Fluoropolymer Cable weight: (50 ft/15m length) 500g Cable color: High-visibility yellow Breaking strength: Cable only:160 Ib(72KG) .Including connectors:70 Ib(32kg) Cut-through force: >50Ib with 0.005(>22kg with with 0.13mm) in blade;crosshead speed 0.2in/min Abrasion resistance: >65 cycles per UL719 Maximum continuous operating temperature: 70degree Leak size to alarm(tap water): 2 in(50mm)maximum at any piont along sensing cable ,up to 5000 ft maximum system length Drying time: Cable dries and resets within 15 seconds fo removal from standing water Standard cleaning method: Wipe with clean damp cloth Advanced technology for this Non-Position Water Sensing Cable: The conductive-polymer technology and fluoropolymer construction make P-LFP1B |
Packaging & Delivery
| Packaging: | Box |
|---|---|
| Delivery/Lead Time: | 2-3 days |
| Production Capacity: | 20,000 meters per Week |
Product Description

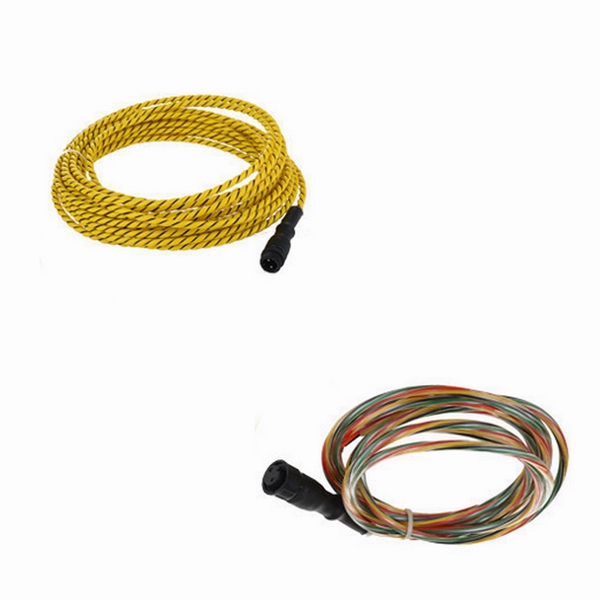

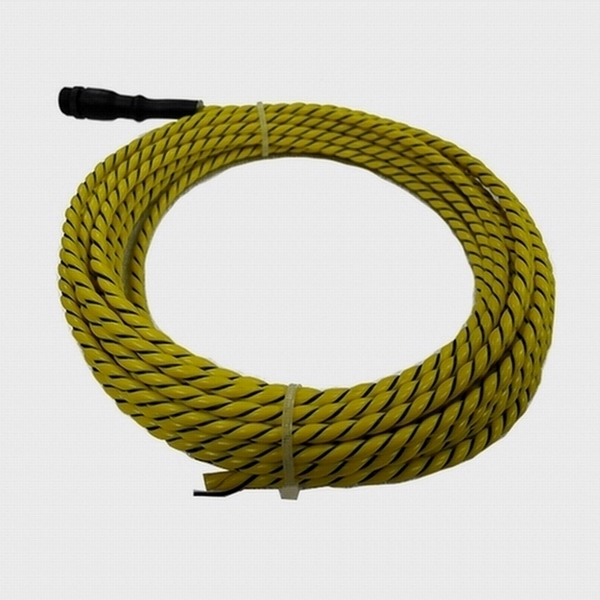

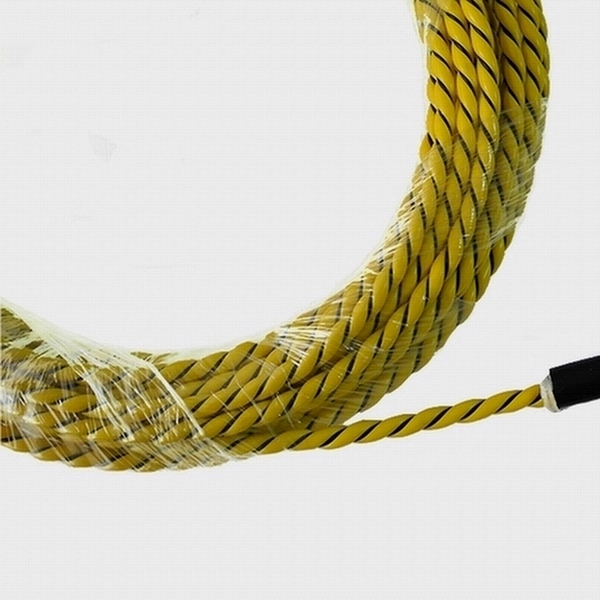

Product Name: Non-Position Water Sensing Cable
Product Model: P-LFP1B
Cable diameter: 0.24 in(6.0mm)nominal
Sensing wires: 2*30 AWG with jacket of conductive fluoropolymer
Carrier: Fluoropolymer
Cable weight: (50 ft/15m length) 500g
Cable color: High-visibility yellow
Breaking strength: Cable only:160 Ib(72KG) .Including connectors:70 Ib(32kg)
Cut-through force: >50Ib with 0.005(>22kg with with 0.13mm) in blade;crosshead speed 0.2in/min
Abrasion resistance: >65 cycles per UL719
Maximum continuous operating temperature: 70degree
Leak size to alarm(tap water): 2 in(50mm)maximum at any piont along sensing cable ,up to 5000 ft maximum system length
Drying time: Cable dries and resets within 15 seconds fo removal from standing water
Standard cleaning method: Wipe with clean damp cloth
Advanced technology for this Non-Position Water Sensing Cable: The conductive-polymer technology and fluoropolymer construction make P-LFP1B
sensing cable
mechanically strong and resistant to corrosion and abrasion.The cable is
constructed of two sensing wires,
embedded in a fluoropolymer carrer rod.
The alarm module
constantly monitors the sensing cable for continuity
The rugged cable construction exposes no metal,
and enables the cable to be reused even in corrosive environments.
|
