SDpanel is Solideck’s brand for its sandwich-panel products. SDpanel PIR wall sandwich panel is insulated flat panels made from two metal layers with an insulating layer of Polyisocyanurate (PIR) foam in between. They are widely used in wall constructions in industrial and commercial buildings as they are resistant to temperature fluctuations, fire resistant, impact resistant and cost effective.

Introduction of SDpanel PIR Wall Sandwich Panel
SDpanel-Wall-PIR is available in thicknesses of 50-150 mm and widths of 1000 mm, with a capacity of 38-42 Kg/m± and lengths of 3-12.5 m in general.The facing material could be color-coated sheeting, aluminum sheeting, and embossed steel sheeting, galvanized sheeting, stainless steel sheeting.

Advantages of SDpanel PIR Wall Sandwich Panel
SDpanel adopt sandwich panel with appropriative Polyisocyanurate , the fire endurance scope within 30-270 minutes or more.
The panel can prevent cold bridge effectively, and its heat retaining and energy-saving meet the requirement of low-carbon.
Reduce your overlapping loss effectively
complete cutting of fore-and-aft bounding on-line which avoids cutting on-site, permitting a good overlapping quality and waterproof.

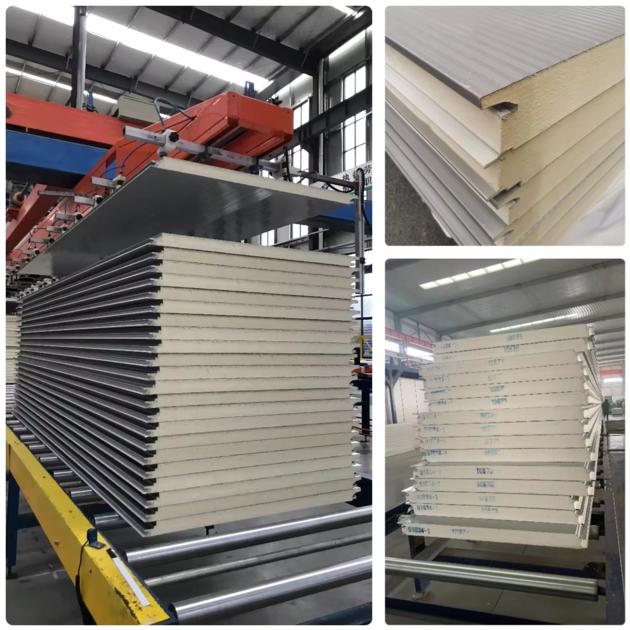

Due to continuous modern production technology with high pressure glue spraying, SDpanel has perfect completeness with good mechanical properties.
