open channel wall mounted doppler ultrasonic flow meter for waste water
| Price: | US$ 200-5000 / Unit |
|---|---|
| Minimum Order: | 1 unit |
| Payment Terms: | TT and other payment |
| Port of Export: | shanghaai |
Product Details
| Model No.: | DOF6000-W | Brand Name: | Lanry |
|---|
| Certification: | |
|---|---|
| Specification: |
Sensor:
Velocity: Velocity range: 20mm/sec to 12 m/sec. Bidirectional velocity capability. Velocity accuracy: ¯1% measured velocity Velocity resolution: 1mm/s Depth (Ultrasonic): Range: 20mm to 5000mm (5m) Accuracy: ¯ 1% of measured Resolution: 1 mm Depth (Pressure): Range: 0mm to 10000mm (10m) Accuracy: ¯ 1% of measured Resolution: 1 mm Temperature: Range: 0®C to 60®C Accuracy: ¯0.5®C Resolution: 0.1®C Electrical Conductivity (EC): Range: 0 to 200,000 ³´µS/cm, Typically ¯ 1% of measurement Resolution: ¯1 ³´µS/cm recorded as a 16-bit value (0 to 65,535 ³´µS/cm) or a 32-bit value (0 to 262,143 ³´µS/cm) Output: SDI-12: SDI-12 v1.3, Max. cable 50m RS485: Modbus RTU, Max. cable 500m Environmental: Operating temperature: 0℃ ~+60℃ water temperature Storage temperature: -20℃ ~+60℃ IP class: IP68 Calculator: Type: Portable Power supply: Calculator:85-265VAC (Charging battery) IP class: Calculator: IP66 Operating temperature: 0℃ ~+60℃ Output: Pulse,4-20mA(Flow & Depth),RS485/Modbus, Datalogger, GPRS Size: 270L×215W×175H (mm) Application: Partially Filled Pipe: 150-6000mm; Channel: width >200mm |
Packaging & Delivery
| Packaging: | carton |
|---|---|
| Delivery/Lead Time: | 3-7 days |
| Production Capacity: | 10000 units/week |
Product Description

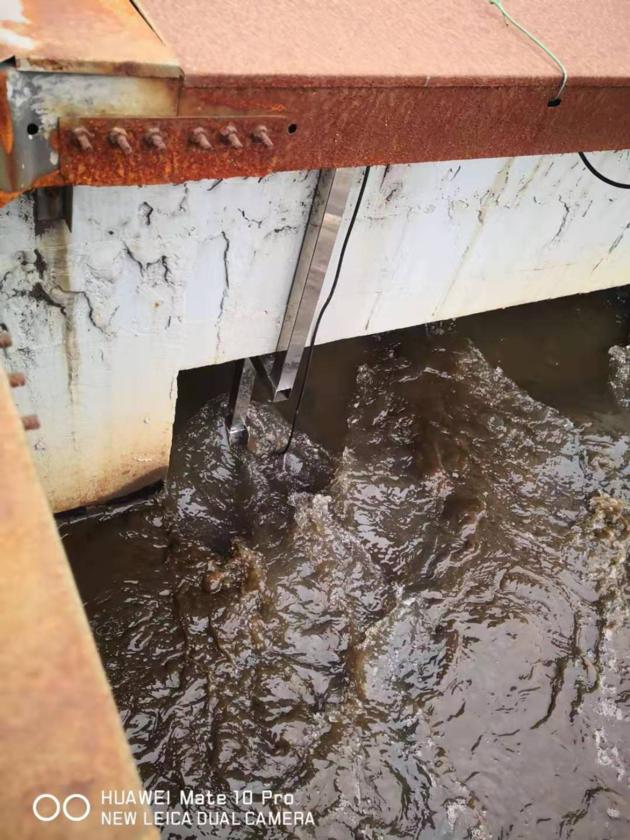

DOF6000-W Wall-mounted Open Channel Ultrasonic Flow Meter
The DOF6000 series DOF6000-W Wall-mounted Open Channel Ultrasonic Flow Meter consists of Flow calculator and the Ultraflow QSD 6537 Sensor.
The Ultraflow QSD 6537 Sensor DOF6000-W Wall-mounted Open Channel Ultrasonic Flow Meter is used to measure water velocity, depth, and conductivity of water flowing in rivers, streams, open channels and pipes. When used with a companion Lanry DOF6000 Calculator, flow rate and total flow can also be calculated.
The flow calculator can calculate the cross-sectional area of partially filled pipe, open channel stream or river, for stream or river, with up to 20 coordinate points describing the river’s shape of cross section. It is suitable for various applications.
Features:
u 20 coordinate points to describe cross section of the river’s shape.
u One instrument can measure the velocity, depth and conductivity simultaneously.
u Velocity Range: 0.02mm/s to 12m/s bi-directional, accuracy is 1%.
u Depth Range: 0 to 10m.
u Measure velocity in both forward flow and back flow.
u Depth is measured by both the pressure sensor and ultrasonic level sensor principles.
u With barometric pressure compensation function.
u IP68 Epoxy-sealed body design, designed for under water installation.
u RS485/MODBUS output, can connect to computer directly.
|
