network appliance max 32 GbE lan ports
| Price: | US$ 1 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT |
| Port of Export: |
Product Details
| Model No.: | Brand Name: | Anxin Intelligent |
|---|
| Certification: | CE,FCC,ROHS |
|---|---|
| Specification: |
Motherboard
CPU Supports Gen6/Gen7 Xeon E3-1200 series or 13/i5/i7 processors Chipset Intel C236 BIOS UEFI BIOS System memory Four dual-channels DDR4 ram slots, up to 64GB Storage Interface Four SATA3.0 connectors support RAID 0, 1, 5, 10 Hard Drive Four 3.5/2.5" HDD trays SSD One mSATA slot Ethernet LAN Port Two 10/100/1000Mbps RJ-45 ports Ethernet Controller Two Intel PCIe controllers System I/O USB Two USB3.0 Internal with four USB2.0 and two USB3.0 COM One RJ-45 COM Indicator One Power LED, one HDD LED LCM module Optional 2x16 characters LCM display module Video Built-in one VGA interface, support hot plug(Internal) Watchdog Timer Software programmable supports 1~255sec System reset Expansion Four PCIex8 for 4 expansion lan cards and one built-in PCIEx4 Power supply Power consumption Built-in 300W power supply Power input 100 ~ 240V AC input Optional DC power or Redundant power Environmental Mounting Supports rack-mounting or desktop-mounting Operate Temperature -10®C ~ 50®C Storage Temperature -20®C ~ 75®C Operate Humidity 5% ~ 85% non-condensing @ 40®C Storage Humidity 5% ~ 95% non-condensing Mechanical Chassis Color Black or OEM Front panel Silver PVC/Aluminum font panel(OEM/Neutral) Construction 2u chassis, Heavy duty metal Dimensions (D x W x H) 550x440x88mm Weight 18.3 kg Ordering informations F23224 2u rackmount chassis, C236 Chipset, 2 GbE ports, 4 nic slots, 300W PSU F23224-P2 2u rackmount chassis, C236 Chipset, 2 GbE ports, 4 nic slots, 350W redundant PSU |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 7 days |
| Production Capacity: |
Product Description

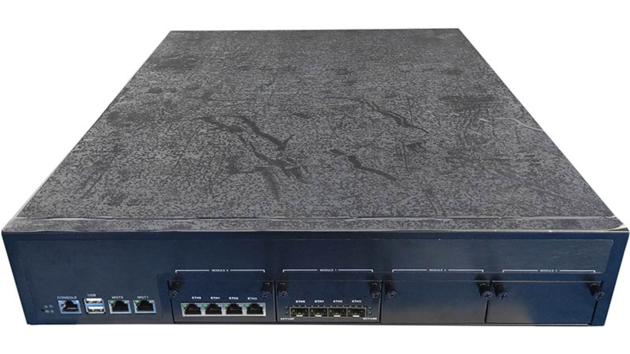

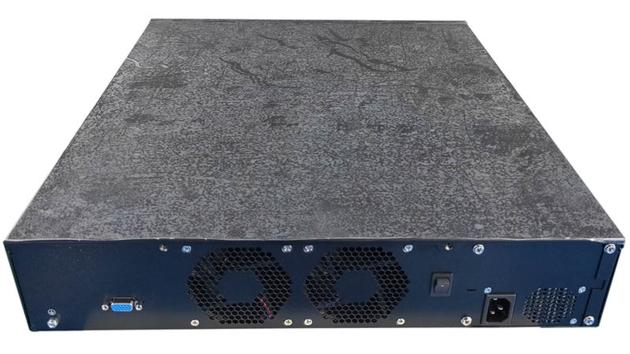

2U network appliance Supports Gen6/Gen7 Xeon E3 or i3/i5/i7 processors and four lan cards up to 32 GbE. More models list:
[F23611] 1U network appliance 6 GbE max 14GbE with 2 lan bypass
[F19611] 1u Rackmount network Appliance with 6 GbE network ports
[F23622] Rackmount network appliance based on C236 chipset Xeon or i3 i5 i7 CPU max 22GbE
[F23224] 2U network appliance max 32 GbE lan ports Supports Gen6 Gen7 Xeon E3 or i3 i5 i7 processors
[F19613] Fanless network appliance max 10 GbE
[F19401] Desktop network appliance with 4GbE optional a switch lan cards
|
