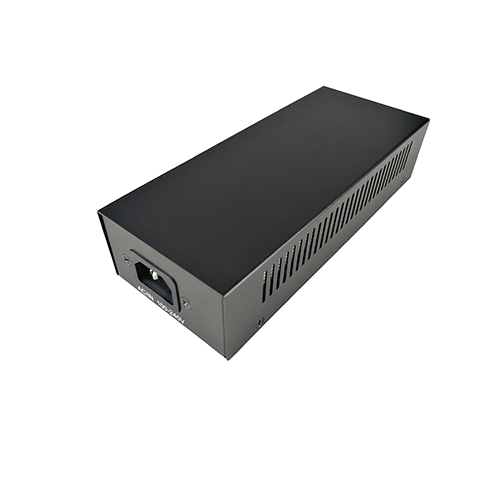

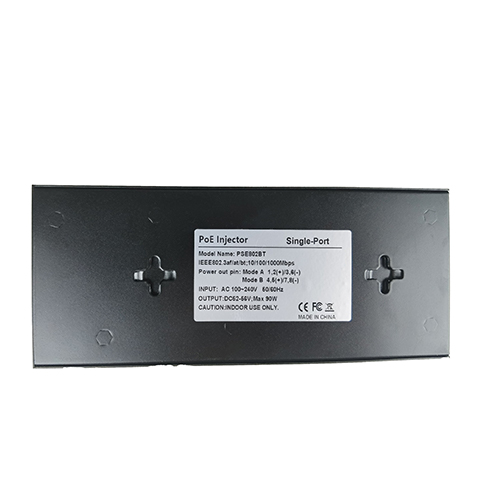

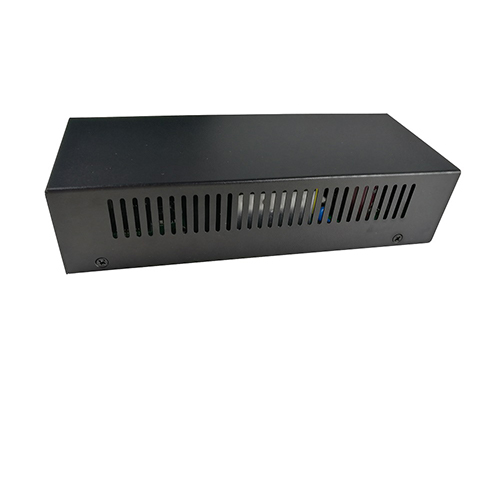

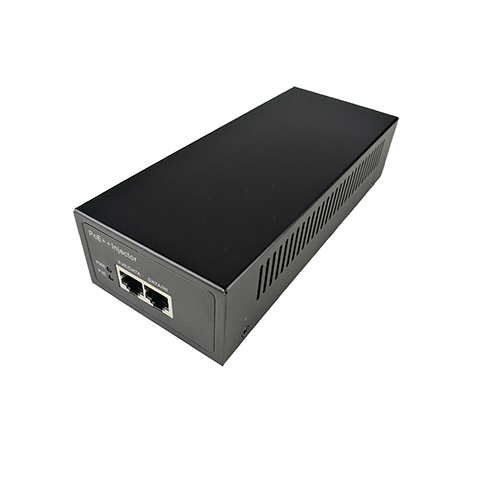

lglguo pse802bt Gigabit Poe injector
| Price: | US$ 18.5 / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT |
| Port of Export: | YANTIAN |
Product Details
| Model No.: | PSE802BT | Brand Name: | LGLGUO |
|---|
| Certification: | CE.FCC |
|---|---|
| Specification: |
Standard: IEEE802.3af/at/bt
Number of ports: 1 Passing data rate: 10/100/1000 Mbps Pin assignment and polarity: 1,2,4,5+/3,6,7,8- Output power supply voltage: 52-57vdc User port power: maximum 90W AC input voltage: 100 to 240 VAC AC frequency: 50 to 60 Hz Bare metal size: 188 *78* 44 mm Package size: 210*125*55mm Weight 0.5kg Indicator: AC power (green) POE (yellow) Connectors: shielded RJ-45, EIA 568a and 568B Installation structure: wall mounted Operating temperature: -20 ® - 50 ® C Storage temperature: -40 ® - 85 ® C Storage humidity: maximum 95%, non condensing Working height: – 1000 to 10000 feet (– 304.8 to 3048 meters) RoHS, CE, FCC compliant Electromagnetic emission and immunity: FCC Part 15, class B EN 55032 EN 55035 Safety certification en IEC 62368-1 |
Packaging & Delivery
| Packaging: | standard |
|---|---|
| Delivery/Lead Time: | express |
| Production Capacity: | 10000 |
Product Description
Product Overview
PSE802BT single port Gigabit Ethernet power supply equipment is suitable for indoor use. It can work normally at 100vac ~ 240VAC input voltage. The power supply is connected with the network terminal equipment through super class 5 cables. It has an Ethernet data port and an output port after data and power synthesis. The equipment can provide Poe power supply application conforming to ieee802.3af/at/bt international standard for one-way Ethernet equipment, such as advertising machine, small base station, switch, wireless AP, industrial network terminal, network camera, etc. Meet the requirements of providing efficient engineering solutions in places where power cannot be provided at the remote end or where Ethernet network cable power supply is used to improve system reliability and simplify equipment installation..
PSE802BT Features
• 4-Pair power up to 90W
• IEEE 802.3bt compliant - higher power
• compatible with all IEEE 802.3at, 802.3af and legacy power supply devices
• safety: low power devices only receive the required power, and 2 pairs of PDS receive power through 2 pairs
• Ethernet power supply is safe and reliable
• automatic detection and protection of non-standard Ethernet terminals
• support for 10/100/1000baset applications
• compact design for easy installation of WLAN access points
|
