lcd display unit 150W CO2 laser cuttting power supply

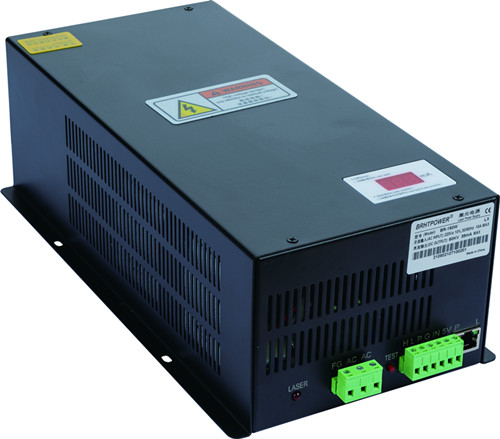

.BR-150W Laser Power Supplies for CO2 tube
Feature:
1. The power supply box for 185cm tube adopts ordinary H/L/P/G/IN/5V to receive laser control signal. And it uses black steel case
2. The laser power control is simple, the power supply for 185cm tube can use 0-5V signal to control the laser power. Also this analog signal power supply box uses the PWM (pulse width modulation) signal for laser power control too.
3. This analog signal power supply box has easy and simple control method which uses high and low level for laser power control. The use of TTL-level control can realize start and stop. At the same time the 150w power supply box has a protection switch, testing is made by external water and ventilation.
4. This 150w power supply box have stable working performance: Each power supply box for 185cm tube has been much more testing procedures and under full load high temperature (52~55 degrees celsius) 24 hours of aging, which ensure the stability of each analog signal power supply box.
5.The 150w power supply box has built-in network port and it can be connected with LCD display module by cable, The LCD module can show 1analog signal power supply box's output current,working status and fault code. Also the output current can be adjusted by potentiometer.
6. The 150w power supply box has good protection function: The analog signal power supply box have open circuit protection to make this 150W power supply work for a short time in the open state, so as to make it avoid the laser tube damage.
 7. The analog signal power supply box has good compatibility : The power supply box for 185cm tube can match with most brand 1850mm or 20000mm 150W or 180W glass laser tube,besides this feature, the analog signal power supply box also has strong adaptability and fast response, engraving or cutting benefits good effect.
