eye drops filling machine

10ml eye drops glass/pet bottling capping machine liquid filling machine
haochao manufacture direct sale eyed10ml eye drops glass/pet bottling capping machine E-liquid filling machinerop filling stoppering capping machine mini bottle filling machine with CE approved
process:


bottle feeder-filling/capping machine-labeing machine

bottle feeder

Automatic bottle unscrambler is suitable for automatic arrangement and rank for all kinds of impact resistant containers(round and square bottle) it is mainly used in pharmaceutical food and relevant industry, just for plastic bottles

The speed of the equipment is quick and steady, the qualified rang is high , simple operation easy to grasp
2, automatic stopping when bottles are full
3, automatic starting when bottles are lacked on the blet convey

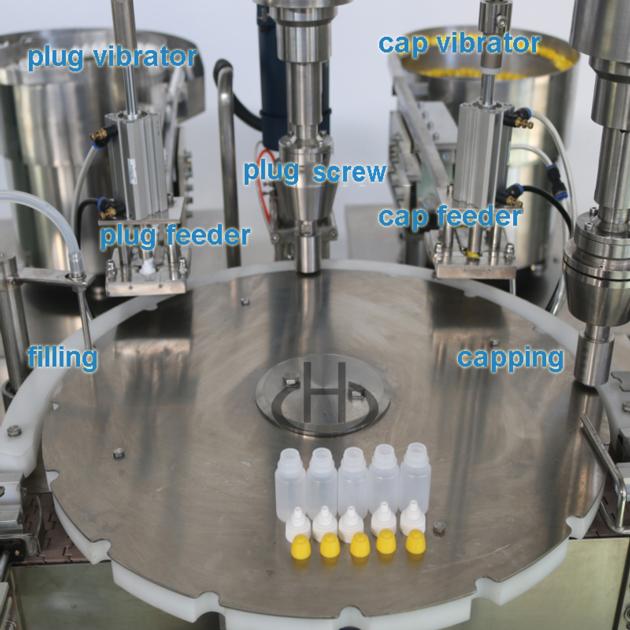

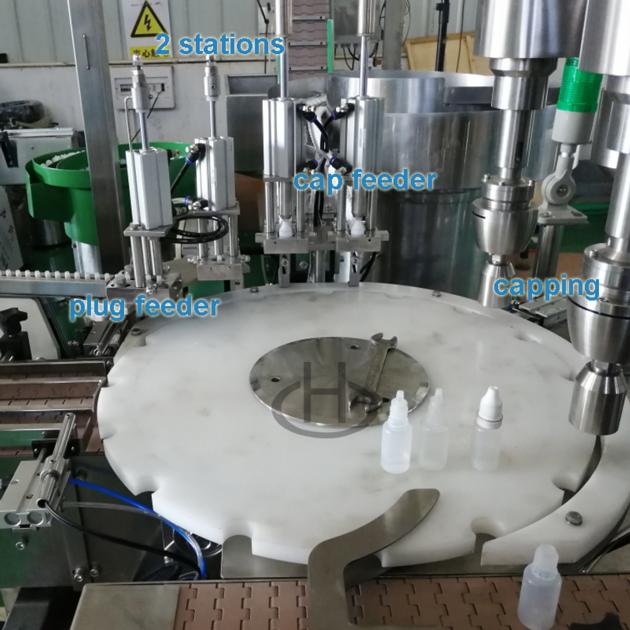

filling/capping machine

This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--3
0ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down
;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no
filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The
machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

Characteristic:
1,Man-machine dialogue system setting,visual convenient operation ,accurate filling level.
2,the mainframe running speed is frequency conversion.
3,the product quantity can be controlled.
4,Multi-failure prompt function (such as no filling and no inserting plug etc).


Model
HCGX-60
Filling volume
2-30ml
loading error
≤ ¯1%
Rotation (rolling) Cover pass rate
≥99%
Output
30-50BPM 60-90BPM
Filling way Auger filling Power supply
220V/50Hz or custmize
Power
2.0 kw
Weight
1200 kg
labeing machine
haochao manufacture direct sale eyedrop filling stoppering capping machine mini bottle filling machine with CE approved
It is intended mainly for sticking label outside the side face of round or quadrate bottles, the machine words stably and reliably , which leads to smooth labels, clearly printed dates and batch numbers(the printer allows three rows of characters) this machine is provided with a multiple control system, which assures automatic stop at the lacking or breaking of labels as well as at the lacking of bottles, this product conforms to the specification of GMP absolutely, which is widely used in pharmaceutical, foods and chemical industries.

Labeling exact and high precision
No bottle no labeling ,it can monitor
And correct automatically if there will be no label
This machine can be used not only single but also joining in automatic packing line

Productivity：0-100
Bottle diameterΦ20-Φ100
Labeling precision≤¯1mm
Label length 20-200mm
Label width10-100mm
Power 0.5kw
Power supply：220V/50hz
Weight 250kg
Dimension ：2000*650*1500
