ZRsuns black color 80W CO2 laser power source for glass co2 tube
| Price: | US$ 89 / Piece |
|---|---|
| Minimum Order: | 50 |
| Payment Terms: | western union t/t |
| Port of Export: | qingdao china |
Product Details
| Model No.: | BR-80W CO2 laser power supply | Brand Name: | zrsuns |
|---|
| Certification: | ce |
|---|---|
| Specification: |
Specification
lnput Input voltage AC220V¯10% (AC110V specified while order) AC frequency 47~440HZ Maximum input power 750W Maximum input current 3.4A Output Maximum output voltage 32KV Maximum output current 33mA (depending on the laser tubes of different manufacturers) Efficiency More than 90% (Full load) Response speed Not more than 1ms Control lnterace TTL multilevel switching control,effective level can be high and low selection (see control wining diagram) Insulation lnput-output AC 1500V 1 minutes not more than 10mA lnput-shell AC 1500V 1 minutes not more than10mA Output-shell Connection Open Circuit Protection Can be short circuit (requires a good grounding shell,while avoiding the positive electrode and the shell between the arc) Environmental Requested Working temperature -10℃~50℃ Storage of temperature -20℃~75℃ Relative Humidity Maximum 85%RH (non-condensing) Altitude 100,000 feet of work 200,000 feet of storage,dose not work Cooling methods Forced air cooling (fan cooling) Dimensions (LxWxH) 283mmx178mmx106mm |
Packaging & Delivery
| Packaging: | carton and foam |
|---|---|
| Delivery/Lead Time: | 3-4 working days after payment received |
| Production Capacity: | 4000pcs each month |
Product Description

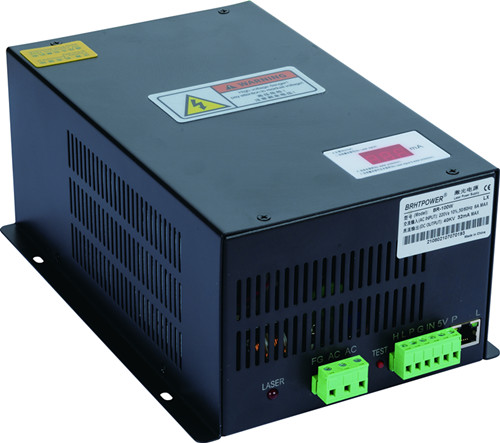

BR-80W CO2 LASER PSUs
Feature:
1.This HV PSU laser power supply has stable working performance: Each eighty watt CO2 laser power supply have been much more testing procedures and under full load high temperature (52~55 degrees celsius) 24 hours of aging, which ensure the stability of each eighty watt CO2 laser power supply.
2.The black color laser power supply uses ordinary H/L/P/G/IN/5V as laser control signal. And it uses black steel case
3.The output of laser power control is simple, the black color laser power supply can use 0-5V or PWM signal for laser power control.
4.This HV PSU laser power supply has easy control: The eighty watt laser power supply adopts high or low level for control. The use of TTL-level control can realize start and stop quickly. At the same time the display screen add a protection switch, testing is made by external water and ventilation.
5. The HV PSU laser power supply has good compatibility : This display screen laser power supply can work with most brand 125cm,140cm or 145cm 80Watt or 90Watt glass laser tube,besides this feature, the black color laser power supply also has strong adaptability and fast response, engraving or cutting benefits good effect.
6.The HV PSU laser power supply has good protection feature: The eighty watt laser power supply has open circuit protection to make the display screen laser power supply to short-term work in the open state, so as to make it avoid the laser tube broken.
|
