ZRsuns AC220/110V 40watt CO2 laser power supplies
| Price: | US$ 56 / Piece |
|---|---|
| Minimum Order: | 30 |
| Payment Terms: | T/T WESTERN UNION |
| Port of Export: | Qingdao,China |
Product Details
| Model No.: | ZR-40W CO2 laser power supply | Brand Name: | zrsuns |
|---|
| Certification: | CE UL |
|---|---|
| Specification: |
Specification lnput Input voltage AC220V¯10% (AC110V specified while order) AC frequency 47~440HZ Maximum input power 350W Maximum input current 1.5A Output Maximum output voltage 25KV Maximum output current 24mA (depending on the laser tubes of different manufacturers) Efficiency More than 90% (Full load) Response speed Not more than 1ms Control lnterace TTL multilevel switching control,effective level can be high and low selection (see control wining diagram) Insulation lnput-output AC 1500V 1 minutes not more than 10mA lnput-shell AC 1500V 1 minutes not more than10mA Output-shell Connection Open Circuit Protection Can be short circuit (requires a good grounding shell,while avoiding the positive electrode and the shell between the arc) Environmental Requested Working temperature -10℃~50℃ Storage of temperature -20℃~75℃ Relative Humidity Maximum 85%RH (non-condensing) Altitude 100,000 feet of work 200,000 feet of storage,dose not work Cooling methods Forced air cooling (fan cooling) Dimensions (LxWxH) 163mmx143mmx83mm |
Packaging & Delivery
| Packaging: | carton and foam |
|---|---|
| Delivery/Lead Time: | 3-4 working days after payment received |
| Production Capacity: | 4000PCS each month |
Product Description

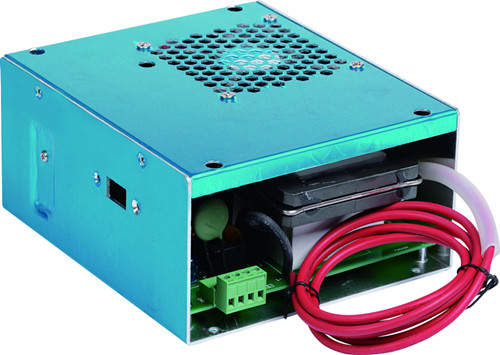

.ZR-40WA CO2 laser power supplies
Feature
1.Because of many protect function, this green signal terminal laser power source dramatically lengthen the lifetime of glass type CO2 tube.
2. The blue laser power source has open circuit protection: Under the condition of good protective earth, the 40watt laser power supply can work in open-circuit for a short time, which could avoid the damage to laser power supply.
3.Good compatibility: This 40w laser power source can be applicable to most brands of 30Watt, 40Watt, 50Watt CO2 laser tube made by different factories.
4. This blue laser power source has fast response speed and effect.
5. The green signal terminal laser power source has feedback interface which can be used in closed-loop control and testing the working current of laser.
6.The Co2 laser power source adds a new function, that is timely scene judging which part is damaged on laser tube or laser power supply
7.Easy Control: The start and stop of Co2 laser power can be easily controlled by TTL level on this 40W laser power supply. And it has protection switch to test the external water, ventilation, etc.
8.Easy control of laser power: Both 0-5V analog signal and PWM signal can control the laser power on this 40w laser power source.
9.Application: Acrylic sculpture, cut; Fabric sculpture, cut; Rubber sheet sculpture, cut, etc.
10.This 40 watt CO2 power supply has an aluminum alloy housing and a dedicated interface for the stamp engraving machine: G/P/L/G/IN/5V. In addition, it also has; DC24V/5V output
11. This ZR-40WA CO2 laser power supply adopts ordinary H/L/P/G/IN/5V as control signal output interface and uses blue aluminum case.
|
