ZRsuns 50W CO2 laser power supply for 1000mm CO2 tube
| Price: | US$ 69 |
|---|---|
| Minimum Order: | 30 |
| Payment Terms: | t/t western union |
| Port of Export: |
Product Details
| Model No.: | ZR-50W CO2 laser power supply | Brand Name: | ZRsuns |
|---|
| Certification: | 4000PCS each month |
|---|---|
| Specification: |
Specification
lnput Input voltage AC220V¯10% (AC110V specified while order) AC frequency 47~440HZ Maximum input power 370W Maximum input current 1.7A Output Maximum output voltage 25KV Maximum output current 25mA (depending on the laser tubes of different manufacturers) Efficiency More than 90% (Full load) Response speed Not more than 1ms Control lnterace TTL multilevel switching control,effective level can be high and low selection (see control wining diagram) Insulation lnput-output AC 1500V 1 minutes not more than 10mA lnput-shell AC 1500V 1 minutes not more than10mA Output-shell Connection Open Circuit Protection Can be short circuit (requires a good grounding shell,while avoiding the positive electrode and the shell between the arc) Environmental Requested Working temperature -10℃~50℃ Storage of temperature -20℃~75℃ Relative Humidity Maximum 85%RH (non-condensing) Altitude 100,000 feet of work 200,000 feet of storage,dose not work Cooling methods Forced air cooling (fan cooling) Dimensions (LxWxH) 162mmx145mmx97mm |
Packaging & Delivery
| Packaging: | carton and foam |
|---|---|
| Delivery/Lead Time: | 3-4 working days after payment received |
| Production Capacity: |
Product Description

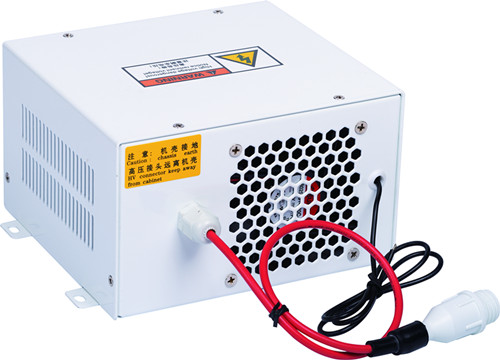

ZR-50W CO2 power supplies
Feature
1. This ZR-50W CO2 power supply adopts G/P/L/G/IN/5V as control signal output port with 5V/24V output and use gray aluminum case.
2. This 50w laser power supply has stable performance: Each co2 power supply has been much more rigorous testing procedures, under full load high temperature (52~55 degrees Celsius) 24 hours of aging, to ensure the stability of each50w laser power supply.
3. Laser power control is simple on this 50w laser power supply, you can use 0 ~ 5V analog signal control the laser power, you can also use the PWM (pulse width modulation) signal to control output laser power.
4. Good compatibility: This PWM/0-5V laser power supply can match with most brand 1000mm 50W CO2 laser tube and it also has a strong adaptability and fast response, engraving, cutting advantages of good effect.
5. Control is simple: This co2 laser power supply selects high or low level control, the use of TTL-level control of the laser can start and stop. At the same time it increases the protection switch, testing is through the external water and ventilation on this PWM/0-5V laser power source.
6. Protection function: This PWM/0-5V laser power supply has open circuit protection: Under the condition of good protective earth, the50w laser power supply can work in open-circuit for a short time, which could avoid the damage to this PWM/0-5V laser power supply.
|
