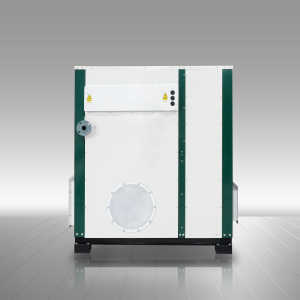

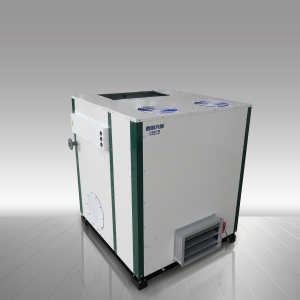

ZL-3 model steam air heater with upper outlet and lower inlet

ZL-3 steam air heater is consists of 9 parts: steel-aluminum radiator fin tube + electric steam valve + drain valve + insulation box + fan + Fresh air damper + waste heat recovery device + dehumidification fan + electric control system. It is specially designed for supporting downflow drying room/heating rooms. After convert the outside steam heat to heat inside the insulation box through by the fin tube, it²s mixing with recycle or fresh air, under the action of the fan, it is discharged from the upper outlet into the drying room or heating space. Then cooled air pass through the lower air outlet for secondary heating and continuous circulation. And when the humidity of circulating air reaches the emission standard, the dehumidification fan and fresh air damper will start simultaneously. The exhausted moisture and fresh air implement sufficient heat exchange in the waste heat recovery device, so the moisture is discharged and the fresh air with recovered heat enter the circulation system.Advantages/features
1. Simple structure and easy installation
2. Large air volume and small wind temperature fluctuation
3. Stainless steel electric heating finned tube, durable
4. Steel-aluminum finned tubes, high heat exchange efficiency. The base tube is made of 8163 seamless tube which is pressure-resistant and durable;
5. Electric steam valve controls the amount of inlet, automatically cuts off or opens according to the set temperature, so that can accurately controls the temperature.
6．High temperature and high humidity resistant fan with IP54 protection rating and H-class insulation rating.
7. Integrating the dehumidification and fresh air system, heat loss is extremely small through by the waste heat recovery device.
8. Automatically replenish fresh air
