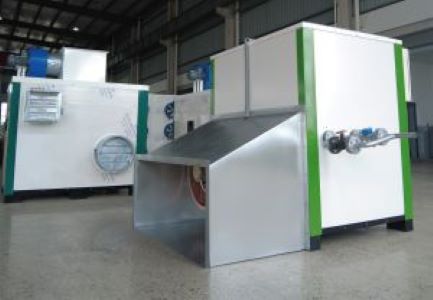

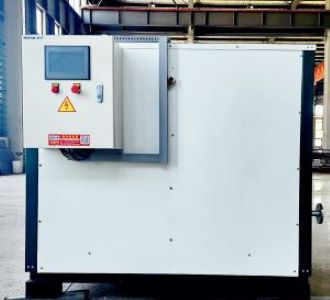

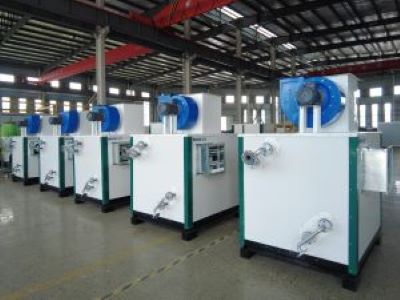

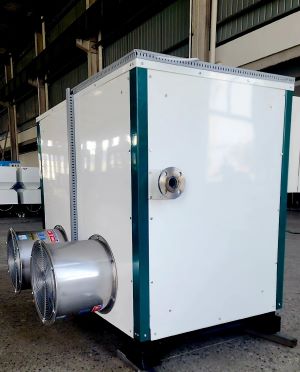

ZL-1 model Steam air heater with upper inlet and lower outlet

ZL-1 steam air heater is consists of 6 parts: steel-aluminum radiator fin tube + electric steam valve + drain valve + insulation box + fan + electric control system. Steam passes the though the fin tube, dissipating heat to the insulation box, mixing and heating the fresh or recycle air to setting temperature, fans bring this hot air into drying room or heating room to be used for dehydration, dehumidification or heating.
4. Advantages/features
1. Simple structure, beautiful appearance, low cost
2. Steel-aluminum finned tubes, high heat exchange efficiency. The base tube is made of 8163 seamless tube which is pressure-resistant and durable;
3. Electric steam valve controls the amount of inlet, automatically cuts off or opens according to the set temperature, so that can accurately controls the temperature.
4. Large air volume and small wind temperature fluctuation
5. High-density fire-resistant rock wool insulation box to avoiding heat loss
6. High temperature and high humidity resistant fan with IP54 protection rating and H-class insulation rating.
