ZB520A Toilet Paper Roll Packing Machine

This roll paper box packaging machine adopts 5-axis servo control technology, with fast response speed and precise movement.

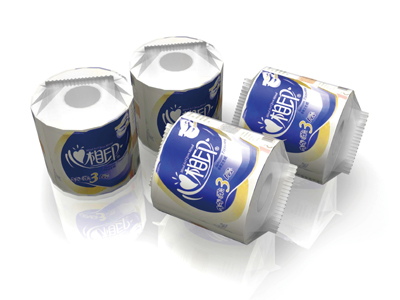

It is suitable for packing single toilet rolls, double rolls, four rolls and double kitchen rolls.

The middle seal adopts an instant heating method and temperature control module control;

The middle seal temperature is automatically adjusted according to different packaging speeds;

The shutdown film will not burn the packaging film and the sealing effect is firm and beautiful;

The film tightening device makes the packaging film fit perfectly with the product, and the overall product packaging is compact and beautiful;

The knife seal has automatic reset function in case of cutting failure;

With anti-air bag function (that is, no film without material);

Large LCD touch screen display and parameter setting, easy to change specifications;
Specifications of ZB520A Paper Roll Packing Machine
Model ZB520A
Packing Size Diameter 90-130(mm)
Length 90-230(mm)
Packing Film Max Diameter for the Film Roll φ400 mm
Max Film Width 700mm
Applicable Film Thickness 0.018mm—0.03mm；
Applicable Material SPP, KPP, OPP
Packing Speed 30-80PACKS/MINUTE
General Power 15.5Kw
Machine Weight 2500(kg)
Machine Dimension Size L5000mm*W3450mm*H1700(mm)
Power Type 3 PHASE 4 WIRE 380V 50HZ
Compressed Air Supply 6kg/cm2  0.25m3/min
Machine Noise ≤75（dB）

Soontrue machinery is specialized in producing toilet paper roll packing machines, our team of experts is committed to improving the quality of the machine to ensure an excellent experience for customers.

Soontrue Machinery was built in 1993, it has become a larger and stronger group, Soontrue is the largest manufacturers of tissue packaging machinery in China. We have the most advanced tissue paper manufacturing plant in China.

Shanghai Soontrue Group consists of Foshan Soontrue Machinery Equipment Co.,Ltd., Shanghai Soontrue Machinery Equipment Co.,Ltd., Chengdu Soontrue Machinery Equipment Co.,Ltd.

With a good relationship with world-famous brands, we keep innovating our machines and improve the reliability and stability. Over the past years, we have successfully provided solutions and services for customers from over 50 countries and regions around the world.
