Yinuolink openwrt high quality qca9531 2.4g wireless router module support 2T2R

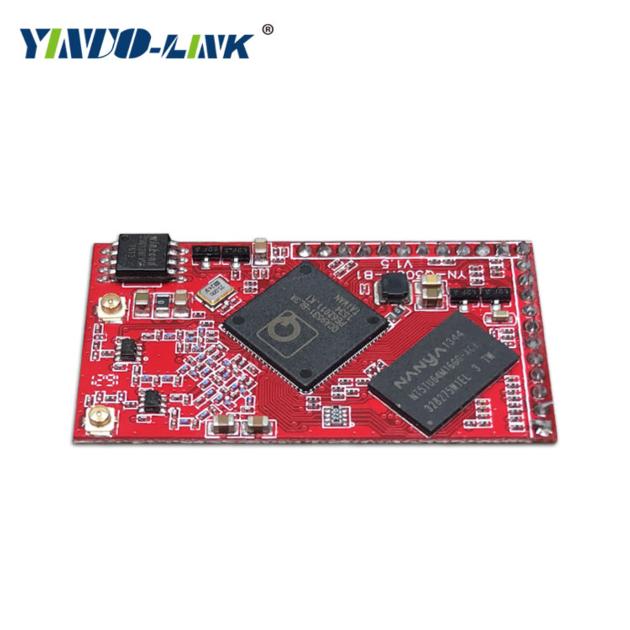

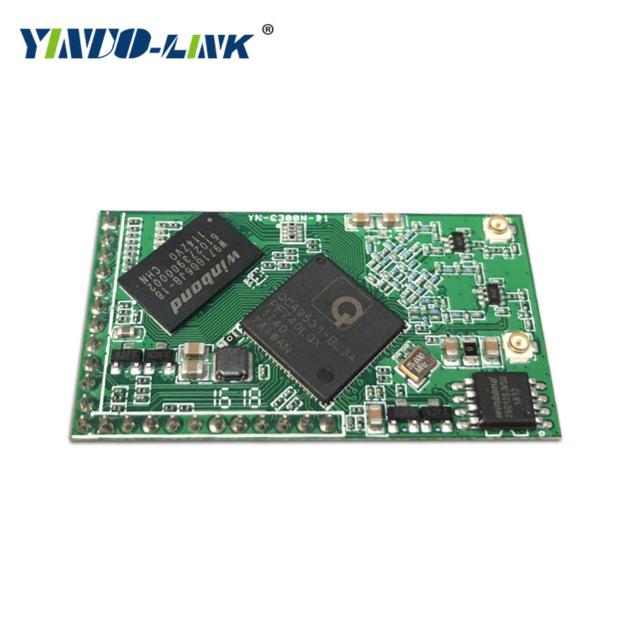

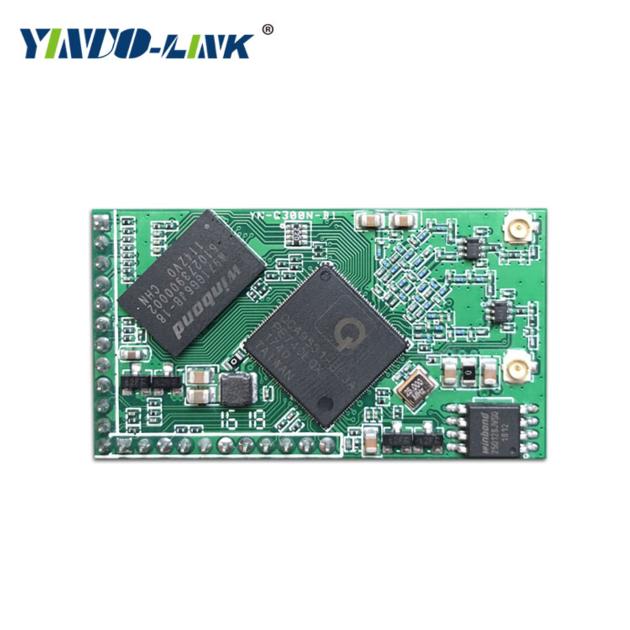

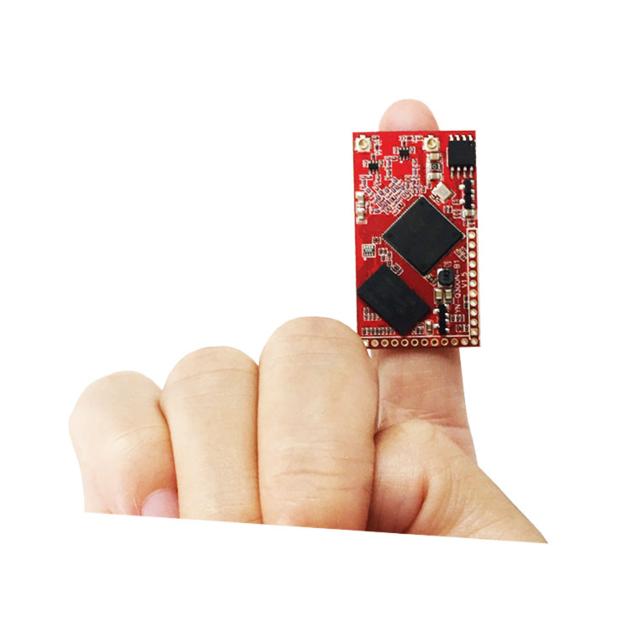

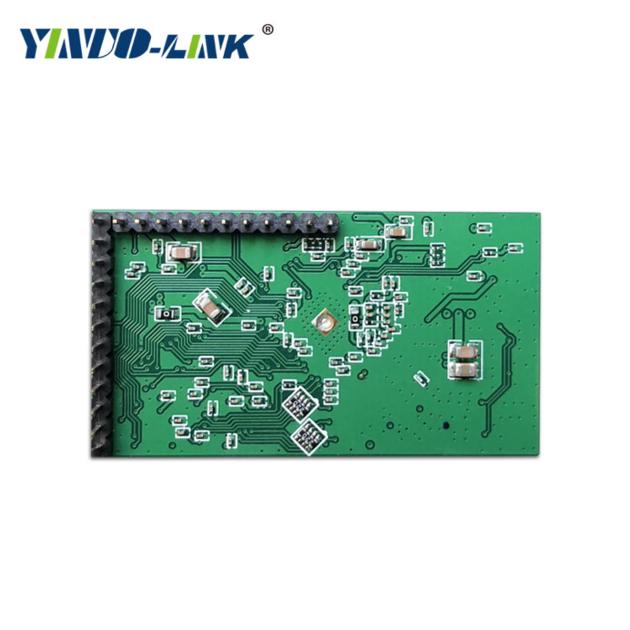

YN-Q300N-B1 is the WiFi Router Module based on QCA9531 chip design, with high-performance and small size design. This item supports large capacity DDR2 and high speed SPI Flash, can connected to the motherboard by "Pin". The user can make multiplex structural design according to the mold ID and board type. It complies with IEEE 802.11n, IEEE 802.11g and IEEE 802.11b standards, adopts 2x2 MIMO structure. This unit can also supports WiFi signal multiplexing transceiver and its Wireless Signal Rates can be up to 300Mbps. It provides 1 USB2.0 port, 2 10/100M PHY and several GPIO ports. It reserves the UART communication interface suiting for further development.

YN-Q300N-B1 adopts 2x2 MIMO (Multiple input multiple output) architecture, wireless signal multiplexing, transmission rate up to 300Mbps; provides two 10 / 100M PHY interface, a USB2.0 and GPIO interface, extended powerful, widely used in wireless mobile hard disk, wireless high-definition receiving box, network camera, air conditioning or TV embedded wireless applications and other products. Customers can either select an onboard antenna or an external antenna. The module provides a complete network interface. You can achieve WiFi AP, WiFi STA, WiFi Repeater and other functions.
