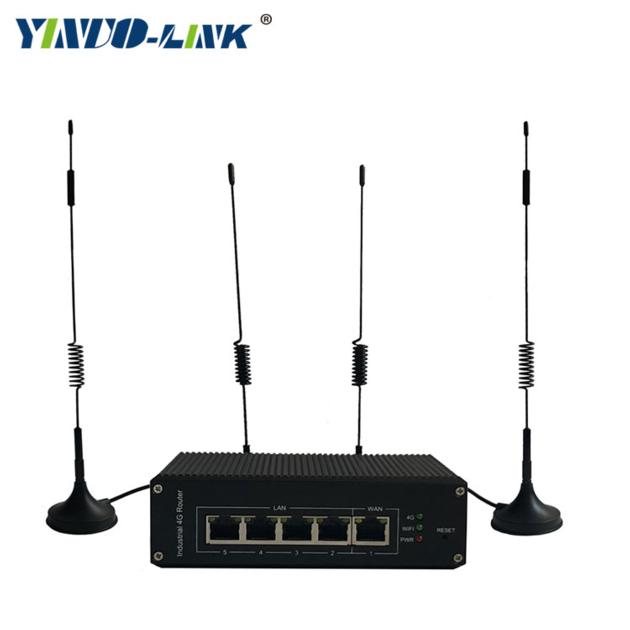

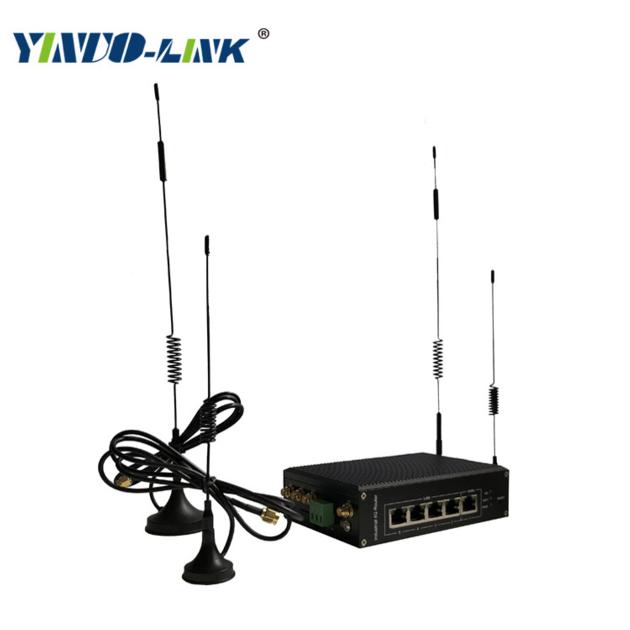

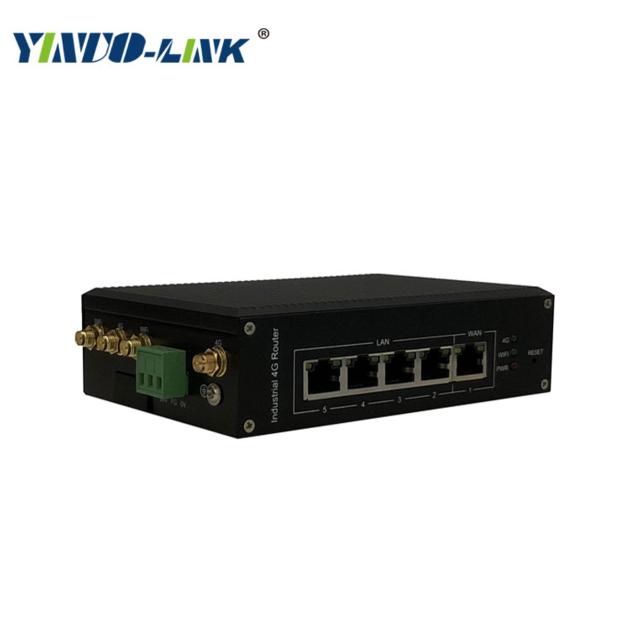

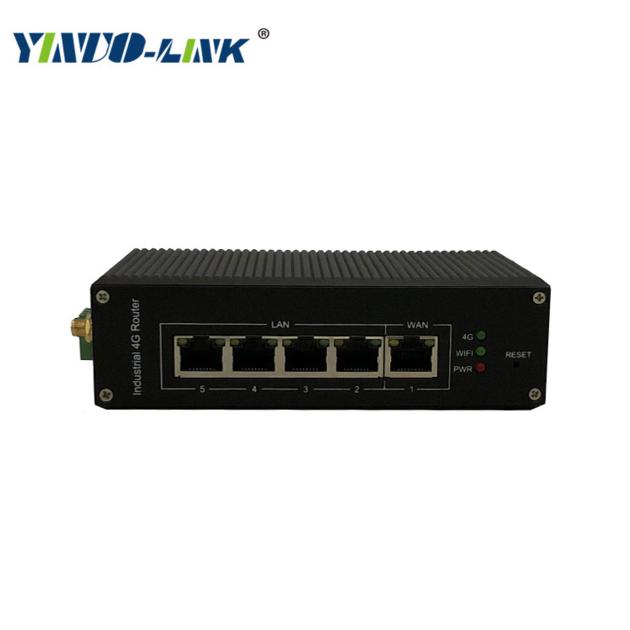

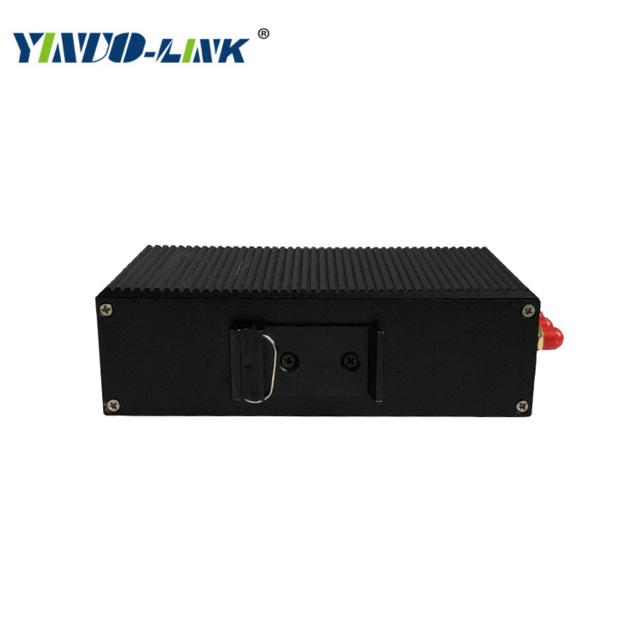

Yinuo-link firewall high power router industrial din rail 4G wifi router support openwrt

♦ Complies with IEEE 802.11n, IEEE 802.11g/b, and IEEE 802.3/3u standards

♦ Wireless transmission rate up to 300M

♦ 1 WAN port, 4 Fast LAN ports, all support auto-negotiation and port auto-flip

♦ Transmit power up to 27dBm (max) with SKYWORKS and two SE2576

♦ The power network port SIM card holder are with static and surge protection

♦ Supports hard watchdog design

♦ Support WDS wireless bridging, easy expansion of wireless networks

♦ Supports broadband access methods such as PPPoE, dynamic IP, and static IP

♦ Automatic dialing, on-demand dialing, scheduled dialing, to meet a variety of dialing requirements

♦ Supports SSID broadcast control and MAC address-based access control list

♦ Provides 64/128/152-bit WEP encryption and supports WPA/WPA-PSK and WPA2/WPA2-PSK security mechanisms

♦ Built-in firewall, support for IP, MAC, URL filtering, can flexibly control access to the Internet and access time

♦ Built-in DHCP server can automatically and dynamically assign IP addresses

♦ All Chinese/English configuration interface, support free software upgrade

♦ Adopting the world-leading Atheros solution, the CPU is clocked at 550MHz, wireless supports 802.11N, and is perfectly compatible with third-party firmware such as OPENWRT to meet customers' secondary development

♦ Support Open-Wrt
