Wireless 4G LTE Router supports WIFI 3G with CE/RoHs
| Price: | US$ 110 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Qingdao |
Product Details
| Model No.: | USR-G806 | Brand Name: | USR IoT |
|---|
| Certification: | CE, FCC, ROHS |
|---|---|
| Specification: |
Wired Ethernet Port
WAN port WAN *1 LAN port LAN * 1 Both LAN port and WAN port with a rate of 10/100Mbps,Auto MDI/MDIX WIFI WIFI Network Support 802.11b/g/n Antenna WIFI antenna *1 Specification Interface Mini PCI-E 52PIN TD-LTE 3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps FDD-LTE 3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps WCDMA HSPA+: download rate of 21 Mbps; upload rate of 5.76 Mbps TD-SCDMA 3GPP R9: download rate of 2.8 Mbps; upload rate of 2.2 Mbps GSM/GPRS/EDGE Download rate of 384 kbps; upload rate of 128 kbps Frequency Band TD-LTE Band 38/39/40/41 FDD-LTE Band 1/3 WCDMA Band 1/8 TD-SCDMA Band 34/39 GSM/GPRS/EDGE Band 3/8 SIM card&Antenna SIM/USIM Card Standard 6 pin SIM card, 3V/1.8V SIM card Antenna 3/4G full-frequency antenna * 1 Temperature Working Temp -20¬C~ +70¬C Storage Temp -40¬C~ +75¬C Humidity Working Humidity 10%~90% Storage Humidity 5%~90% Power Supply Working Voltage DC 5~36V Working Current Average: 120mA; Max: 246mA (DC12V) |
Packaging & Delivery
| Packaging: | carton packing |
|---|---|
| Delivery/Lead Time: | 1 week |
| Production Capacity: | 1000/month |
Product Description
Wireless 4G LTE Router supports WIFI 3G with CE/RoHs

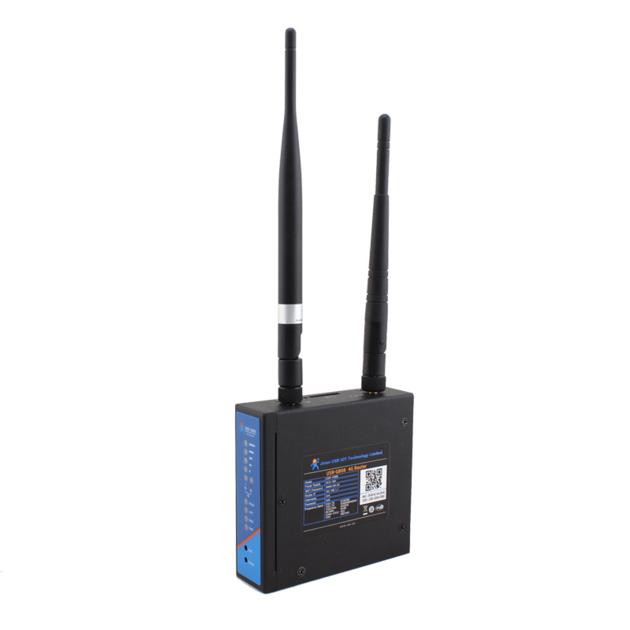

USR-G806 is a wireless 4G Lte router, which provides a solution for user's device to access 4G network.
Hardware/Software Watchdog
1 WAN port and 1 LAN port
APN&VPN (PPTP/L2TP), PPPOE
Introduction
USR-G806 is a Wireless 4G LTE Router which adopts industrial high-performance and embedded structure, and it is widely used in industrial control, smart electricity, personal health care, smart home to transmit data.
Introduction
USR-G806 is a Wireless 4G LTE Router which adopts industrial high-performance and embedded structure, and it is widely used in industrial control, smart electricity, personal health care, smart home to transmit data.
List of LTE networks: https://en.wikipedia.org/wiki/List_of_LTE_networks
Different Model for 4G LTE Router
Operation Band
Network Type G806 (Asia ) G806-E (Europe ) G806-AU ( Australia ) G806-A (AT&T)( USA )
4G FDD-LTE 1/3 1/3/5/7/8/20 1/2/3/4/5/6/7/8/28 2/4/12
TDD-LTE 38/39/40/41 38/39/40/41 40
3G WCDMA/HSPA/UMTS 1/8 1/8 1/2/5/8 2/4/5
2G GPRS/GSM/EDGE 3/8 3/8 2/3/5/8
G806-13G806-10
Features of 4G Lte Router
Point 1
Wireless
WIFI / 3G/4G
Power Supply
DC 5-36V
Frequency band
GSM/GPRS/EDGE, WCDMA, TD-LTE, FDD-LTE, TD-SCDMA
Configuration
Web page
Function
Watchdog, QOS management, DDNS, port-forwarding
Network
VPN(PPTP/L2TP), PPPOE, DHCP, Static IP
Certification
CE/RoHs
1.1*LAN,1*WAN (WAN can switch to LAN), Auto MDI/MDIX/ WIFI 802.11b/g/n
2.Restore factory setting
Point 2
1.Static Router configuration and firewall
2.Traffic service can limit the speed depends on interface
SIM Card
Standard 6 Pin SIM card, 3V/1.8V card
Work Temp
-20~70C
Working Current
Average: 120mA, Max 246mA
Application of 4G Lte Router
4G Lte Router
*Industrial, stable and reliable
Suitable for unattended environment , built-in EMC protection circuit likes ESD protection, surge protection and power anti-reverse connection.
*Safe Network deployment
Support operator’s APN modification, VPN access, built-in firewall which ensure the network safety.
|
