WiFi Module,TI CC3200 Chip
| Price: | US$ 11.8 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T, PayPal |
| Port of Export: | Qingdao |
Product Details
| Model No.: | USR-C322 | Brand Name: | USR IOT |
|---|
| Certification: | CE, FCC, RoHS |
|---|---|
| Specification: |
Low Power, Tiny Size
- Chip: TI CC3200 - Ultra low power mode, support deep dormancy |
Packaging & Delivery
| Packaging: | carton packing |
|---|---|
| Delivery/Lead Time: | 1 week |
| Production Capacity: | 1 |
Product Description

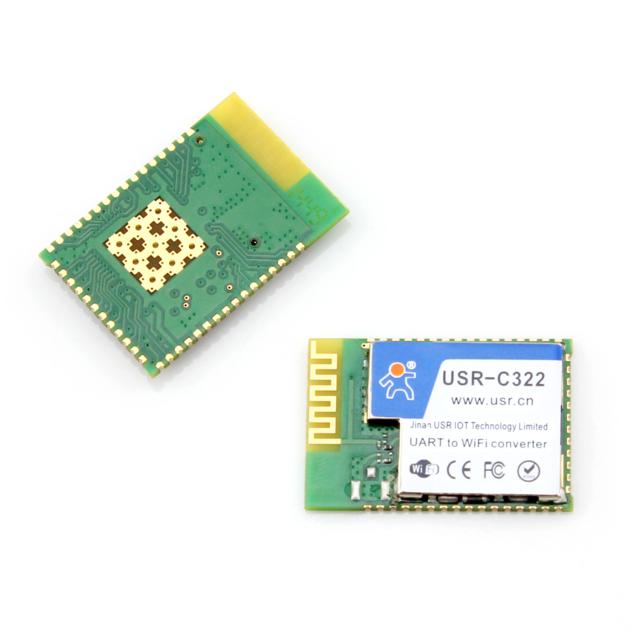

USR-C322 is a wifi module released by USR IOT,which has the features of minisize,low power and industry-grade.
The hardware of USR-C322 wifi module integrates MAC,baseband chip, RF transceiver unit and power amplifier.
USR-C322 wifi module adopts CC3200 chip of TI,which has industrial ARM Cortex-M4 core and ultra-low power operation mechanism.
And it supports WiFi protocol and TCP/IP protocol.User can achieve the function of UART devices connecting to Internet with simple configuration.
Product Features：
Support Wi-Fi 2.4 GHz 802.11 b/g/n wireless standards
Support WEP-A、WPA/WPA2 security mode
Support AP/STA working mode
Based on ARM Cortex-M4 kernel running frequency of 80 MHZ
Fully integrated serial port turn wireless TCP/UDP transmission function
Support search capabilities within the local area network (LAN) module
Support TCP/UDP Client registered package mechanism
Support usrlink Networking configuration
Support class RFC2217 automatic baud rate adaptation function
Support AT + simple instruction set configuration
Single 3.3 V power supply
Ultra low power mode, support deep dormancy
Support Internal/External(I-PEX/SMA) Antenna Option

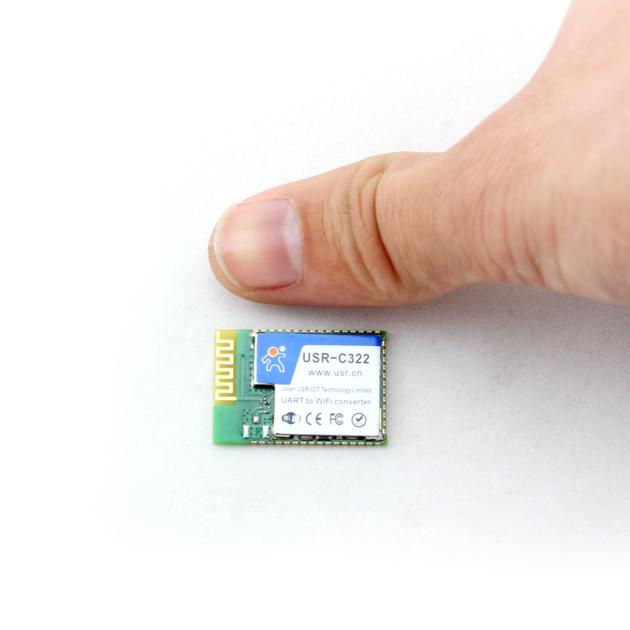

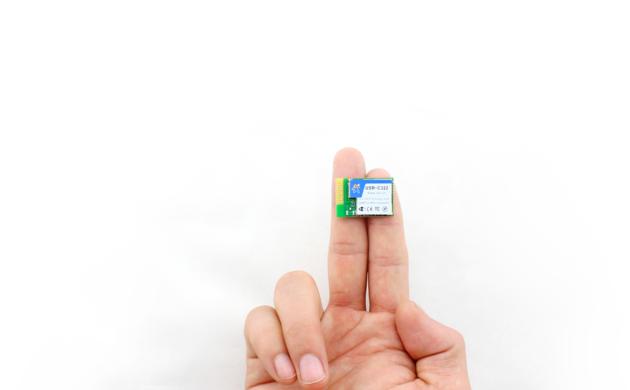

Minisize：18.22mm*26.65mm*2.8mm SMT
FCC/CE Certificated,ROHS compliant
|
