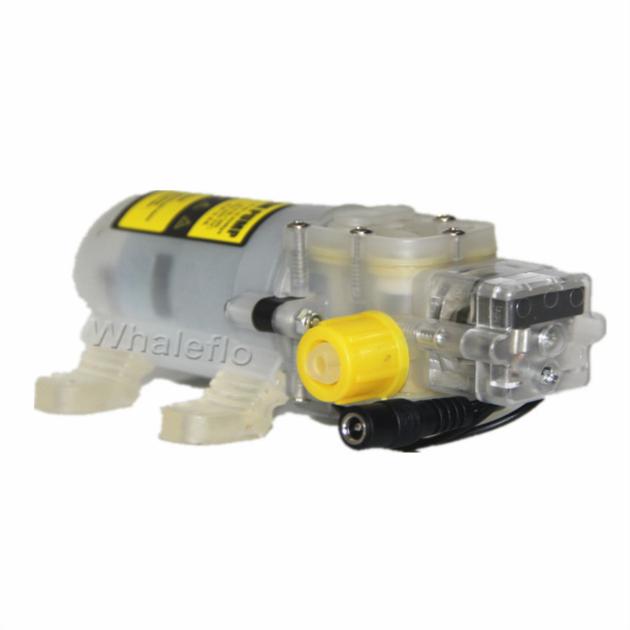

Whaleflo 30W 12V 3.8LPM Food Grade Diaphragm Pump
| Price: | US$ 12 / Unit |
|---|---|
| Minimum Order: | 100pcs |
| Payment Terms: | TT |
| Port of Export: | Xiamen |
Product Details
| Model No.: | FLO-2230 | Brand Name: | Whaleflo |
|---|
| Certification: | CE/ROHS/FDA |
|---|---|
| Specification: |
Model
Volt Power Protect valve Max.working pressure Flow rate Amps Suction Lift FLO-2230 12 30 Pressure switch 4bar/58psi 3-4LPM 2.5A 1.2M 40m FL0-2260 12 60 Pressure switch 4bar/58psi 4-5LPM 3.5A 1.5M 50m FLO-2230-1 24 30 Pressure switch 5bar/75psi 3-4LPM 1A 1.3M 45m Pump head material PC/PP/TPV(FDA)/SS 304 Pump body Pure copper motor/PC/PVC,etc. |
Packaging & Delivery
| Packaging: | 1pc/carton box |
|---|---|
| Delivery/Lead Time: | 7-30 |
| Production Capacity: | 10000pcs/month |
Product Description
Product Description
Made of food hygiene grade ABS, safe, healthy and non-toxic.
Low noise, easy installation, stable performance.
Pump with a self-priming function, very convenient to use.
Rubber bracket can absorb vibration from the pump when working.
Specs:
Barbed threaded inlet/outlet connection tubing collars
Max Flow: 1 Gallon Per Minute (GPM)
Self-Priming
Suction Ability: 5 Feet
Max Lift: 150 Feet
Food Safe Head
Temp Rating: up to 140 degrees F (Intended for cold-side transfers only)
8 ft. Power Cord
dc and AC optional (In-line On/Off Switch/0
Voltage: 24V
Current range: 1-1.5A
Weight: 1kgs
Integrated vibration dampening mounting feet
Ideal for transfer orange juice ,wine,milk,soft drink,etc
Whaleflo 30W 12V 3.8LPM Food Grade Diaphragm Pump
Whaleflo Food Grade Pump Basic information
Theory:diaphragm pump electric drive
Pump design:2 chamber diaphragm
Inlet/outlet:10mm hose barb,18mm NPT
Liquid temp:max 60℃
|
