Valve Assembly

Crankshaft assemble AH1301010200 AH36001-02.00
Crankshaft assemble AH1601010100 AH37001-01.00
Pinion Shaft assemble AH1301010300 AH36001-03.00
Pinion Shaft assemble AH1601010200 AH37001-02.00
Crossing Head Assemble AH1301010400 AH36001-04.00
Hydraulic End Assemble AH1301010500 AH36001-05A.00
Power end lubrication assembly AH1301010600 AH36001-06C.00
Base Seat AH1301010700 AH36001-07K.00
Spray Pump Assembly AH1301010800 AH36001-08C.00
Sealing washer AH10010109 AH33001-09
Breather Cap T515-1001.00 T515-1001.00
Crane AH1301011000 AH36001-10.00
Cover Plate AH1301011200 AH36001-12.00
Gasket AH13010113 AH36001-13
Oil Level Indicator AH1301011400 AH33001-18.00
Clean Out Cover(III) AH1301011500 AH33001-22.00
Sealing washer AH13010116 AH36001-19
Gasket AH13010115 AH36001-16
Rubber Strip AH1301020001 40×10×5800
Aseismic double scale pressure gauge Yk-150 ZG1 1/2″ (8700PSI 60Mpa)
Discharge bend assembly AH1001012000 AH36003-11.00
Plug screwZG1 1/2″ 520201050300400004 Q/ZB286.6
Backing ringR44 T518-5002 T58-5002
Discharge filter assembly AH1001011900 AH33014-04.00
Flange5 1/8″×35MPa T508-1002 T58-1002
Tools attachment AH1301011600 AH36001-17.00
KB-75 Pulsation Dampener AK75350100 AH33002-00A

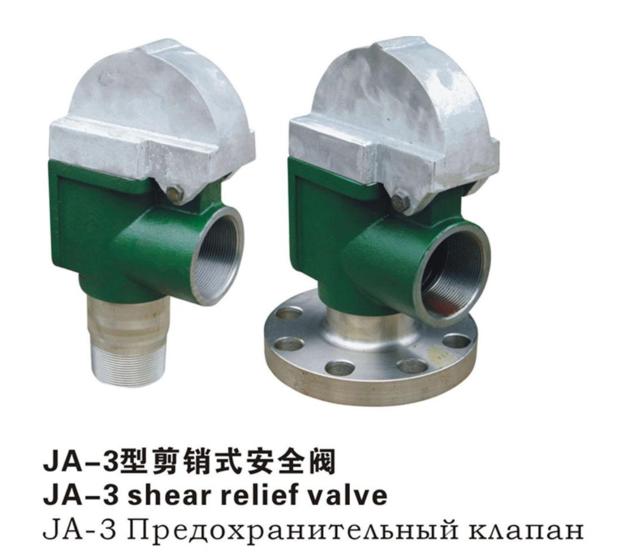

JA-3 Shear Relief Valve AH0000060100 AH33003-00
Cover Plate Assembly AH1301011800 AH36001-21B.00
Adjusting shim AH13010119 AH36001-23
Main bearing end cover AH130101020100 AH36001-02.01C.00
Main bearing set (right) AH1301010202 AH36001-02.02
Main bearing set (right) AH1601010101 AH37001-01.02
Main bearing set (left) AH1301010212 AH36001-02.13
Main bearing set (left) AH1601010105 AH37001-01.06
Hollow crank shaft AH130101021000 AH36001-02.10D.00
Hollow crank shaft AH160101010400 AH37001-01.05D.00
Pinion Shaft AH1301010302 AH36001-03.02
Pinion Shaft AH1601010201 AH37001-02.01A
Connection rod AH1301010206 AH36001-02.06
Connection rod AH1601010103 AH37001-01.04
Retainer ring AH1301010213 AH36001-02.14
Retainer ring AH1601010106 AH37001-01.07
Eccentric Bearing928/660.4QU NUP464776Q4/C9/YA4 AH1301010217 AH36001-02.19.00
Eccentric Bearing929/660.4QU, NUP464777Q4/C9YA4 AH1601010107 AH37001-01.08.00
Main bearing4053160H 24060CA/W33 AH1301010218 AH36001-02.20.00
Main bearing3003760Y 23160/W33 AH1601010108 AH37001-01.09.00
Outer race retainer AH130101020500 AH36001-02.05
Outer race retainer AH160101010200 AH37001-01.03
locating ring(I) AH1301010207 AH36001-02.07
Hollow bearing AH130101020800 AH36001-02.08A.00
locating ring(II) AH1301010209 AH36001-02.09
Bolt M39×3-6g×140 T502-3007 T52-3007
Spacer AH1301010211 AH36001-02.12
Sealing washer AH1301010203 AH36001-02.03
Inner locking ring AH1301010204 AH36001-02.04
Retainer AH1301010214 AH36001-02.15
Main bearing bolt AH1301010215 AH36001-02.16C
Shim set AH130101021600 AH36001-02.17
BoltM16×120 T502-6006K T52-6006K
BoltM39×3-6H T507-305.0 T57-3005.0
BoltM16×40 T507-7003K T57-7003K
BoltM16×45 420201070716045010 GB5780-86
BoltM16×100 T502-6004K T52-6004K
Key 2″×2″×11 3/8″ AH1301010301 AH36001-03.01
Oil Seal Wear Ring AH1301010303 AH36001-03.03
End Cover AH1301010304 AH36001-03.04
Gasket AH1301010305 AH36001-03.05
Gasket AH1301010306 AH36001-03.06
Bearing Sleeve AH1301010307 AH36001-03.07B
Race Retainer AH1301010308 AH36001-03.10
Gasket AH1301010309 AH36001-03.12
Oil Gathering Box AH130101031000 AH36001-03.13B.00
"Skeleton oil seal 9.125""X10.375""X0.625""
" AH1301010311 AH36001-03.08A
BearingNU3044X3M 4G32844H AH1301010312 AH36001-03.09
Flange AH1301010313 AH36001-03.11
Crosshead AH1301010401 AH36001-04.01A
Upper slide AH1301010402 AH36001-04.02
Gasket unit AH100101041700 AH36001-04.03A.00
Adjusting pad AH1301010403 AH36001-04.04
Packing box AH1301010404 AH36001-04.05
Gasket
Packing box end cover
