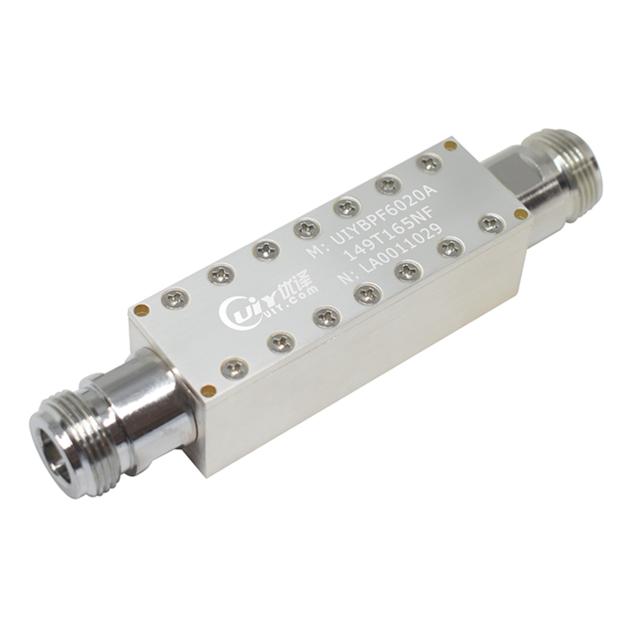

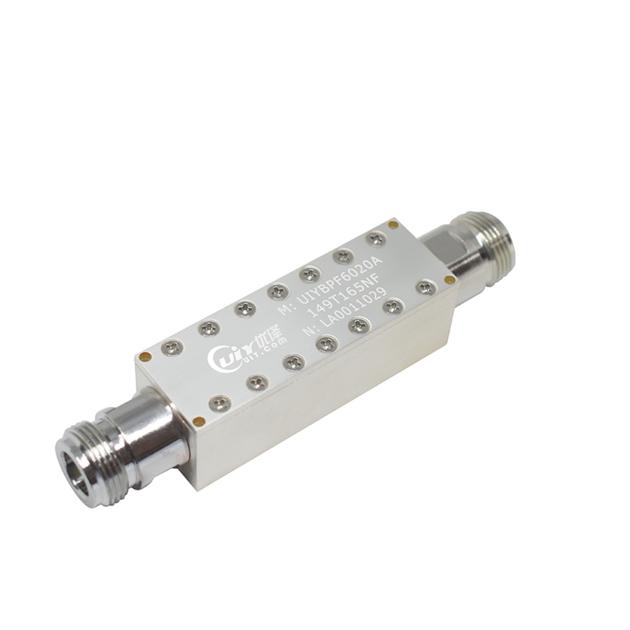

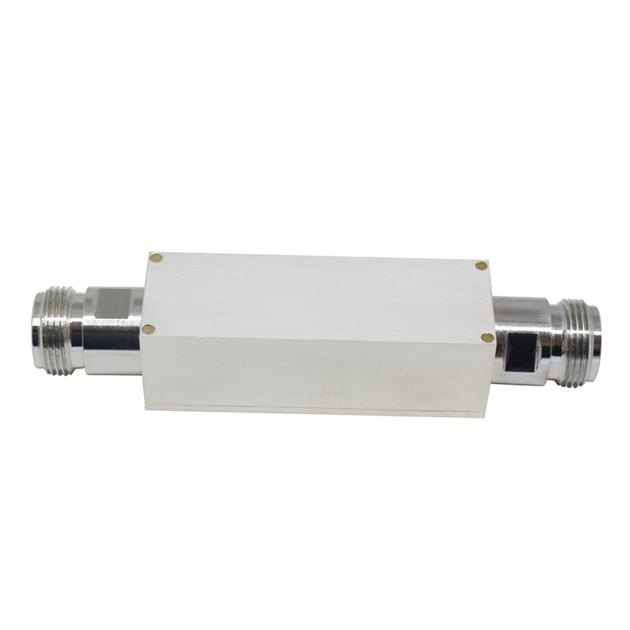

VHF RF Band Pass Filter 149~165MHz 100W N SMA
| Price: | US$ 130 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | UIYBPF6020A | Brand Name: | UIY |
|---|
| Certification: | ROHS, ISO9001, ISO14001 |
|---|---|
| Specification: |
Model Number：UIYBPF6020A

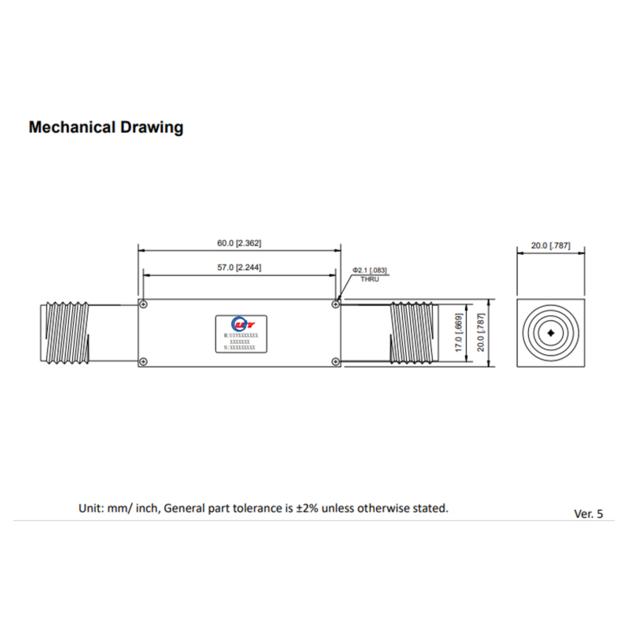

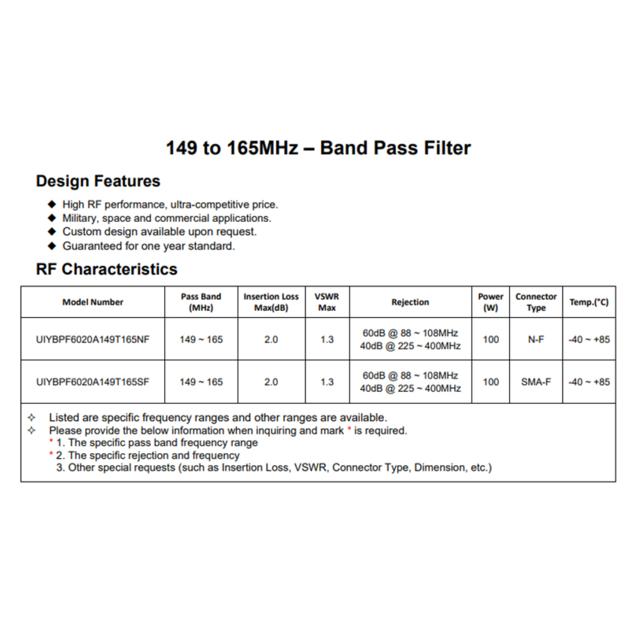

Pass Band:149~165MHz Insertion Loss: 2.0dB VSWR:1.3 Rejection:60dB@88~108MHz 40dB@225~400MHz Power:100W Connector Type: N SMA Temperature: -40~85℃ Dimension: 60*20*20mm |
Packaging & Delivery
| Packaging: | UIY Standard Carton For Standard Export Package D |
|---|---|
| Delivery/Lead Time: | 2 weeks |
| Production Capacity: | 1000pcs/month |
Product Description
Up to 20GHz.
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.
UIY Inc. provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.
Since 2003, UIY Inc. has become a critical supplier and partner to major companies serving the Aerospace, Military, Radar, Defense, Medical, Communications and Specialty Test industries.
UIY's product offerings include RF Isolators, RF Circulators, RF Filters, Power Divider / Splitter, Duplexer/Triplexer, Hybridge Combiner, Coaxial Termination, Coaxial Attenuator, Directional Coupler, Waveguide to Coaxial Adapter.
We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.
Advantages:
we offer - ROHS Compliant
we offer - HFSS Simulation
we guarantee - One Year warranty
we guarantee - Fast Delivery
we support - Contract Manufacturing
|
