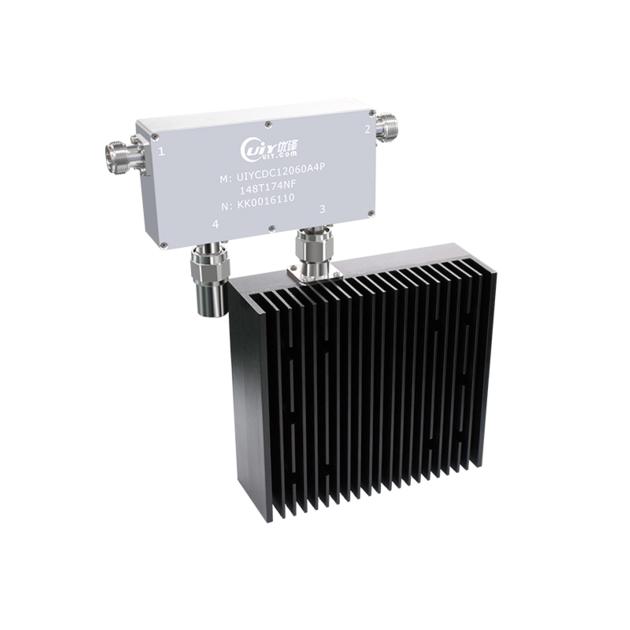

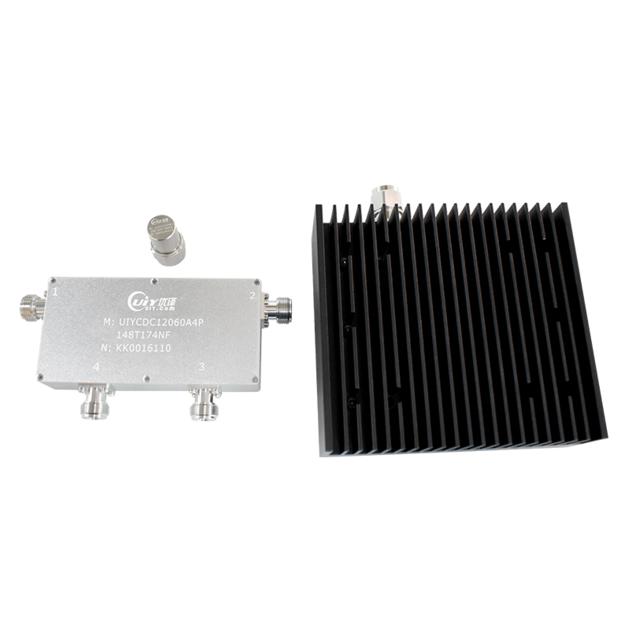

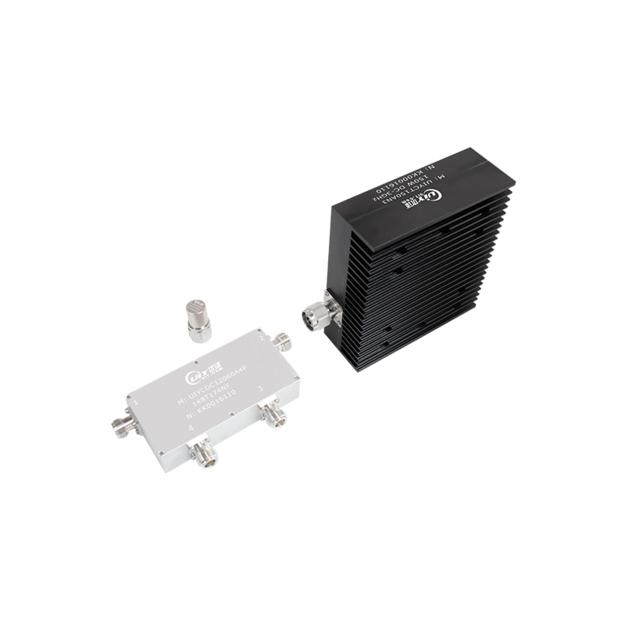

VHF 4 Port RF Dual Junction Circulator 45~270MHz
| Price: | US$ 330 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | UIYCDC12060A4P | Brand Name: | UIY |
|---|
| Certification: | ROHS, ISO9001, ISO14001 |
|---|---|
| Specification: |
Model Number:UIYCDC12060A4P

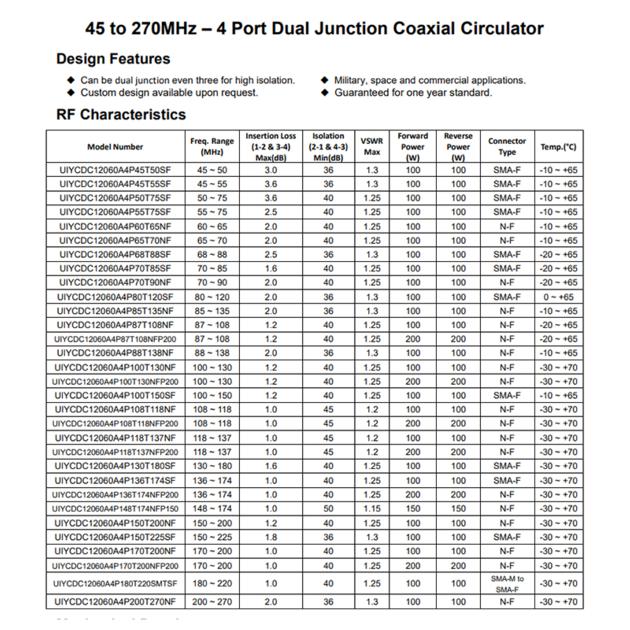

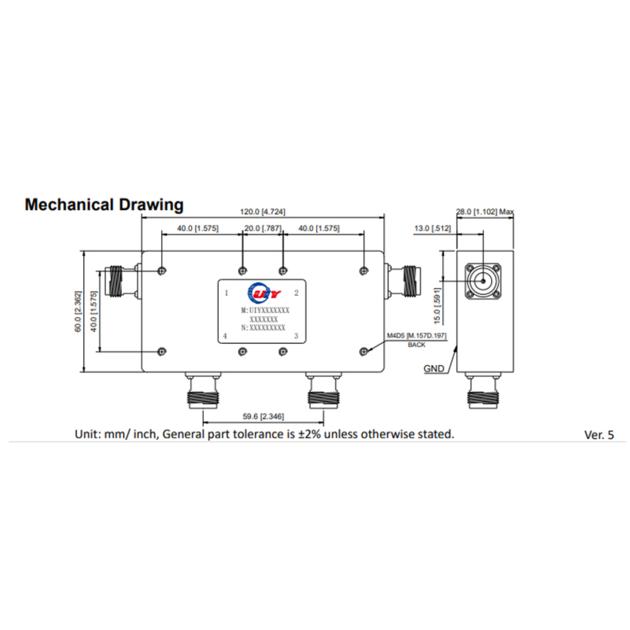

Frequency Range:45~270MHz Ports:4 Port Bandwidth:40% Insertion loss:0.8dB Isolation:50 dB VSWR:1.15 Forward Power:200W Reverse Power:200W Connector Type: N SMA Dimension:120*60*28mm |
Packaging & Delivery
| Packaging: | UIY Standard Carton For Standard Export Package D |
|---|---|
| Delivery/Lead Time: | 4 weeks |
| Production Capacity: | 1000pcs/month |
Product Description
UIY Inc. provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.
Since 2003, UIY Inc. has become a critical supplier and partner to major companies serving the Aerospace, Military, Radar, Defense, Medical, Communications and Specialty Test industries.
UIY's product offerings include RF Isolators, RF Circulators, RF Filters, Power Divider / Splitter, Duplexer/Triplexer, Hybridge Combiner, Coaxial Termination, Coaxial Attenuator, Directional Coupler, Waveguide to Coaxial Adapter.
We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.
Advantages:
we offer - ROHS Compliant
we offer - HFSS Simulation
we guarantee - One Year warranty
we guarantee - Fast Delivery
we support - Contract Manufacturing
|
