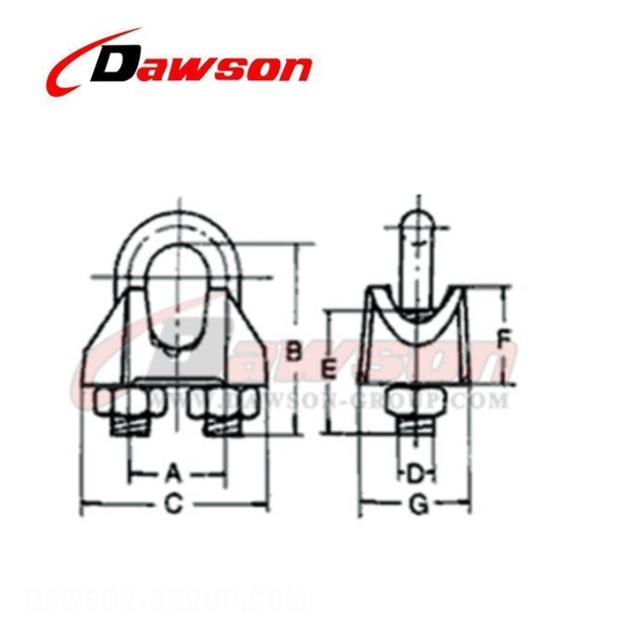

US Type Malleable Wire Rope Clips

Application

Wire rope clips are used on wire rope eye-loop connections or complete loops, end-to-end connections where socketing or splicing is not feasible or when a temporary joint is required.



Range

Dawson offers a wide range of wire rope clips in specifically standardized models such as EN 13411-5 and DIN wire rope clips. also offers a wide range of other wire rope clips



Design

Dawson wire rope clips are drop forged and have a bridge with grooves to tighten the wire rope properly in the clip; the DIN wire rope clips have a malleable base, without grooves.

Wire rope clips are generally marked with:

• manufacturer’s symbol - e.g. DAWSON

• wire rope diameter in mm or inches - e.g. 13 or 1/2”

• traceability code - e.g. DS21



Instructions for use

Wire rope clips should be inspected before use to ensure that:

• all markings are legible;

• a wire rope clip with the correct dimensions has been selected;

• the nuts or any other locking system cannot vibrate out of position;

• the wire rope clip is free from nicks, gouges and cracks;

• never modify, repair or reshape a wire rope clip by machining, welding, heating or bending as this may affect their performance.

The wire rope clip should be fitted to the wire rope as shown in below figures. The bridge of the wire rope clip should always be placed on the load bearing part of the rope. The U-bolt of the clip should be placed on the rope tail, also known as the dead end of the rope. Turn back enough wire rope length so that the required minimum number of clips can be installed according to the instructions below.

The first clip must be placed one bridge width from the turned-back rope tail or dead end of the rope, according to figure 1. Tighten the nuts to the specified torque.
