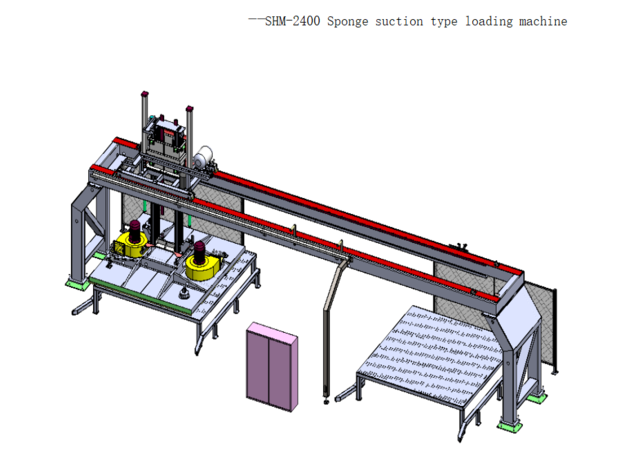

Tile loading and unloading machine-Sponge suction type

Tile loading and unloading machine-Sponge suction type (can be put behind the kiln tail,or before cutting line)

1、loading and unloading size can be customized,such as
600x600-16Pcs
800x800mm-9Pcs
600x1200-8Pcs
800x1600mm3Pcs;

2、Capacity:>10000sq.m/24h，take 800x800 as sample;

3、Working time :3~5 times per min，
4、Main component of control box is Omron,Schneider or Siemens;
5、All air cylinder use the brand of AIRTAC;
6、All reducers use Starlight reducers;
7、Frequency converter adopts YASKAWA;
8、Operation screen panel with 10-inch touch screen (brand: Omron);
9、Total power of the line (KW):appro 22Kw;
10、Compressed air pressure(Mpa):≥0.6;
11、The height of the belt to be confirmed;
12、Order to be subject to final approval drawing and technical doc.
13、Amended cost will be beared by customer if there is any change when order is confirm and material is ready to be put into produced.
