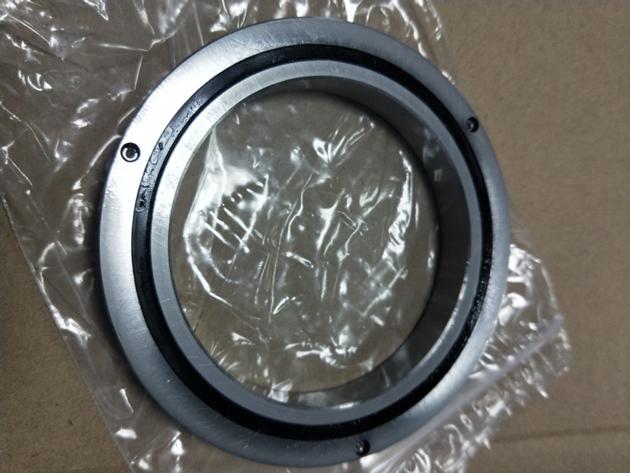

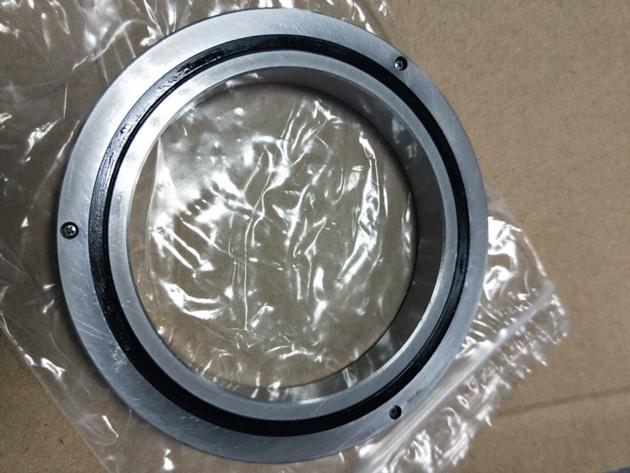

THB crossed roller bearings NRXT8013DDC8P5 FOR robots
| Price: | US$ 147 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | shanghai port |
Product Details
| Model No.: | NRXT8013DDC8P5 | Brand Name: | RORKS |
|---|
| Certification: | ISO 9001 2008 CERT.No.01 100 105812 by TUV |
|---|---|
| Specification: |
NRXT8013DDC8P5 technical specification:
Bore diameter: 80mm Outer diameter: 110mm Width: 13mm Basic load ratings, dynamic: Cr=20.5KN Basic load ratings, static: Cor=32KN Mass: 0.38kg With seals on both sides, internal clearance: -0.010~0mm |
Packaging & Delivery
| Packaging: | industrial packing |
|---|---|
| Delivery/Lead Time: | 20 days after payment |
| Production Capacity: | 100/month |
Product Description
NRXT8013DDC8P5 N series crossed roller bearings for the rotating joints of robots-THB Bearings
THB N series Crossed Roller Bearings are thin-wall bearings consisting of an inner ring, a two-part outer ring, cylindrical rollers, and separators. The rollers are oriented at right angles to each other and kept apart by separators.
This kind of N series Crossed Roller Bearings can sustain axial loads in both directions as well as radial loads and strong moment loads. And with their internal clearances factory-adjusted, it can be installed directly without troublesome shim adjustment. Mounting is facilitated by the outer ring parts being inseparable.
Application:
The rotating joints of robots
Indexing mechanisms
Rotary tables
|
