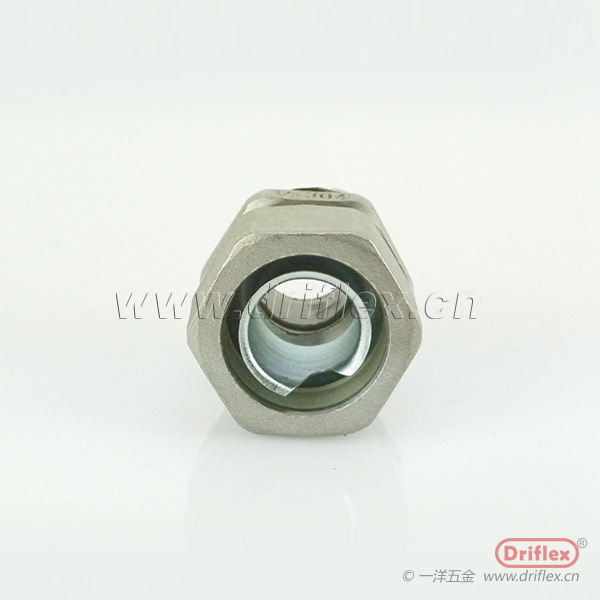

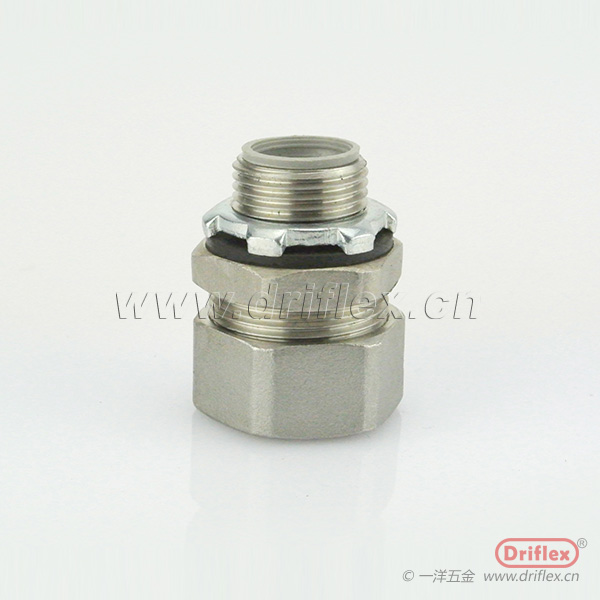

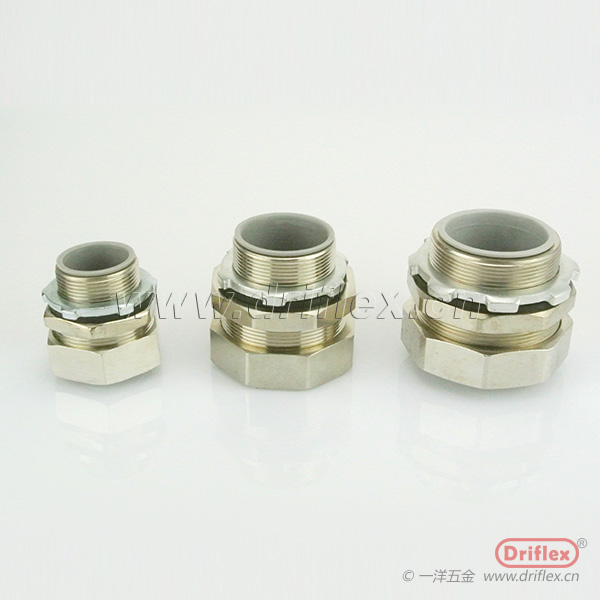

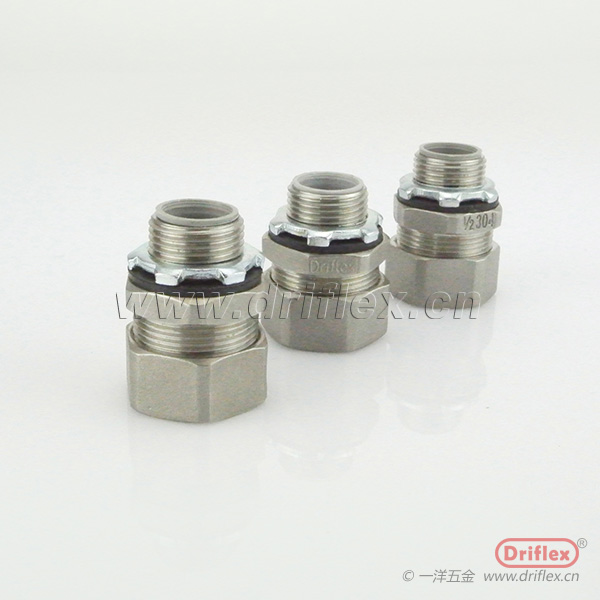

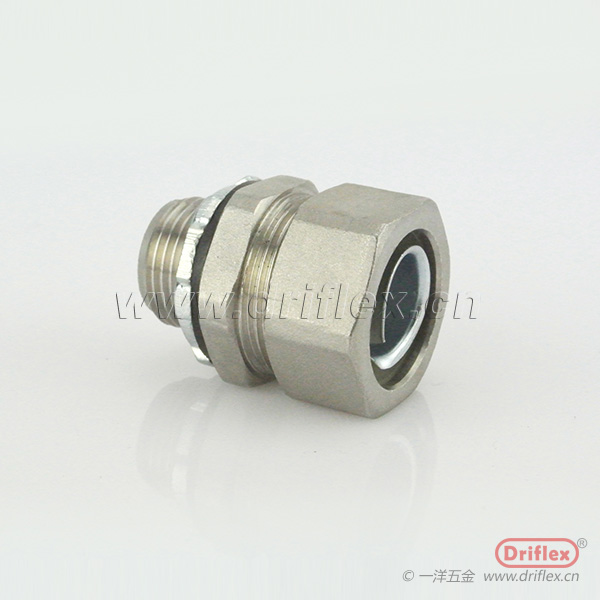

Stainless Steel Straight Connector

Structure:

Connector body with hexagonal wrench surface, thread ISO metric in accordance with EN60423 or thread NPT in accordance with ANS/ASME B1.20.1-1983, hexagonal pressure nut, sealing ring and ferrule

Material:
•Connector body - Stainless Steel
•Hexagon pressure nut - Stainless Steel
•Sealing ring - Nylon 66
•Ferrule - Galvanized steel or Stainless Steel

Features:
•Simple, one piece installation provides a quick and reliable liquid-tight seal
•IP rating from IP40 to IP66/67 in combination with the corresponding flexible conduits
•High mechanical strength
•Highly liquid-tight and dustproof
•Vibration and tensionproof
•Inherently low fire hazard
•Covering of the conduit ends
•Available in straight, 45o and 90o bodies
•Available in ISO Metric and NPT threads

Applications:
◦General indutrial and commerical electrical wiring protection
◦Machining centres and robotics
◦any narrow space in static applications
◦General wiring for OEM applications
◦Low fire hazard applications
◦Underflooring wiring in office buildings Special Applications:
◦Machine tools
◦Installations where liquid-tight is a requirement
◦Outdoor installation



According to customer's samples and specifications, we can manufacture special fittings for suit any type of flexible conduit applications.
