Stainless Steel Metal Bellow Flanged Flexible Joint
| Price: | US$ 5~2000 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | EH-500H(NO-Welded) | Brand Name: | Ehase-Flex |
|---|
| Certification: | ISO |
|---|---|
| Specification: |
Specifications:
Nominal bore Total length Bellows allowed deviation Max working pressure Specification Life length O.D. Max offset EH-500 EH-500H mm inch mm inch Lb(mm) D(mm) L(mm) kg/cm2 50 2 150 6 120 70.0 15 10 16 65 2 1/2 150 6 120 86.5 14 10 16 80 3 150 6 108 101.7 3.9 10 16 100 4 150 6 108 128.0 9.5 10 16 125 5 150 6 105 156.5 8.2 10 16 150 6 150 6 105 183.5 6.9 10 16 200 8 200 8 150 234.0 10.5 10 16 250 10 200 8 140 289.0 7.1 10 16 300 12 200 8 140 341.0 5.9 10 16 *Specification stated above are standard. We can design and manufacture according to customer's requirement. *Flange standard: JIS, ANSI, DIN, B.S., JB, etc |
Packaging & Delivery
| Packaging: | Carton Box, Pallet, or Plywood Case |
|---|---|
| Delivery/Lead Time: | 20 Working Days |
| Production Capacity: | 80000 Piece/Pieces per Year |
Product Description
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ehase-flex
Model Number: EH-500H ( Non-welded)
Type: Flange
Material: Stainless Steel, SUS304/316L/321
Technics: Non Welded
Connection: Flange
Shape: Equal
Head Code: Round
Size: DN15-DN300
Standard: EJMA
Temperature Rating: Max 1000℃
Flange Standard: JIS, ANSI, DIN, BS, JB...
Rated Working Pressure: 10bar, 16bar
Certificate: ISO 9001
Application: Used in Gas, Oil, Water, Steam, Petro, Chemical
OEM/ODM: Allowed
Supply Ability
Supply Ability: 80000 Piece/Pieces per Year HS Code: 7307 99
Packaging & Delivery
Packaging Details
Carton Box, Pallet or Plywood Case; As Customer's Requirement
No Unacceptable Packaging Material or Bamboo Products Been Used as Packing
Port
Shanghai or Ningbo or Any Port in China
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(day) 10 To be negotiated
Product Description
Flange Joint Flexible Metal Corrugated Hose Pipe

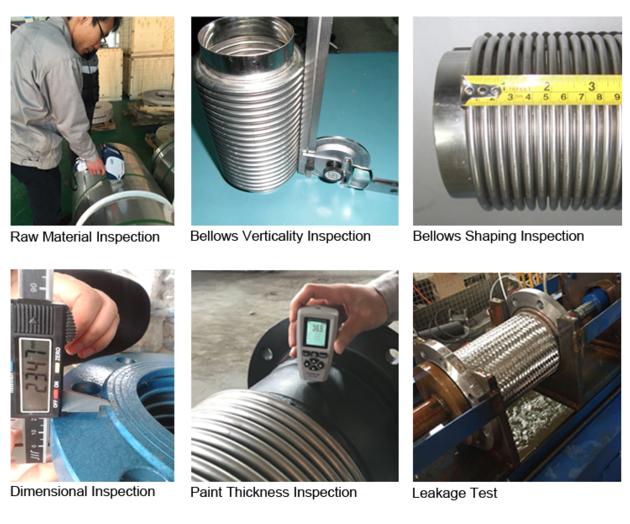

100% Test Before Delivery
Omega Bellows, More flexible and longer service life.
Non-welded Type, All the parts contacting meduim is stainless steel
More than 40-year experience in manufacturing

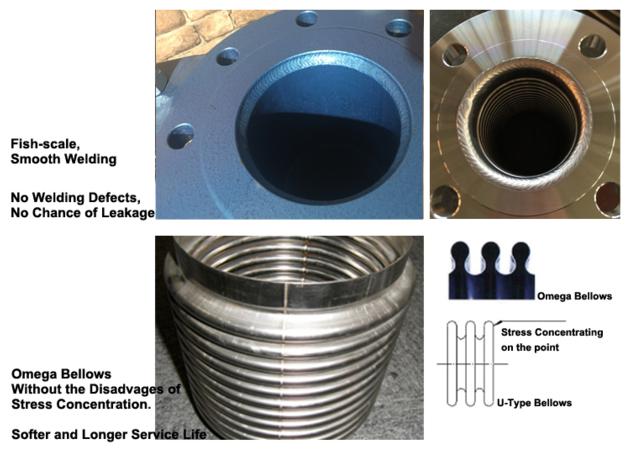

Features
1. Excellent Welding Technology, like a fish swimming in water.
2. Omega Bellows, More flexible and longer service life.
Item Parts Material Remark
1 Bellows SUS304 SUS316/321
2 Flanges FCD40 SUS301/316/321
3 Tie Rods S25C
4 Gaskets EPDM Natural Rubber

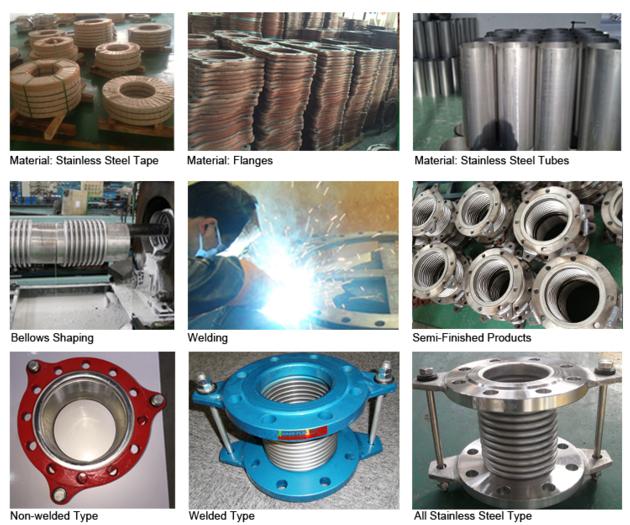

Production Process
Production Capacity
Flexible Sprinkler Hoses: 350,000pcs Per Month
Flexible Joints/Expansion Joints: 80,000pcs Annual
Gas Connector: 300,000pcs Per Month
Water Connectors: 5,000,000m Annual
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of expasnion joint, flexible joint, flexible sprinkler hose, flexible tube, corrugated gas connector, spring absorber with more than 40-year experience.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.
Q: Have your products been exported?
A: Yes, they have been exported to USA, France, Australia, Peru, Chile, Brazil, Uruguay, Russia, UAE, Saudi Arabia, Oman, Egypt, Keyna, Serbia, Vietnam, South Korea, Indonisia, India, Thailand, Pakistan, Philippines, Singapore, HK...
Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
Q: Visting company is allowed or not?
A: Yes, we welcome customers visiting our company. We are located in Hangzhou, Zhejiang Prov., China
|
