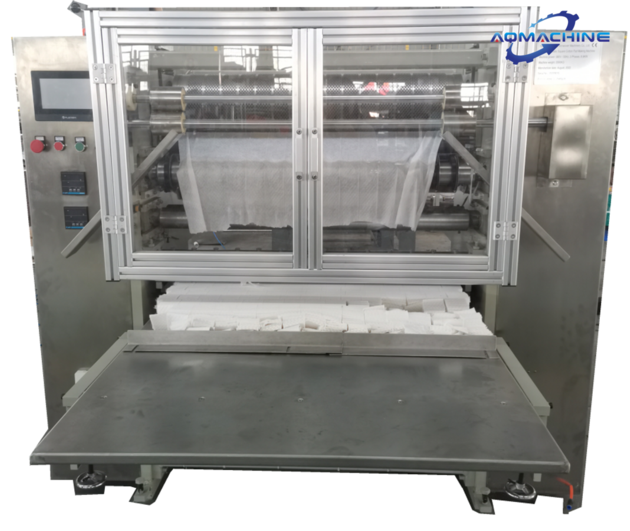

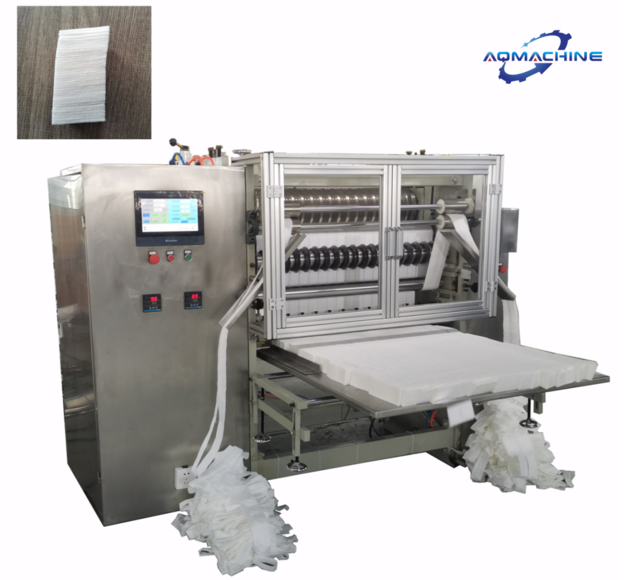

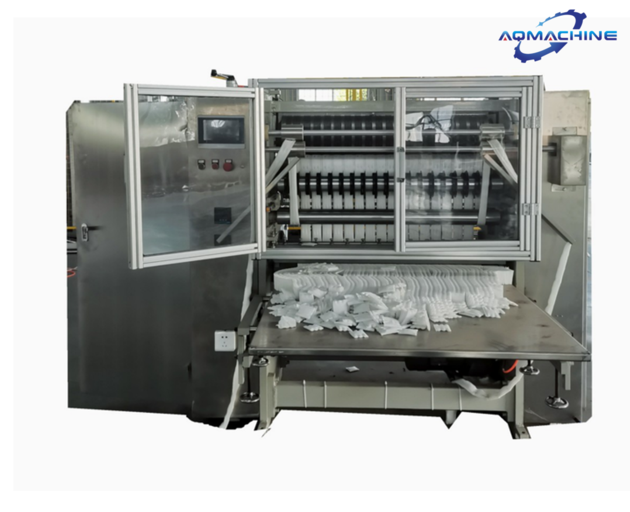

Square Cotton Pad Making Machine

Automatic cotton pads making machine descriptions:

1.Production process:

a.Raw material transferring b. Vertical cutting c. Horizontal cutting

d. Stepping count e. Array outputting in zigzag

2.The cotton pads making machine rack is formed by integral wall panel (the thickness of the wall panel is 35mm, not using channel steel, the original channel steel frame is easily deformed after long-term operation, which affects the product accuracy), and both longitudinal and transverse slicing are sliced with high-quality knives. Accurate cutting, no burrs, and high product precision.

3.The effective breadth 1000mm, material maximum width 950mm, the biggest diameter of jumbo roll 800mm.

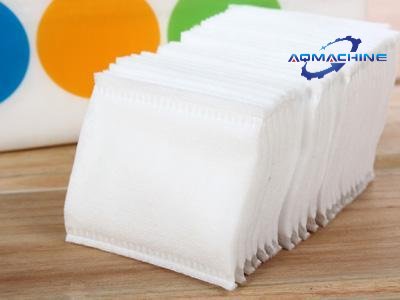

4.The finished product size is 50*60mm. Material is spunlace nonwoven. This size can be adjusted within the range (Width≥4cm, and the length is from 5-10cm)

5.Vertical and horizontal cutters are made of imported high-quality special material which is durable, accurate cutting and no burs.

6.It is equipped with ONE set of steel to steel indentation roller, main bearings used in good quality brand.

7.Automatic counting device, showing a zigzag-type stacking count around, finished products' size is adjustable.

8.All parts which are in contact with fabrics are manufactured in 304# stainless steel.

9.The machine running is controlled by the servo driving systems and it has a reasonable layout of the electric wires, it is easy for workers to run the machine.

10.The whole structure is compact, high-speed, smooth operation, stable performance, light noise, simple, the mechanical design is superior to the Japanese make-up cotton , and it is a national original.

11.Operation and technical manual in English with detailed instructions with troubleshooting guide



Part 2: Main technical parameters：

Production rate of 1000-6000pcs / min

Rated voltage of 380V

Rated frequency 50Hz

Total power 3kw

Machine size: L:6500, W:1500, H:1600mm

Machine weight: about 1800kgs
