Sintered Stainless Steel Porous Metal Filter Tube Filter cup

Product Introduction

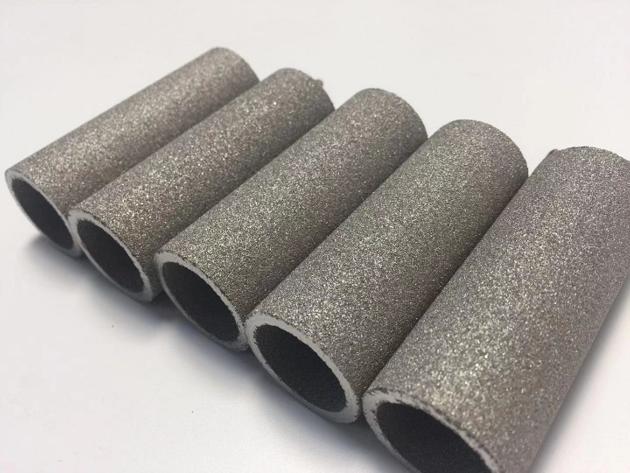

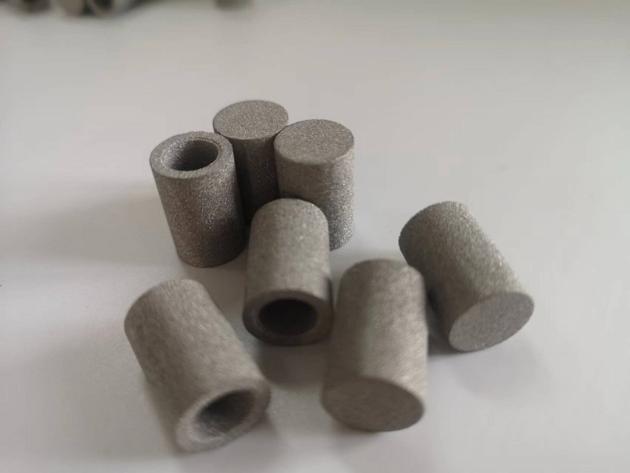

The Sintered Stainless Steel Porous Metal Filter Tube is created from irregularly-shaped stainless steel powder, typically AISI 316L. The powder is compressed into a mold, then sintered at high temperatures to form a porous tube with exceptional resistance to high temperatures, corrosion, and mechanical strain.

The pore size of the filter can be determined by the choice of powder and the applied pressure during compression. The shape, size, and distribution of the powder impact the final properties of the filter.


At filtration accuracies of 70³´µm or finer, particle chipping can be an issue with some filters. However, our sintered metal tube avoids this problem thanks to our advanced vacuum sintering equipment and skilled production staff.

Furthermore, each sintered metal tube undergoes rigorous testing with bubble point and air permeability tests according to ISO 4003 and ISO 4022, respectively. This ensures that our filters are of the highest quality and meet the needs of every customer.


Parameters:

Brand: TOPTITECH

Length: 50-1016mm

Diameter: 4-500mm

Wall thickness:1-5mm

Filtration accuracy: 0.22-100um

Operating temperature: 600℃

Working pressure: 3Mpa

Porosity: 35%-60%

All specifications can be customized.


Features

1. Resistant to high temperatures up to 600℃ during normal use.

2. Strong mechanical strength and good plasticity, allowing for machining.

3. Resistant to corrosion and oxidation, suitable for use in nitric acid, sulfuric acid, dilute hydrochloric acid (5%), acetic acid, liquid hydrogen, and liquid nitrogen environments.

4. Capable of being molded according to customer drawings, with an efficient molding process.

5. Provides high filtration accuracy and effective purification.

6. Uniform pore size and stable internal structure, with no particle shedding.

7. Allows for good air permeability and easy back blow cleaning, with the ability to be repeatedly regenerated online.

8. Exhibits excellent wear and impact resistance, with strong mechanical properties.


Application

Stainless steel sintered porous materials are primarily employed in the areas of noise reduction, filtration and separation, fluid distribution, flow restriction, capillary core, and other applications based on their physical and structural features.

1. The procedure used to produce chemical raw materials, which also includes filtering for impurities, material decarburization, and fine filtration.

2. Water treatment systems with security filtration, RO, and ultrafiltration.

3. The completed product clarity and filtration in the food and beverage industries.

4. Precious metal catalyst filtration and recovery in the petrochemical industry.

5. Precision filtering of liquid chemical industry raw materials, finished goods, and pharmaceutical intermediates.

6. Water injection filtration using reverse osmosis for security.

7. Deoiling of compressed air and gas purification of steam.

8. Medium purification and flow restriction for hydraulic fluids, lubricants, and fuels.


Package and Shipment

1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
