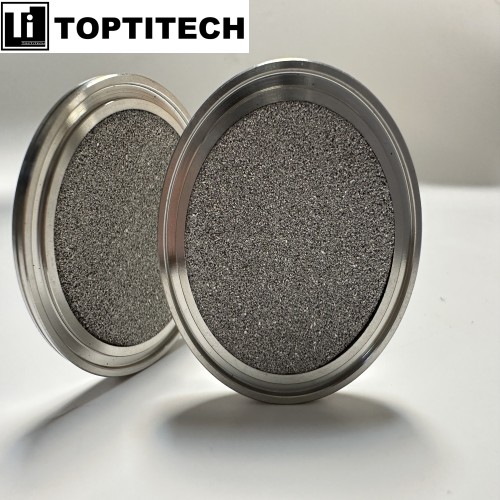

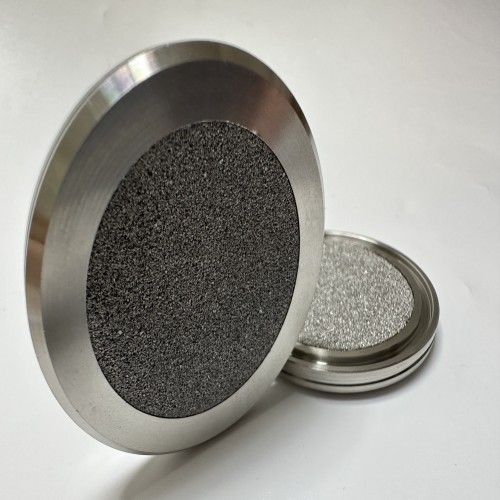

Sintered Stainless Steel Medical Fine Diffuser Stone For Ozone Generator

Product Introduction

Ozone generators are widely utilized in numerous industries for their ability to produce ozone, a powerful oxidizing agent used for air and water purification, odor control, and sterilization. A crucial component of an ozone generator is the diffuser stone, responsible for efficiently dispersing ozone into the target environment.

Specifications:

Material: Sintered stainless steel
Pore Size: 0.2 to 100 microns
Diameter: 5 mm to 300 mm
Thickness: 1 mm to 10 mm
Porosity: 30%-40%
Maximum Operating Temperature: Generally capable of withstanding temperatures up to 600­C

Features

Corrosion Resistance: Stainless steel is known for its excellent corrosion resistance, making it highly suitable for ozone-rich environments. This characteristic ensures the longevity and durability of the diffuser stones, even when exposed to high ozone concentrations over extended periods.

Controlled Pore Size: The diffuser stones have a precisely controlled pore size, typically ranging from 0.2 to 100 microns. This allows for efficient diffusion of ozone gas into the target medium, ensuring optimal utilization of ozone for purification or sterilization purposes.

Enhanced Surface Area: The sintered stainless steel diffuser stones are designed to have a high surface area, maximizing the contact between ozone and the surrounding medium. This promotes efficient ozone transfer and improves the effectiveness of purification or sterilization processes.

Durability: Sintered stainless steel diffuser stones are highly durable, resistant to clogging, and capable of withstanding demanding operating conditions. They can endure high ozone concentrations without compromising their structural integrity, ensuring consistent performance over time.

Compatibility: Stainless steel diffuser stones are compatible with a wide range of ozone generator systems and can be used with different gases, including air and oxygen, besides ozone.

Applications:

Water Treatment: Ozone is extensively used for water disinfection and purification in municipal water treatment plants, swimming pools, and aquariums. Diffuser stones play a crucial role in dispersing ozone gas into water, effectively eliminating bacteria, viruses, and other contaminants.

Air Purification: Ozone generators find application in air purification systems for spaces such as hospitals, laboratories, and commercial buildings. Diffuser stones aid in distributing ozone evenly, facilitating the removal of airborne pollutants, allergens, and odors.

Food and Beverage Industry: Ozone is employed for sterilizing food products and disinfecting packaging materials in the food and beverage industry. Diffuser stones assist in the controlled release of ozone, ensuring effective microbial reduction while maintaining product quality.

How frequently should the diffuser stone be replaced?
The replacement frequency depends on factors such as operating conditions, ozone concentration, and maintenance practices. Generally, diffuser stones can last for several months to a few years before requiring replacement.

How can a clogged diffuser stone be cleaned?
If the diffuser stone becomes clogged, it can be cleaned using a mild detergent solution or soaking it in vinegar. Gently scrubbing the stone with a soft brush can help remove any accumulated debris or deposits.

Can diffuser stones be used with gases other than ozone?
While diffuser stones are primarily designed for ozone dispersion, they can also be used with other gases such as air or oxygen. However, it's important to consider the compatibility of the stone material with the specific gas being used.
Are diffuser stones available in different sizes?
Yes, diffuser stones are available in various sizes to accommodate different ozone generator designs and flow rates. It is important to select the appropriate stone size based on the specific requirements of the ozone generator system.


Package and Shipment

1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the customer±s designated place without damage.
