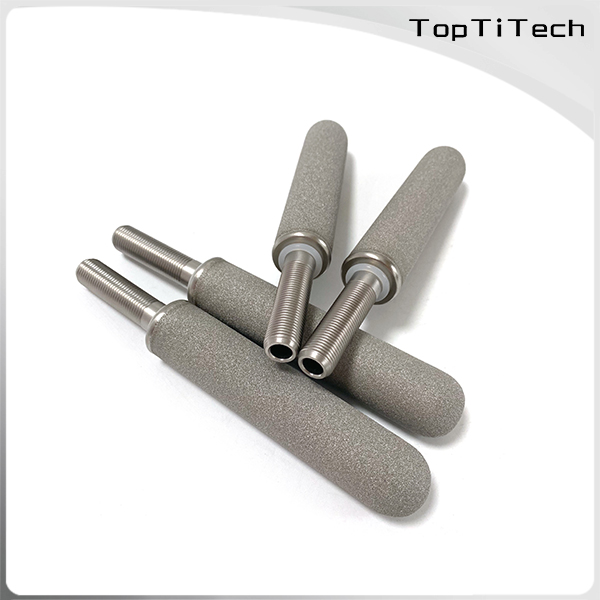

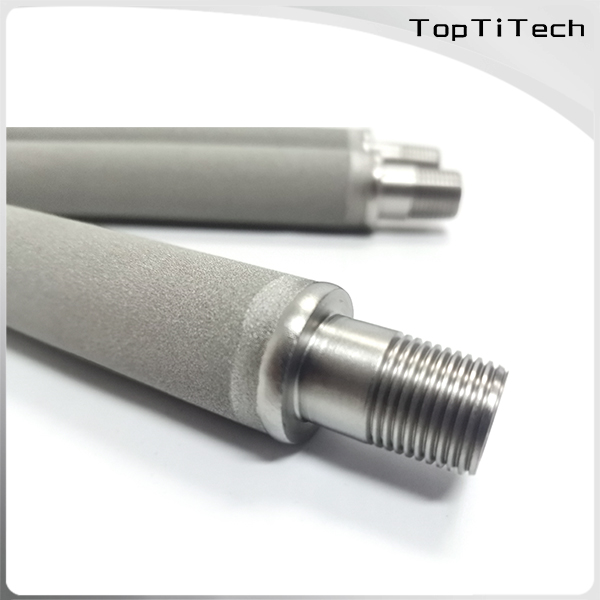

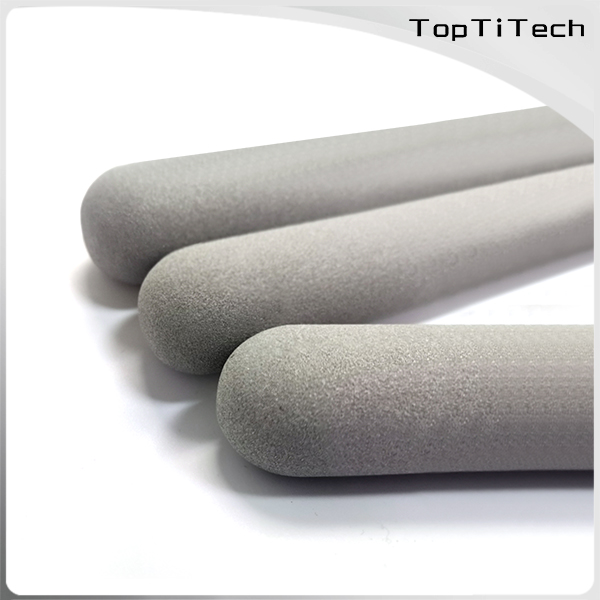

Sintered Porous Titanium Rod Filter Element For Filtration

Product Introduction


The titanium rod filter element is made of industrial high-purity titanium powder (99.4%).

No particle falling off, no secondary pollution of the original solution, in line with food hygiene and pharmaceutical GMP requirements.

Good mechanical performance can be press-filtered or suction-filtered, and easy to operate.

Low differential pressure, small footprint, and large flow.

It can be regenerated online, is easy to clean, and has a long service life (usually several times that of membrane filter elements)




Parameters


Filtration accuracy: 0.22μm-100μm

Porosity: 28-50%

Air permeability: 0.02-20M3cm/m2h.mmH2O

Compressive strength: 0.5-1.5Mpa

Temperature resistance: 280®C (wet state)

Connection:M20 M30 M36 M42 215 222 226 DOE and customized

Maximum working pressure difference: 0.6Mpa


All specifications can be customized.


Application


With its unique performance, titanium rod filter element can be widely used in pharmaceutical industry, water treatment industry, food industry, bioengineering, chemical industry, petrochemical industry, metallurgical industry and gas purification fields.



Typical uses include:

In the pharmaceutical industry, it is used for decarbonization filtration in the concentrated preparation of large infusions, small injections, eye drops, and oral liquids, and security filtration before terminal filtration in the diluted preparations.

Impurity removal and filtration in the production process of raw materials, decarbonization filtration and fine filtration of materials.

Security filtration of ultrafiltration, RO and EDI systems in the water treatment industry, filtration after ozone sterilization and ozone aeration.

Decarbonization filtration and precision filtration of liquid products, liquid raw materials, and pharmaceutical intermediates in the chemical industry, filtration and recovery of ultrafine fine particles and catalysts, precision filtration after resin adsorption, and impurity removal and filtration of system heat transfer oil and materials, catalysis Gas rest purification, etc.

High-temperature decarbonization and white clay filtration in the dye industry.



Package and Shipment

1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
