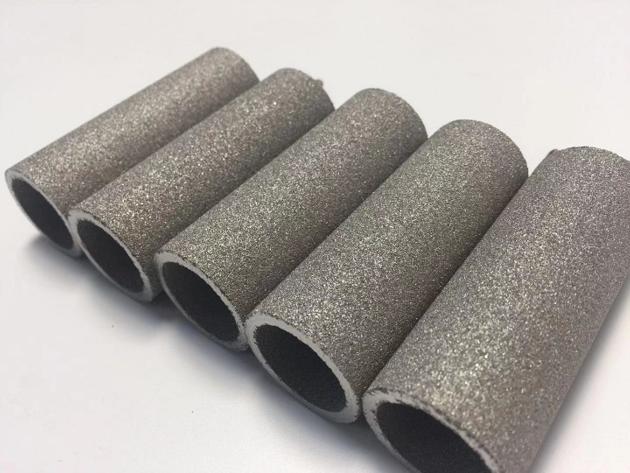

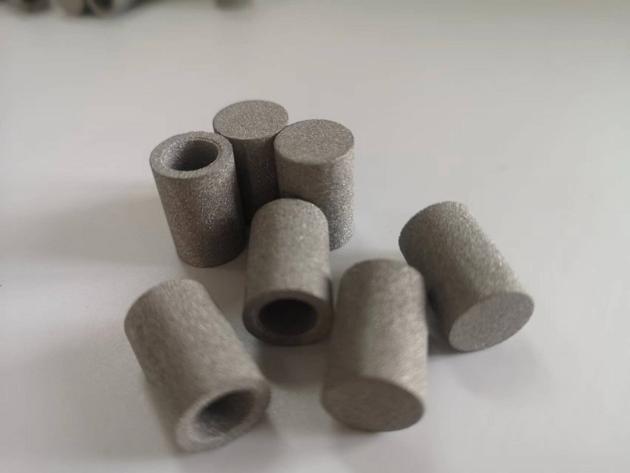

Sintered 5 Microns Porous Stainless Steel Filter Tube

Product Introduction

sintered porous stainless steel filter is a type of filter made from stainless steel powder that has been sintered, or fused together, to form a porous structure. Sintering involves heating the stainless steel powder to a high temperature, just below its melting point, to fuse the particles together without completely melting them.

The pore size and distribution of sintered porous stainless steel filters can be controlled during manufacturing. This enables filters to be tailored for specific applications, such as filtering out large particles or removing smaller contaminants.

Sintered porous stainless steel filters are made from high-quality stainless steel powder that is sintered together to create a strong and durable material. They can withstand high pressures, high temperatures, and harsh chemical environments.


Parameters

Place of origin： Baoji, China

Brand： TOPTITECH

Filtration precision:0.2um-100um

Material： SS 316L, SS304

Working temperature：≤ 600℃

Length: 50-1000mm(More than 1000mm can be welded)

Diameter: 4-500mm

Wall Thickness: 1-5mm

Connector：

1. DOE (Double open)

2. 220

3. 222

4. 226

5. Threaded connector

6. Flange connector

7. Tie rod connector

8. Customized Connector


Features

1. High corrosion resistance,

2. Good permeability.

3. High rigidity.

4. Easy to wash and backwash.

5. High precision.

6. Clean filter material

7. Fast wire net without migration.


Applications for porous stainless steel tube：

1. Catalyst filtration;

2. Filtration liquids and gases;

4. Filtration in food and beverage;

5. Boiling vaporized bed;

6. Fire retardant;

7. Balance and dampen airflow;

8. Sensor protection;

10. Fly ash treatment;


Package and Shipment

1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the customer±s designated place without damage.
