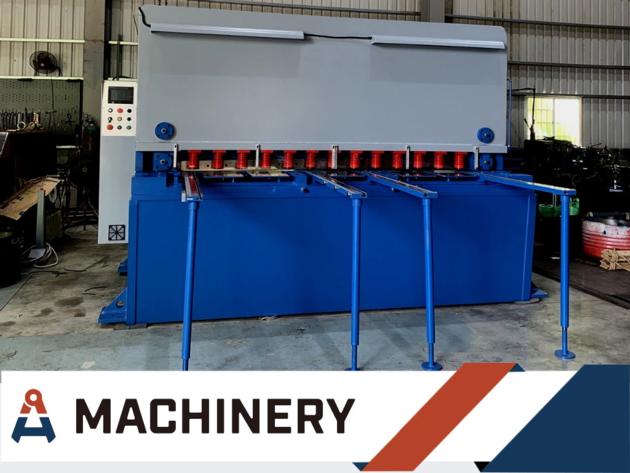

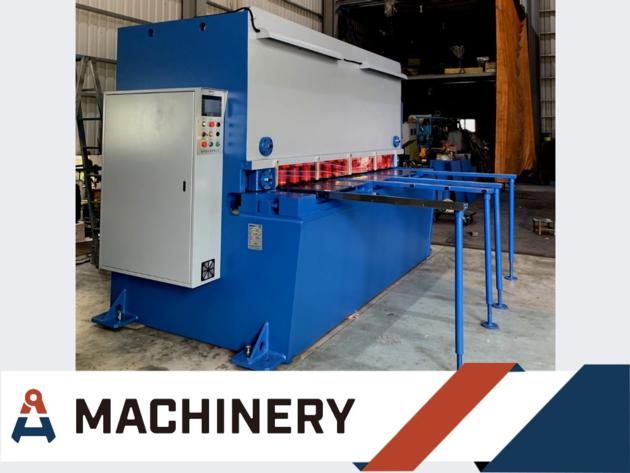

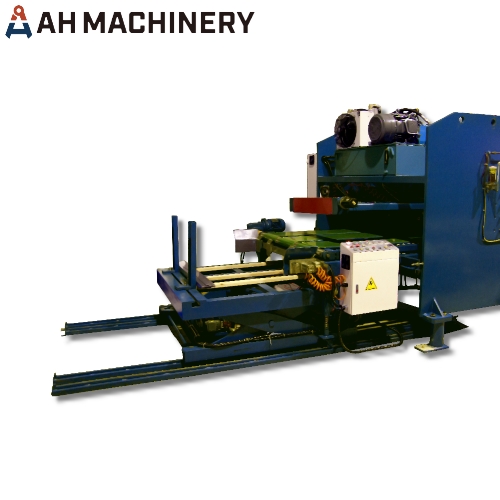

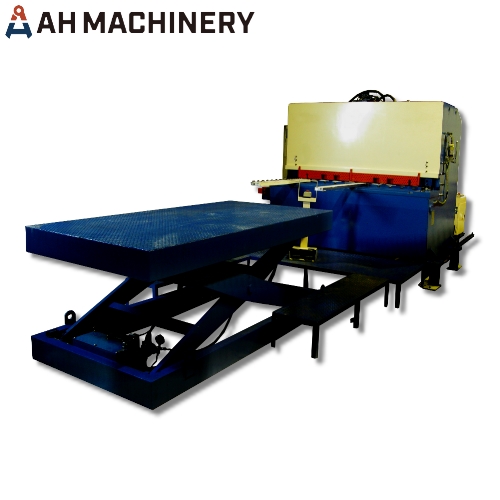

Shearing Machines for (Hydraulic Guillotione, NC Swing Arm, Economy)

AH Machinery supplies full range of Hydraulic Shearing Machine, Sheet Metal Shears, Metal Cutting Machine, Squaring Shears made in Taiwan, customized specifications are available.

/APPLICATIONS/
Aerospace, automobile refit, boilers, bridge appliances, chemical industry, electrical appliances, construction, decoration, electricity, light industry, metallurgy, meters, pressure vessel, ship, steel rolling, tractor and so on.

/SPECIFICATION/

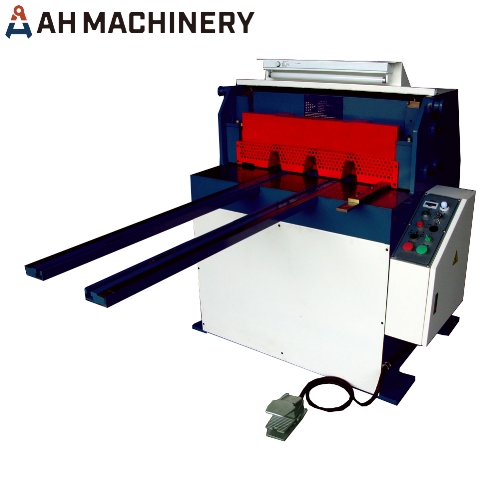

- Type= Hydraulic, Economy Hydraulic, NC Swing Arm, Hydraulic Guillotine
- Front Gauge Range [mm]= 1300
- Rear Gauge [mm]= 600/800/1000
- Hold-downs Number= 1, 6, 8, 10, 11, 13, 16, 19, 21, 22, 25
- Rake Angle= 1 degree, 1.5 degrees, 1 degree and 30 minutes, 1 degree to 2 degrees, 1 degree to 2 degrees and 10 minutes, 1 degree to 2 degrees and 30 minutes, 1 degree and 10 minutes, 1 degree and 15 minutes, 1 degree and 20 minutes, 1 degree and 30 minutes, 1 degree and 45 minutes, 2 degrees, 2 degrees and 25 minutes, 2 degrees and 30 minutes, 3 degrees, 4 degrees
- Strokes per Minute [S.P.M]= 5, 7, 8, 9, 10, 11, 12, 13, 15, 16, 18, 20, 23, 26, 30, 32, 35, 7-16, 8-12, 8-13, 8-18, 9-15, 9-16, 9-18, 10-20, 11-18, 11-21, 12-20, 12-22, 12-24, 13-22, 13-24, 13-25, 14-23, 14-28, 16-32, 20-40, 23-45
- Main Motor [HP/kw]= 3/2.2, 5/3.7, 7.5/5.6, 10/7.5, 15/11.2, 20/14.9, 25/18.6, 30/22.4, 40/29.8, 50/37.3, 60/44.7, 75/55.9, 100/74.6
- Capacity [mm]= 1.0x650, 3.2x600, 3.2x660, 3.2x1250, 3.2x1320, 3.2x1550, 3.2x1580, 3.2x1880, 3.2x2000, 3.2x2500, 3.2x2540, 3.2x3100, 3.2x3700, 3.2x4100, 4.5x600, 4.5x1320, 4.5x1580, 4.5x1880, 4.5x2540, 4.5x3100, 4.5x3700, 4.5x4100, 6.5x600, 6.5x1320, 6.5x1550, 6.5x1580, 6.5x1850, 6.5x1880, 6.5x2500, 6.5x2540, 6.5x3100, 6.5x3700, 6.5x4100, 6.5x5100, 6.5x6200, 9.5x600, 9.5x1150, 9.5x1320, 9.5x1580, 9.5x1850, 9.5x1880, 9.5x2500, 9.5x2540, 9.5x3100, 9.5x3700, 9.5x4100, 9.5x5100, 9.5x6200, 13.0x1550, 13.0x1850, 13.0x2500, 13.0x2540, 13.0x3100, 13.0x3700, 13.0x4100, 13.0x5100, 13.0x6200, 16.0x1550, 16.0x1850, 16.0x2500, 16.0x2540, 16.0x3100, 16.0x3700, 16.0x4100, 16.0x5100, 16.0x6200, 19.0x1550, 19.0x1850, 19.0x2500, 19.0x3100, 19.0x3700, 19.0x4100, 19.0x5100, 19.0x6200, 20.0x2540, 20.0x3100, 20.0x4100, 22.0x3100, 25.0x3100
- Weight [Kgs/Lbs]= 750/1653, 850/1874, 950/2094, 1150/2535, 1200/2646, 1400/3086, 1500/3307, 1600/3527, 1600/3527, 1800/3968, 1900/4189, 2000/4409, 2100/4630, 2200/4850, 2400/5291, 2500/5512, 2600/5732, 2750/6063, 2900/6393, 3000/6614, 3200/7055, 3450/7606, 3500/7716, 3800/8378, 4000/8818, 4650/10251, 4800/10582, 5200/11464, 5500/12125, 6000/13228, 6200/13669, 6800/14991, 7000/15432, 7500/16535, 7700/16976, 8300/18298, 9000/19841, 9800/21605
- Overall Dimensions [mm] [LxWxH]= 1200x1020x1100, 1330x760x1350, 1980x760x1350, 2200x760x1350, 2250x2300x2150, 2400x1020x1270, 2400x2100x1750, 2400x2150x1950, 2500x2250x2050, 2500x2250x2100, 2580x910x1550, 2650x2100x1800, 2650x2150x1950, 2750x2250x2100, 2850x2300x2150, 2900x2350x2250, 3050x1020x1560, 3300x2150x1900, 3350x2200x2050, 3400x2300x2200, 3450x1020x1560, 3550x2400x2550, 3600x2500x2800, 3850x2150x1950, 3900x2200x2100, 3950x2300x2250, 4000x1020x1630, 4200x2450x2600, 4250x2650x2900, 4300x2700x3050, 4450x2800x3200, 4500x2150x1950, 4550x2250x2150, 4600x2350x2250, 4650x2500x2700, 4700x2600x2900, 4900x2200x2100, 4950x2300x2250, 5000x2400x2400, 5200x2700x2750, 5250x2800x2950, 6000x2750x3050, 6150x2800x3200, 6200x2900x3300, 6350x2900x2850, 6400x2900x3000, 7200x2800x3150, 7250x2900x3200, 7300x2950x3300, 7350x3050x3400, 7400x3200x3550

/STANDARD/
v Ball Transfer Working Table
v Blade Clearance Adjustment
v Finger Guard
v Footswitch
v Front Gauge
v Manual Back Gauge
v NC Control System
v Nitrogen Cylinders
v Operation Instruction Manual
v Shadow Line Device

/OPTIONAL/
v NC Control System with Touch Screen
v Pneumatic Support for Thin Sheet
v Front Arm Lengthened 1.5/2/3 M
v Power Lubrication System

/FEATURES/
#Customized_specifications_are_available.
#High_caliber_and_Accurate.

Welcome to contact us!
A Homia will satisfy you as long as you give us a try.
