S375 2RS485 GSM GPRS 3G 4G Modbus RTU to MQTT IOT Modem with Dual SIMcard
| Price: | US$ 100 |
|---|---|
| Minimum Order: | 2 |
| Payment Terms: | Wester Union, T/T, Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | S375 | Brand Name: | King Pigeon |
|---|
| Certification: | CE |
|---|---|
| Specification: |

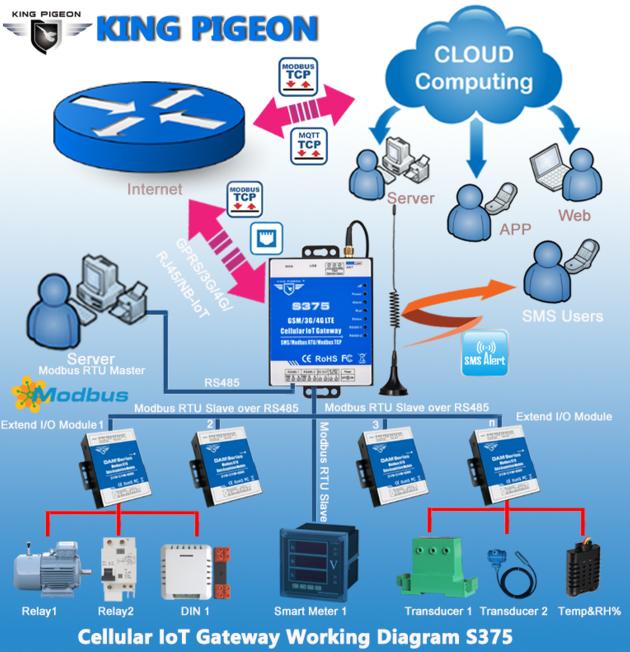

The Ethernet Cellular IoT Modbus Gateway provides 1 ambient sensor input for monitoring onsite temperature and humidity, 1 Ethernet RJ45 port for connect internet WAN or LAN, and 2 RS485 serial port, supports 320 extend I/O tags via Modbus RTU protocol. It can monitoring and operates the RS485 ports and extend I/O tags by SMS, APP, Web Server, internet.Widely used in BTS,unmanned rooms,highway bridges,natural disaster warning monitoring, pump control, sewage treatment, meteorological environment, oilfield pipelines, smart farming, smart agriculture and other occasions. Supports SMS,GPRS,3G, 4G Lte Cellular Networks. Compatible Modbus TCP and MQTT IoT Protocols and can intergrate to the KPIIOT IoT Cloud Platform and OPC, SCADA and MES systems to build an industiral IoT Solution.
|
Packaging & Delivery
| Packaging: | Box |
|---|---|
| Delivery/Lead Time: | wthin 7 working days |
| Production Capacity: | 50000 per month |
Product Description
1. Can be operated from anywhere, no distance limitation;
2. Quad band 850/900/1800/1900Mhz GSM GPRS Module inside.
3. 3G/4G/NB-IoT Modules are optional;
4. Modular design, can easily upgrade the cellular module if network upgrade;
5. Embedded ARM¬ Cortex™-M4 32 Bit RISC Core, 168 MHz inside, RTOS system, reliable performance with in-built watchdog;
6. Wide range power supply 9~36VDC with over voltage and phase-reversal protection;
7. 1 ambient sensor input for monitoring onsite temperature and humidity;
8. Resend the data while communication failure and alert to users by SMS;
9. Inbuilt TCP/IP protocol stack, supports cloud, APP and web server applications.
10. Supports Modbus TCP protocol, can integrate to SCADA,HMI,DSC directly.
11. Supports RJ45 Ethernet port for connect internet, WAN or LAN;
12. 2 RS485 port supports Modbus RTU Master and Slave, can be used to extend I/O ports or meters;
13. Supports SMS Alert when humiture triggered or recovery, and external power lost or recovery;
14. Provides 1 channel 9~36VDC power source output for external device, saving wiring cost;
15. Up to 10 SMS Alert and dial numbers, can program to receive specified alarm message.
16. Inbuilt 8G SD card to save up to 100000 historical data and events;
17. Inbuilt large capacity automatically rechargeable backup battery;
18. Industrial class design suitable for long time work applications;
19. using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field;
20. L70 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.
|
