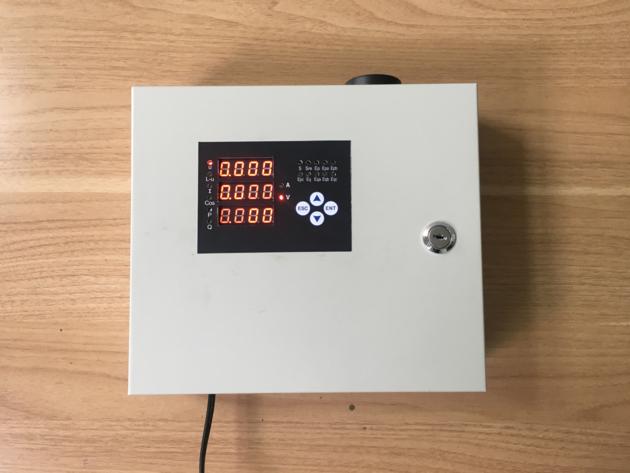

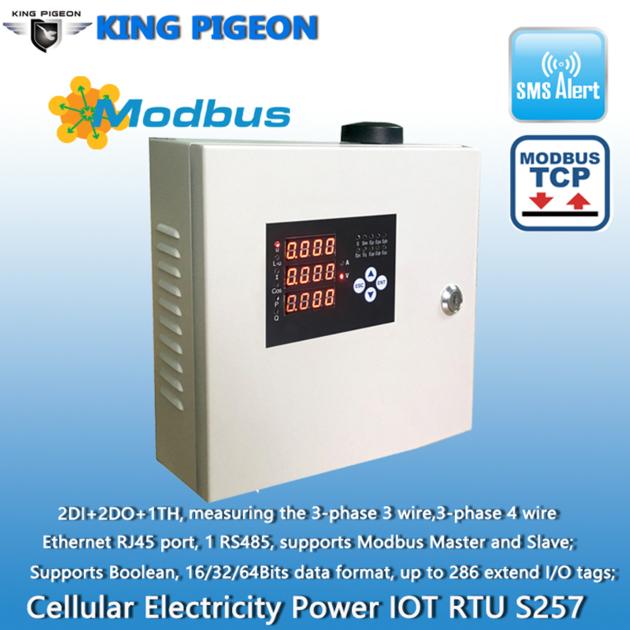

S257 Cellular Smart Meter 3-Phase Electricity Power IOT RTU

1. Can be operated from anywhere, no distance limitation;

2. Quad band 850/900/1800/1900Mhz GSM GPRS Module inside.

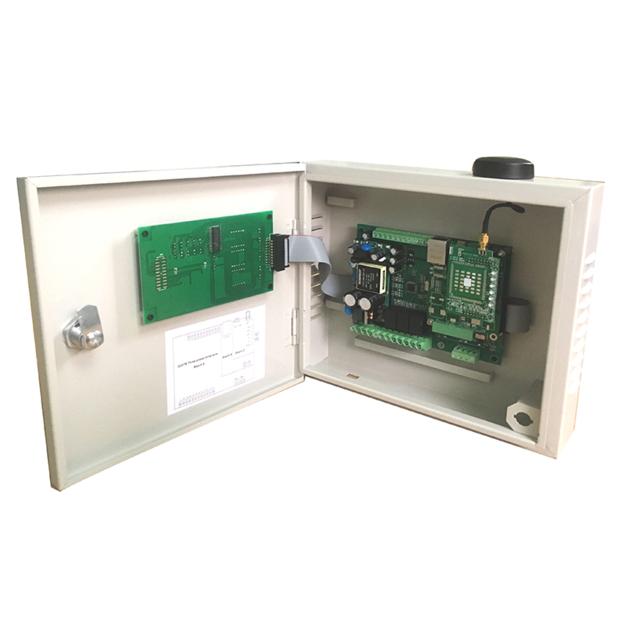

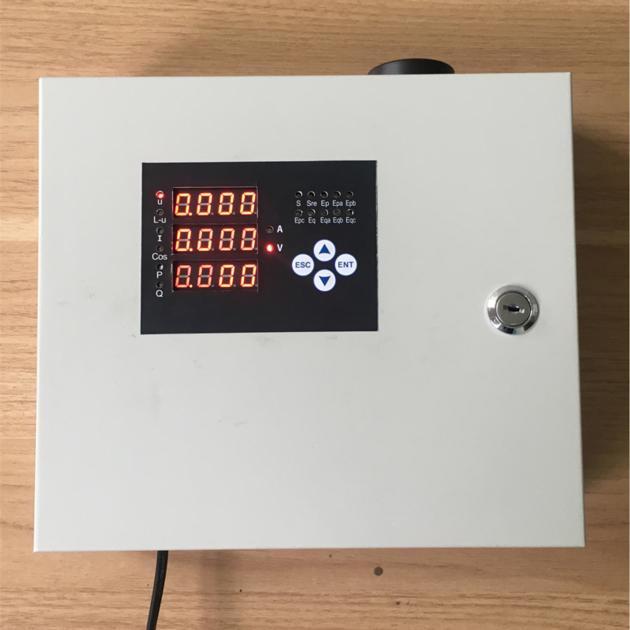

3. 3G/4G/NB-IoT Modules are optional, LCD Display is optional;

4. Modular design, can easily upgrade the cellular module if network upgrade;

5. Embedded ARM¬ Cortex™-M4 32 Bit RISC Core, 168 MHz inside, RTOS system, reliable performance with anti-jamming and in-built watchdog;

6. High isolate voltage, current and voltage input signal isolated by accuracy transformer, afford arrive DC2500V;

7. Working Voltage: 60~500VAC or 70~800VDC;

8. 3-phase 3 wires or 4 wires power parameter measurement, include voltage, current, factor, watts, frequency, apparent power, active power, reactive power, active energy, reactive energy, phase loss;

9. Measurement range: AC100~400VAC, currant range: 5A, other range should use CT;

10. 2 digital inputs, compatibles dry and wet contact, 2 relay output (5A/30VDC, 5A/250VAC), compatibles pulse outputs;

11. 1 ambient sensor input for monitoring onsite temperature and humidity ;

12. 1 RS485 port, supports Modbus RTU Master and Slave, can be used to extend I/O ports or meters;

13. Provides 1 channel DC power source output for external device, saving wiring cost;

14. Each parameter can setup threshold, when exceed or recovery will alarm immediately;

15. Can monitoring phase loss, when occurs will alarm immediately.

16. Inbuilt inter-lock logic programmer and powerful timer program function.

17. Resend the data while communication failure and alert to users by SMS;

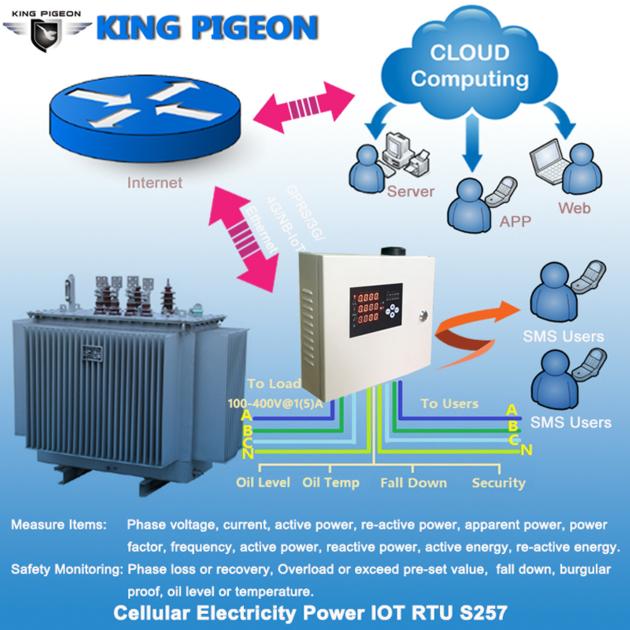

18. Inbuilt TCP/IP protocol stack, supports cloud, APP and web server applications;

19. Supports Modbus TCP, Modbus RTU protocol and transparent transmission, can be used as master and slaves, can integrate to SCADA, HMI, DSC directly;

20. Supports USB setting, reading, records inquiry and firmware upgrade;

21. Supports 100000 historical records for checking;

22. Integrated 1 Industrial 10/100M adaptive Ethernet module inside, supports Modbus TCP;

23. Supports SMS Alert when overload, I/O triggered or recovery, and external power lost or recovery;

24. Up to 10 SMS Alert and dial numbers, can program to receive specified alarm message;

25. Inbuilt large capacity automatically rechargeable backup battery;

26. Industrial class design suitable for long time work applications;

27. Using metal shell, protection class IP67. Metal shell and system security isolation, especially suitable for industrial applications in the field;

28. L250 * W220 * H70mm, weatherproof metal enclosure.
