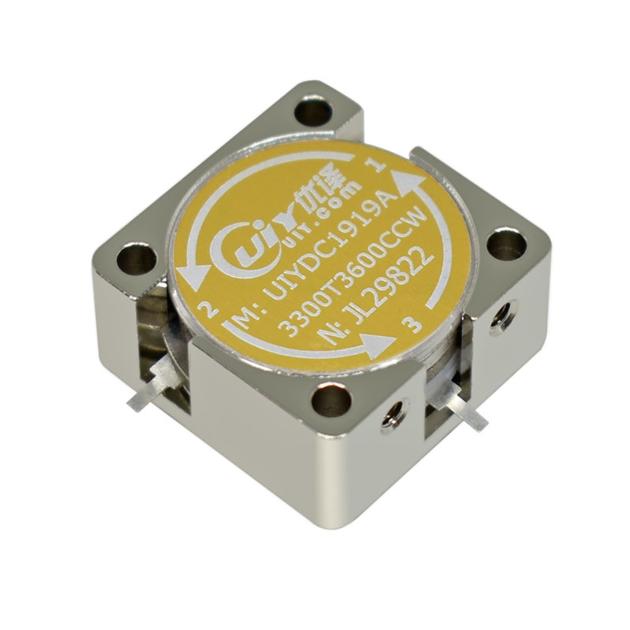

S Band 3300~3600MHz RF Drop in Circulator
| Price: | US$ 15 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | UIYDC1919A3300T3600CCW | Brand Name: | UIY |
|---|
| Certification: | ROHS, ISO9001, ISO14001 |
|---|---|
| Specification: |
Frequency range 10MHz to 40GHz, up to 2000W power.
Military, space and commercial applications. Low insertion loss, high isolation, high power handling. Custom design available upon request. |
Packaging & Delivery
| Packaging: | UIY Standard Carton For Standard Export Package D |
|---|---|
| Delivery/Lead Time: | 2 weeks |
| Production Capacity: | 1000pcs/month |
Product Description
Model Number: UIYDC1919A3300T3600CCW
Frequency Range: 3300~3600MHz
Bandwidth:30%
Insertion loss:0.3dB
Isolation:23dB
VSWR:1.2
Forward Power: 100W
Reverse Power: 100W
Connector Type: TAB
Temperature: -40~+85℃

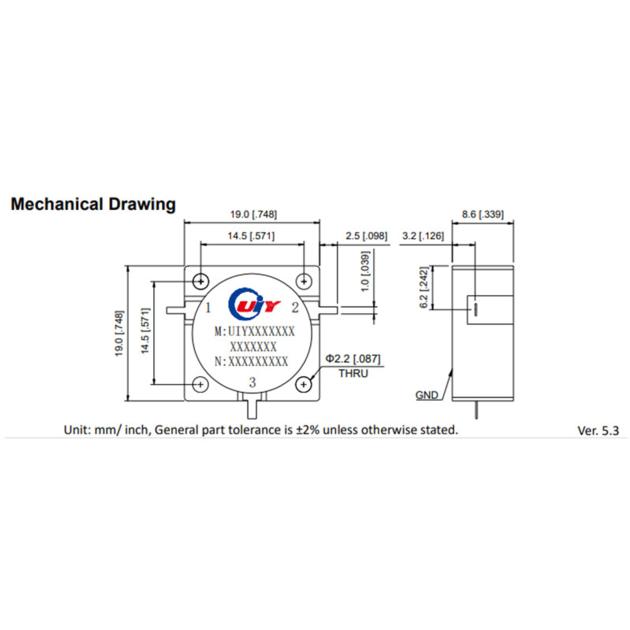

Dimension: 19×19×8.6mm
UIY Inc. provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.
Since 2003, UIY Inc. has become a critical supplier and partner to major companies serving the Aerospace, Military, Radar, Defense, Medical, Communications and Specialty Test industries.
UIY's product offerings include RF Isolators, RF Circulators, RF Filters, Power Divider / Splitter, Duplexer/Triplexer, Hybridge Combiner, Coaxial Termination, Coaxial Attenuator, Directional Coupler, Waveguide to Coaxial Adapter.
We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.
|
