Right Angle Prisms
| Price: | US$ 0.1 |
|---|---|
| Minimum Order: | 10 |
| Payment Terms: | 100%T/T |
| Port of Export: | fuzhou |
Product Details
| Model No.: | Brand Name: | UPT |
|---|
| Certification: | ISO90001 |
|---|---|
| Specification: |
Material: BK7 Grade A Optical Glass Dimension Tolerance (mm): +/-0.2 (General), +0/-0.05 (High Precision) Angle Tolerance: 5 arc min. (General), 3 arc sec. (High Precision) Flatness (per 25mm@633nm): λ/2(General), λ/10 (High Precision) Clear Aperture: >80% (small size),>95%(large size) Surface Quality: 60/40 (General), 10/5 (High Precision) Bevel (mm): 0.1-0.5 Coating: Uncoated or AR /Metal/HR coating--Unpon Request |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 4weeks |
| Production Capacity: | 9999 |
Product Description

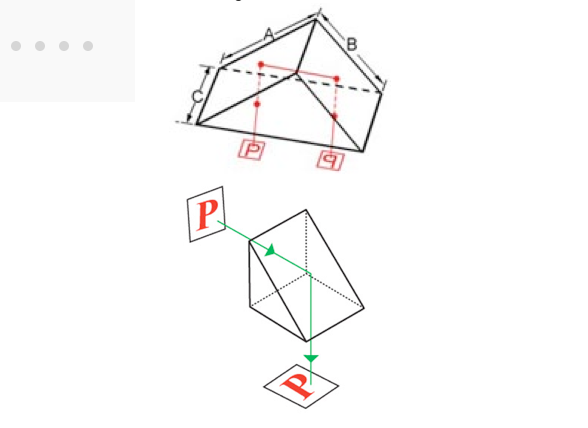

A right-angle prism is used as a mirror to deviate light through 90 degrees and also as a reflector to deflect light through 180 degrees by total internal reflection.
Applications:
•Imaging Optical System
•Optical Measurement System
•Optical Switches
•Beam Alignment
Note for Right Angle Prism:
(1). Besides Fused Silica, custom-made Right Angle Prisms, which are made of other optical materials,
such as N-BK7, N-SF11, Pyrex, etc. are available.
(2). Typical dimension is 5.0mm, 10.0mm, 12.7mm, 15.0mm, 20.0mm, 25.4mm, 30.0mm, dimension from 2.0x2.0x2.0 mm to 150.0x150x150.0 mm is available.
(3). Better precision such as 1 min., 30sec., 15sec., 10sec., and 5sec. is available.
(4). Typical bevel is 0.25mmx45o, other bevel from 0.1mmx45o to 0.5mmx45o is available upon request.
(5). Anti-Reflective(AR), High-Reflective(HR), Partial-Reflective(PR) coating prisms are available.
|
