RS485 GSM Modems, RS485 to GPRS

Introduction

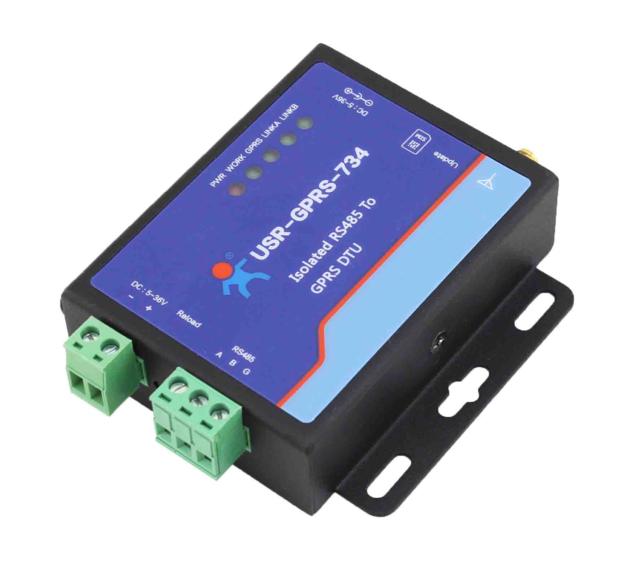

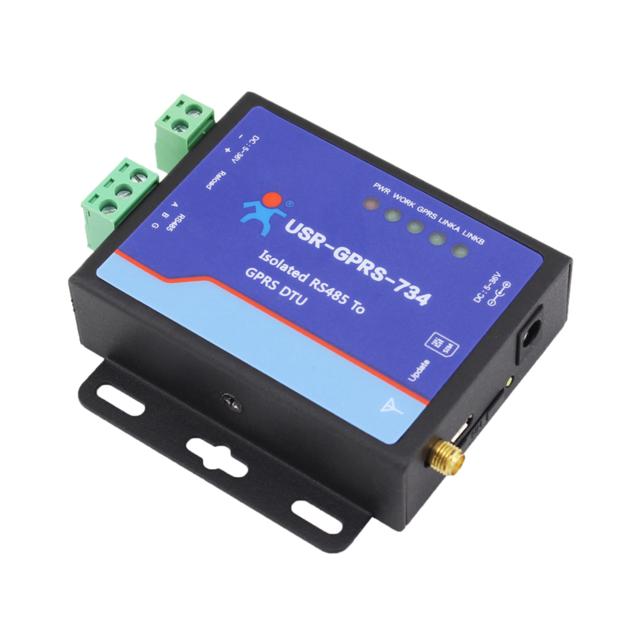

USR-GPRS232-734 is a new GPRS device serial gprs modem, developed by USR IOT in 2016. Maturation software functions, covering mostly conventional application scenarios. Users can realize Serial to Network bidirectional transparent data transmission via simple configuration. Supporting custom registration package, heart beat package. Supporting 2 Socket Connection, and USR cloud join in.
USR-GPRS232-734 use DC power supply and terminal power supply, supporting 5.0V~36.0V wide voltage power supply. RS485 circuit using electrical isolation scheme, has anti-interference ability, suitable for strong electromagnetic interference environment, such as utility industry.
Features

Support:GSM850/900,DCS1800/1900，able to be used around the world
Support GSM/GPRS/EDGE and 2G/3G/4G card, but don’t support 3G/4G network
Each connection support 4KB data cache, when in abnormal connection choosing data cache to avoid data lost
Support sending registration package and heartbeat package data
Support remote configuration via SMS
Support multi work modes: SMS transmission mode, network transmission mode and HTTPD mode
Support basic instruction set and extension instruction set
Support establishing, maintaining and closing network connection by using extension instruction set, more flexibility in application
Support sending Chinese/English SMS via simple instructions, avoiding PDU sending Chinese SMS which complex and hard use
Support class RFC2217,can modify module serial parameter via network dynamically
Support wide voltage 5~36V power supply, using DC power supply and terminal power supply
RS485 circuit using electrical isolation scheme, has anti-interference ability
Application Field

Power industry: power remote meter reading, substation monitoring, power line monitoring
Municipal industry: street lamp remote monitoring management, pipe network remote monitoring, urban energy consumption monitoring
Oil industry: remote monitoring of oil-gas well, GPRS remote oilfield automation detection monitoring system, Gas pipe network monitoring system solutions
Environmental protection industry: pollution sources monitoring, atmospheric environment monitoring, noise monitoring, dust monitoring
Agricultural application: greenhouse remote monitoring and management, aquaculture monitoring management, agricultural water pump monitoring management
Application

1.Application in public server
2.Use network to extend serial communication distance
3. Server transit mode
All USR products will be tested by R&D first, then production test again.(ESD Test,Surge/EFT Test, High/Low Temperature Test, EMC and LVD environment reliability test, etc.)
USR products are exported to more than 100 countries and regions, get approvals like CE, FCC, ROHS, CCC, KC, IC, SRRC, etc.
