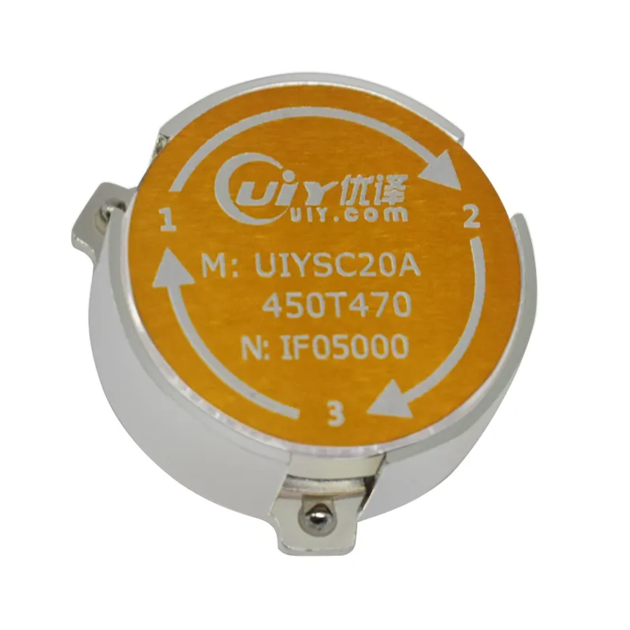

RF Surface Mount Circulator Module From 0.45 ~4.2 GHz (SMT)

Product Name

Surface Mount Circulator
Model Number

UIYSC20A

Frequency Range (GHz)

0.45 ~ 4.2

Bandwidth Max

16%

Insertion Loss Max (dB)

0.25

Isolation Min (dB)

25

VSWR Max

1.15

Forward Power (W)

60

Reverse Power (W)

60

Connector Type

SMT

Temperature (®C)

-40 ~ +85

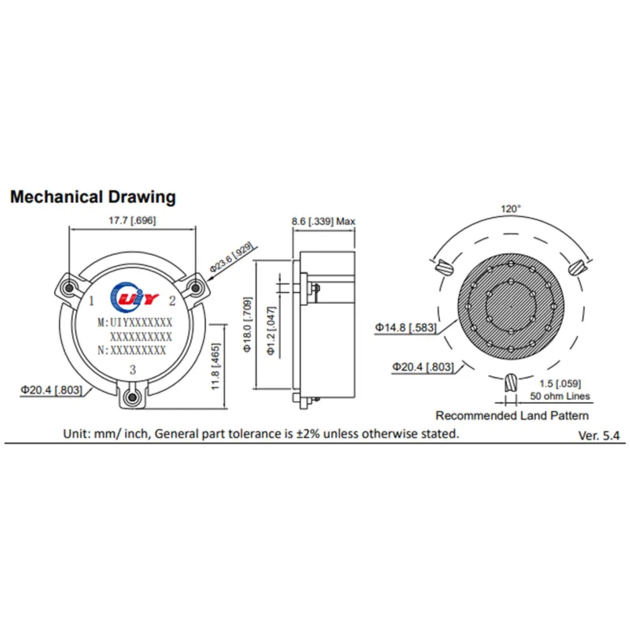

Dimension L*W*H(mm)

∅20.4 * 8.6

Warranty

1 Year

Professional Radio Frequency (RF) / Microwave Device Supplier

Professionally customized Radio Frequency (RF) / Microwave Components Manufacture.



→Found in 2003 & located in Shenzhen China. UIY is a professional manufacturer engaged in research, development, design, production sale & service of the civilian & military microwave communication device.



→Since its foundation, UIY has been keeping in-depth cooperation & communication with renowned enterprises, institutions, scientific research institutions. Our products are with well-equipped testing facilities & strong technical force. Selling well in all cities and provinces around China, our products are also sold all over the world.



→In recent years, our company has introduced a series of advanced equipment. The frequency range is from DC to 112GHz & average power is up to 20KW, with a wide range, good quality, reasonable price and stylish designs, our products are widely used in civil, military, telecommunication, armarium manufacturer, laboratory, aviation, aerospace, space technology & other fields.



→Main product: 1) RF Isolators. 2)RF Circulators. 3)RF Filters. 4)Power Divider / Splitter.5) Duplexer/Triplexer. 6)Hybridge Combiner. 7)Coaxial Termination. 8)Coaxial Attenuator. 9)Directional Coupler. 10)Waveguide to Coaxial Adapter etc.
