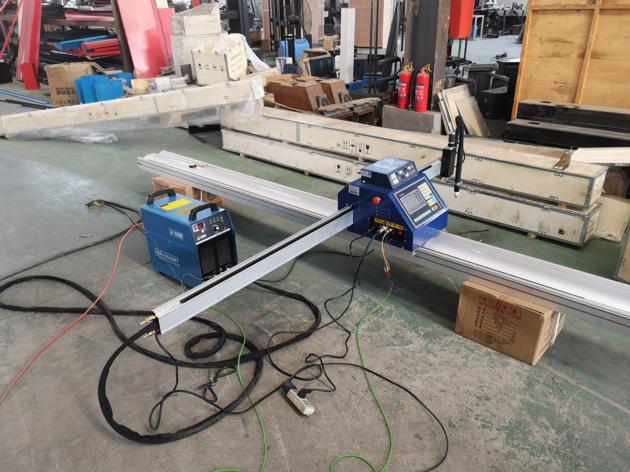

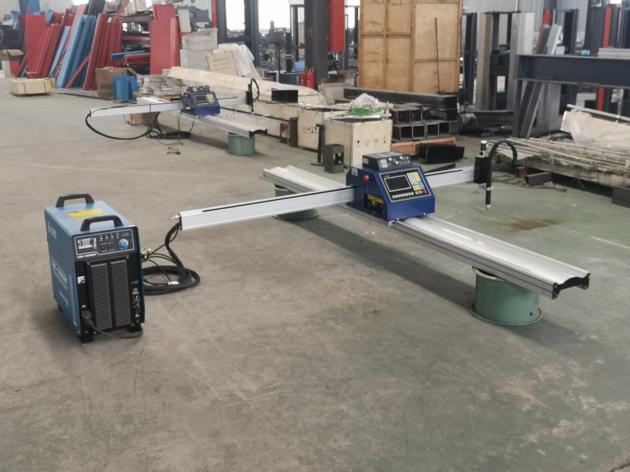

REBOUND CNC . RB1530 Portable CNC flame cutting machine

RB1530 Portable CNC flame cutting machine is a kind of cutting equipment with high efficiency and energy saving. It is a kind of numerical control cutting machine with light weight and economic price. It is suitable for cutting steel plates of various thicknesses and can be equipped with plasma cutting.


Portable CNC flame cutting machine features
1. Economical and Practical, especially for small and medium-sized enterprises;
2. Small volume, light weight, easy to move, no occupying fixed site;
3. Preset graphics database, can store over 1000 cutting program files;
4. Motors, drives,electromagnetic valve, and other important components, all use well-known brands at home and abroad;
5. Reserve plasma cutting function interface, support for plasma cutting;
6. Smart design, can be moved everywhere you need.

Portable CNC flame cutting machine parameters:
Model RB-1530
Working Voltage AC 220V , 50HZ
Working Size 1500mm*3000mm
Length of Crossbar 1800 mm
Length of Longitudinal Guide 3500 mm
Max Cutting Speed 10000mm/min
Cutting Thickness 0-200mm
Precision ¯0.01mm
File output mode USB interface
Weight 200 KGS
