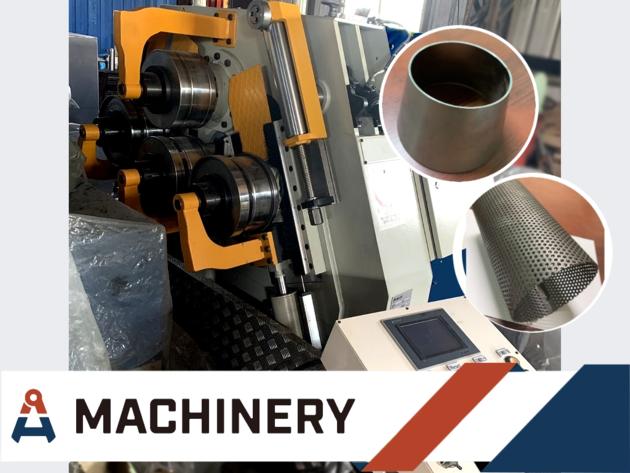

Profile Pipe Bender for (Thickness 1.5/0.06 - 80/3.15, Φ10 - Φ50 mm/inch)
| Price: | US$ 10000-100000 / Set |
|---|---|
| Minimum Order: | 1 Set |
| Payment Terms: | T/T |
| Port of Export: | Taichung Port |
Product Details
| Model No.: | ATB-1 Series | Brand Name: | AH |
|---|
| Certification: | |
|---|---|
| Specification: |
- Sheet Metal O.D. [mm/inch]= 12/0.47, 15/0.59, 20/0.79, 25/0.98, 30/1.18, 32/1.26, 45/1.77, 50/1.97, 60/2.36, 65/2.56, 70/2.76, 80/3.15, 100/3.94, 120/4.72, 125/4.92, 140/5.51, 150/5.91, Φ10, Φ15, Φ17.2, Φ35, Φ50, Φ60, Φ76.1, Φ100
- Sheet Metal Thickness [mm/inch]= 1.5/0.06, 2/0.08, 3/0.12, 3.5/0.14, 4/0.16, 5/0.20, 7/0.28, 9/0.35, 10/0.39, 12/0.47, 15/0.59, 20/0.79, 25/0.98, 30/1.18, 32/1.26, 42/1.65, 45/1.77, 50/1.97, 55/2.17, 60/2.36, 70/2.76, 80/3.15, Φ10, Φ15, Φ35, Φ50 - Sheet Metal Height [mm/inch]= 3/0.12, 4/0.16, 5/0.20, 6/0.24, 7/0.28, 8/0.31 - Min. Diameter [mm/inch]= 200/7.87, 250/9.84, 280/11.02, 300/11.81, 350/13.78, 400/15.75, 450/17.72, 500/19.69, 550/21.65, 600/23.62, 650/25.59, 700/27.56, 800/31.50, 850/33.46, 900/35.43, 1000/39.37, 1200/47.24, 1300/51.18 - Main Motor [HP/kw]= 4/3.0, 5.5/4.1, 10/7.5 - Diameter of Top Shaft [mm/inch]= 65/2.56, 80/3.15, 100/3.94 - Diameter of Lower Shaft [mm/inch]= 50/1.97, 70/2.76, 100/3.94 - Range of Bending Speed [m/min]= 5, 6, 7 - Weight [Kgs/Lbs]= 1100/2425, 1700/3748, 3650/8047 - Overall Dimensions [mm] [LxWxH]= 1200x850x1200, 1450x1000x1400, 1465x2000x1700 - Type= Profile - Shape= 1 - 11 Type - For= Heavy Duty |
Packaging & Delivery
| Packaging: | Carton or Crate |
|---|---|
| Delivery/Lead Time: | Around 90 days after order is confirmed. |
| Production Capacity: | 30 Set Up/Year |
Product Description
With over 20 years of international experience, AH Machinery supplies a wide range of top-quality machinery made in Taiwan, including Profile Pipe Bender, Profile Tubing Bender, Profile Tube Bender, Tube Profile Bending Equipment, Profile Tube Bending Machines, Profile Pipe Bending Machines.
Customized specifications are available to meet your unique needs.
/FEATURES/
#Customized_specifications_are_available.
#High_caliber_and_Accurate.
/APPLICABLE METERIALS/
Conduit Tubes, Fumiture Iron Pipe, Gas Tubes, Hard Copper & Aluminum, Hydraulic Steel ST35, Mepla, Geberit & Similar Tubes, Mild Steel [EN:S275JO], Soft Brass, Soft Copper, Stainless Steel AISI304-316, Stainless Steel AISI308, Standard Steel Tubes.
/APPLICATIONS/
Metal Fabrication Industry, Construction Industry, Automotive Manufacturing Industry, Furniture Manufacturing Industry, Aerospace Industry, Shipbuilding Industry, Railroad Industry, Energy Sector.
/FINAL PRODUCTS/
Architectural Components, Handrails, Balustrades, Decorative Elements, Furniture Frames, Chair Frames, Table Bases, Other Furniture Components, Automotive Components, Exhaust Systems, Roll Cages, Other Structural Elements, Aerospace Parts, Construction Structures, Support Frames, Trusses, Other Load-Bearing Components, Marine Applications, Railings and Balustrades, Industrial Pipelines.
Welcome to contact us!
A Homia will satisfy you as long as you give us a try.
Contact us today for high-caliber and accurate machinery solutions.
