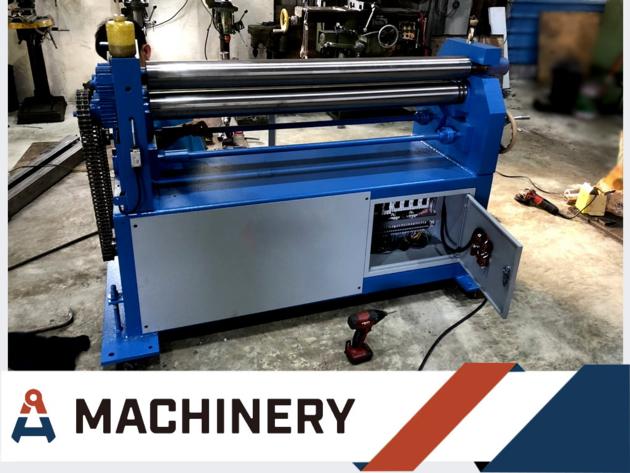

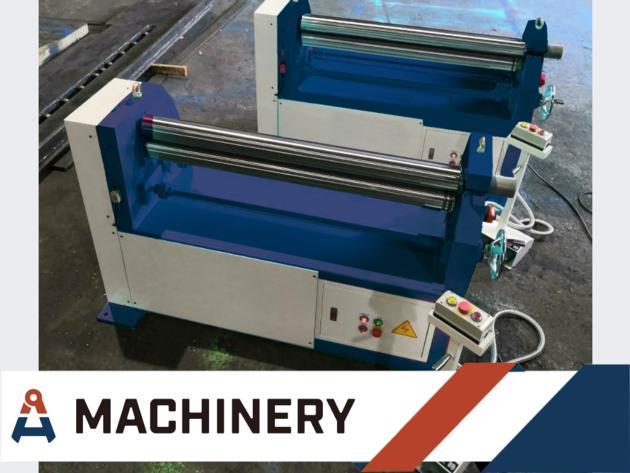

Power 3-Roll Plate Bending Machines for (1.6, 2.5, 3.2, 4.0, 4.5 tons)
| Price: | US$ 10000-100000 / Set |
|---|---|
| Minimum Order: | 1 Set |
| Payment Terms: | T/T |
| Port of Export: | Taichung Port |
Product Details
| Model No.: | APR Series | Brand Name: | AH |
|---|
| Certification: | |
|---|---|
| Specification: |
- Capacity [mm]= 1.6x1270, 2.5x1550, 3.2x1270, 4.0x1550, 4.5x1270
- Machine Tonnage [tons]= 1.6, 2.5, 3.2, 4.0, 4.5 - Main Motor [HP/KW]= 1/0.7, 3/2.2, 5/3.7 - Diameter of Top Shaft [mm]= 75, 100, 110, 120 - Weight [Kgs/Lbs]= 800/1764, 900/1984, 1050/2315, 1050/2315, 1250/2756, 1400/3086, 1500/3307 - Length of Metal Sheets [mm]= 1270, 1550 - Overall Dimensions [mm] [LxWxH]= 1700x650x1150, 1950x750x1150, 1950x750x1150, 2050x850x1040, 2250x750x1150, 2750x800x1200 - Type= Power - Pinch= Single - For= Light / Medium Duty - Roll= 3 |
Packaging & Delivery
| Packaging: | Carton or Crate |
|---|---|
| Delivery/Lead Time: | Around 90 days after order is confirmed. |
| Production Capacity: | 30 Set Up/Year |
Product Description
With over 20 years of international experience, AH Machinery supplies a wide range of top-quality machinery made in Taiwan, including 3-Roll Plate Bending Machines, Power 3-Roll Plate Bending Machines, Power 3-Roll Metal Bending Machines, 3-Roll Sheet Bending Machines, 3-Roll Metal Bending Machines, Power 3-Roll Sheet Bending Machines.
Customized specifications are available to meet your unique needs.
/STANDARD ACCESSORIES/

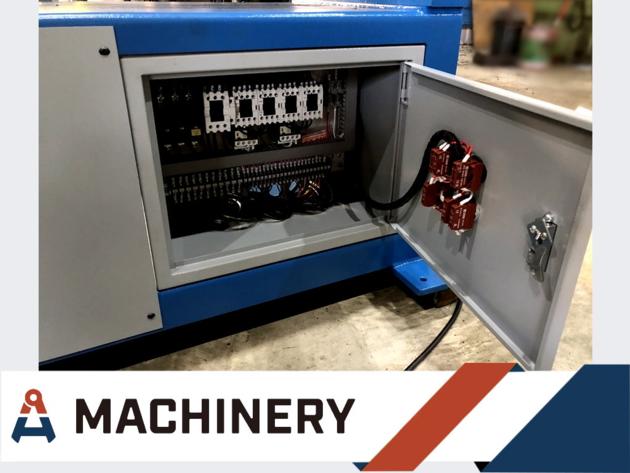

v Motor & Control Box

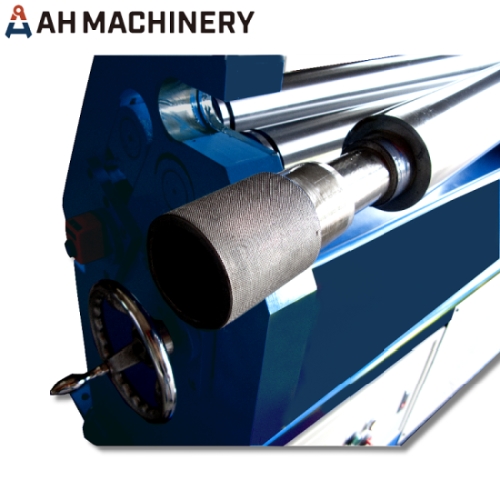

v Hardened Rolls
v Movable Control Panel with Foot Switch

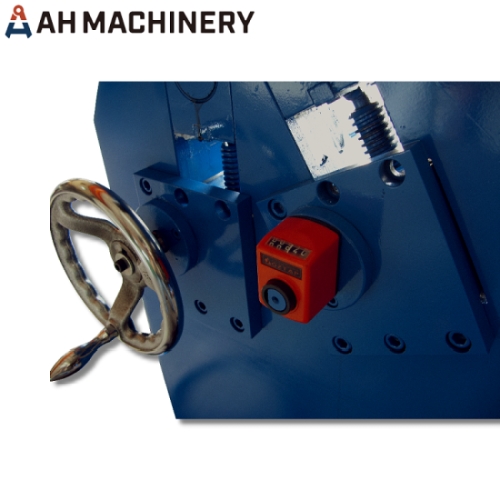

v Position Indicator
/ADVANTAGE/
v Rolls driven by motorized.
v Wire grooves are standard.
v Bending capacity is between 1.6 - 4.5 mm thickness.
v The machine body, frame and steel bar connections are all stress relieved after the welding operation.
v All transmission is built into one side .thus,it is easy to swing out the upper roll for workpiece removal.
v The design with three rolls mounted independently enables high productivity and easy adjustment of the rolls.
v The whole body is machined with CNC Five Faces Machining Center, utilizing a fixed single reference point. This allows for parallelism of all axes and precise surfaces, as well as longevity and precision critical characteristics of the machine.
/FEATURES/
#Customized_specifications_are_available.
#High_caliber_and_Accurate.
/APPLICATIONS/
Metal Fabrication Workshops, Shipbuilding Industry, Oil and Gas Industry, Aerospace Industry, Automotive Manufacturing Industry, Heavy Machinery Manufacturing, Railway Industry, Construction Industry, Energy Sector.
/FINAL PRODUCTS/
Cylindrical Tanks, Cylindrical Vessels, Cylindrical Tanks for Petrochemical, Cylindrical Tanks for Oil, Cylindrical Tanks for Gas, Cylindrical Tanks for Water Treatment, Pressure Vessels, Pressure Vessels for Industrial Processes, Pressure Vessels for Energy Production, Pressure Vessels for Chemical Manufacturing, Pipe and Tube Bends, Cones and Transitions, Architectural Components, Curved Metal Panels, Decorative Elements , Curved Beams, Building Construction and Design, Railway Components, Aerospace Components, Curved Components for Aircraft, Fuselage Sections for Aircraft, Wings for Aircraft, Structural Elements for Aircraft, Automotive Parts, Manufacturing Curved Components for the AutomotiveIndustry, Automotive Chassis Parts, Automotive Frames, Automotive Exhaust System Components, Structural Steel Components, Wind Tower Segments, Oil and Gas Pipeline Sections, Industrial Equipment Components, Various Components for Heavy Machinery, Industrial Equipment, Industrial Curved Frames, Industrial Brackets, Industrial Structural Elements.
Welcome to contact us!
A Homia will satisfy you as long as you give us a try.
Contact us today for high-caliber and accurate machinery solutions.
