Position water sensing cable
| Price: | US$ 13 / Meter |
|---|---|
| Minimum Order: | 1 meter |
| Payment Terms: | T/T in advance |
| Port of Export: | Shenzhen ,China |
Product Details
| Model No.: | P-LFP1000 | Brand Name: | Prosino |
|---|
| Certification: | CE , Rohs |
|---|---|
| Specification: |

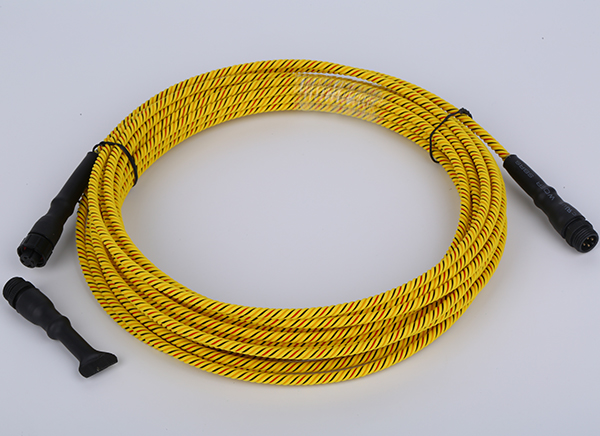

Product Name: Water Sensing Cable
Model : P-LFP1000 Features Cable Diameter : 0.24 in(6.0mm)nominal Sensing Wires : 2×30 AWG with jacket of conductive Fluoro polymer Carrier : Fluoro polymer Cable weight(50 ft/15m length) : 2.3 lb(1kg) Cable color : High-visibility yellow Technical information Breaking strength : Cable only:160lb(72kg)including connectors:70lb(32kg) Cut-through force : >50lb with 0.05(>22kg with 0.13mm)in blade/cross head speed 0.2in/min Abrasion resistance : >65 cycles per UL719 Maximum continuous operating temperature : 70 degree Performance Data Leak size to alarm(tap water) : 2 in(50mm) maximum at any point along sensing cable.up to 5000 ft maximum system length Drying time : Cable dries and resets within 15 seconds removal rom standing water wash with clean damp cloth. |
Packaging & Delivery
| Packaging: | Box |
|---|---|
| Delivery/Lead Time: | 2-3 days |
| Production Capacity: | 20,000 meters per Week |
Product Description

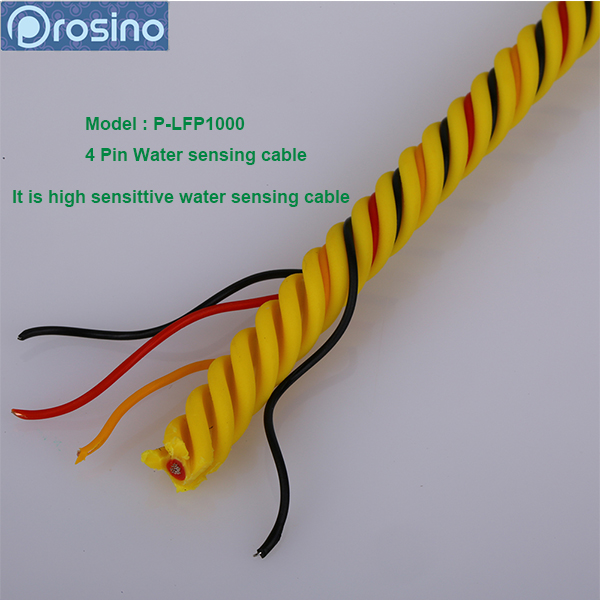

Model : P-LFP1000
Cable Diameter : 0.24 in(6.0mm)nominal

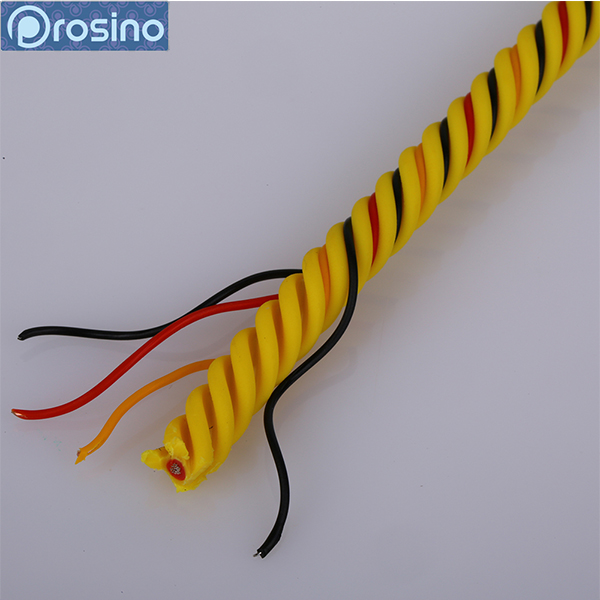

Sensing Wires : 2×30 AWG with jacket of conductive Fluoro polymer
Carrier : Fluoro polymer
Cable weight(50 ft/15m length) : 2.3 lb(1kg)
Cable color : High-visibility yellow
Position Water Sensing Cable technical information
Breaking strength : Cable only:160lb(72kg)including connectors:70lb(32kg)
Cut-through force : >50lb with 0.05(>22kg with 0.13mm)in blade/cross head speed 0.2in/min
Abrasion resistance : >65 cycles per UL719
Maximum continuous operating temperature : 70 degree
Performance Data
Leak size to alarm(tap water) : 2 in(50mm) maximum at any point along sensing cable.up to 5000 ft maximum system length
Drying time : Cable dries and resets within 15 seconds removal rom standing water wash with clean damp cloth.
|
