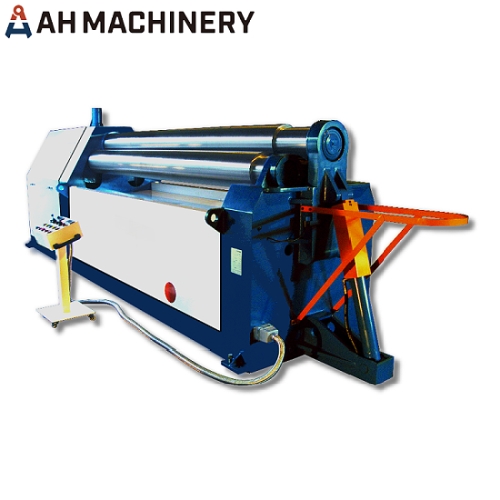

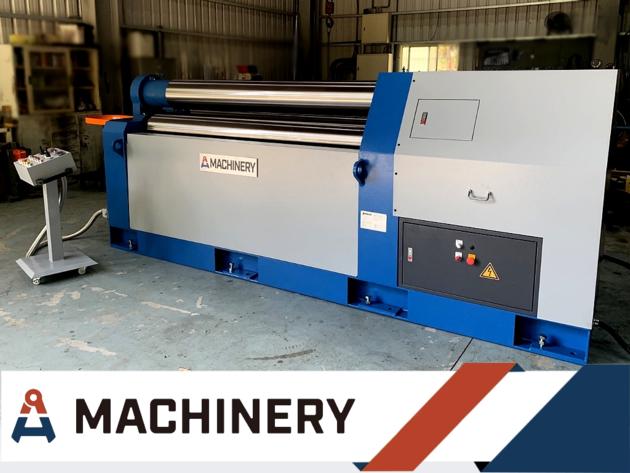

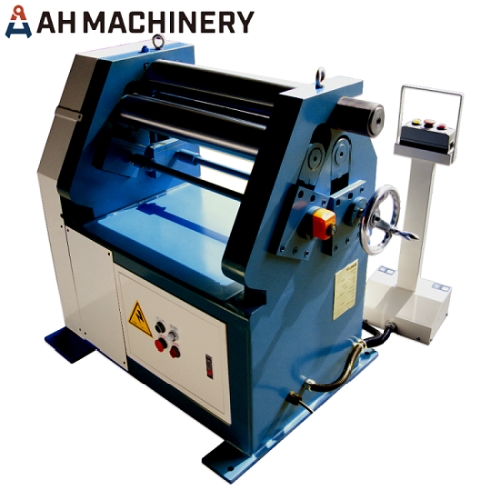

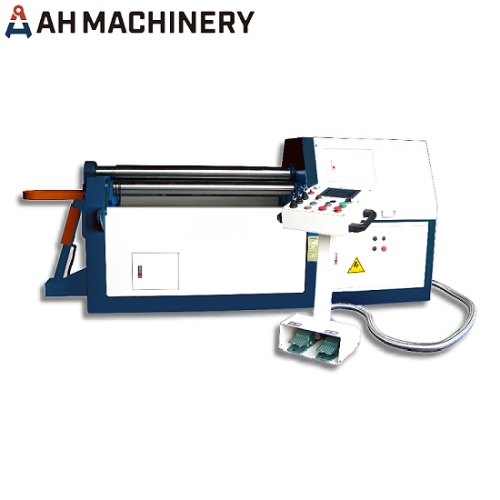

Plate Rolling Bending Machines for (30, 60, 100, 150, 200, 220, 300, 450, 600 tons)

Price:	US$ 10000-100000 / Set
Minimum Order:	1 Set
Payment Terms:	T/T
Port of Export:	Taichung Port

Product Details

Model No.:	APR / AHR-3 / AHR-4 Series	Brand Name:	AH

Certification:
Specification:	- Tonnage [tons]= 30, 60, 100, 150, 200, 220, 300, 450, 600 - Bending Length [mm/inch]= 1220/48.0, 1232/48.5, 1500/59.1, 1830/72.0, 1855/73.0, 2000/78.7, 2440/96.0, 2465/97.0, 2500/98.4, 3000/118.1, 3048/120.0, 3075/121.0, 3100/122.0, 3700/145.7, 4000/157.5 - Bending Thickness [mm/GA]= 1.0/20, 1.2/18, 1.6/16, 2.0/14, 2.5/12, 3.0/11, 3.5/10, 4.0/8, 4.5/7, 6.5/3 - Capacity [mm]= 1.6x2000, 2.0x1600, 2.0x3220, 2.5x2600, 2.8x3200, 3.2x2000, 3.4x3200, 4.2x2600, 4.2x3200, 4.2x3800, 4.8x5100, 6.0x2000, 6.0x3800, 6.0x4000, 6.2x2600, 6.5x5100, 7.0x3200, 8.0x6200, 9.0x3800, 10x5100, 10.5x3200, 11x6200, 12x4000, 13x5100, 16x4000 - Max. Open Height [mm/inch]= 100/3.9 - Working Height [mm/inch]= 800/31.5, 900/35.4 - Distance Between Housing [mm/inch]= 1300/51.2, 1600/63.0, 2200/86.6, 2600/102.4, 3000/118.1, 3200/126.0, 4000/157.5, 4100/161.4, 5000/196.9, 5100/200.8 - Stroke [mm/inch]= 120/4.7, 150/5.9, 200/7.9, 225/8.9, 250/9.8, 275/10.8, 300/11.8 - Rake Angle [®]= 0-135® - Throat Depth [mm/inch]= 200/7.9, 250/9.8, 300/11.8, 350/13.8, 400/15.7 - Main Motor [HP/kw]= 2/1.49, 3/2.2, 4 / 3.6, 5/3.6, 7/5.5, 7.5/5.6, 9/7.4, 10/7.5, 15/11.2, 25/18.6, 30/22.4, 40/29.8 - Strike Depth-Stop Adjustment [mm/inch]= 70/2.8, 100/3.9, 120/4.7, 150/5.9, 180/7.1 - Length Of Table [mm/inch]= 1600/63.0, 2000/78.7, 2600/102.4, 3200/126.0, 3800/149.6, 4000/157.5, 4100/161.4, 5100/200.8, 6200/244.1 - Floor-Pit Depth [mm/inch]= 365/14.4, 480/18.9, 750/29.5, 780/30.7, 850/33.5, 1050/41.3, 1100/43.3, 1180/46.5, 1300/51.2, 1500/59.1, 1700/66.9 - Min. Reverse Bend= 8 [5/16"] - Beam Adjustment= 25 [1"] - Width Of Table [mm/inch]= 120/4.7, 150/5.9, 200/7.9, 250/9.8, 300/11.8 - Day Light [mm/inch]= 250/9.8, 300/11.8, 340/13.4, 380/15.0, 420/16.5, 450/17.7, 500/19.7, 550/21.7 - Suitable for= SPHC, SS 400, SUS 304 - Type= Power, NC Hydraulic, Hydraulic, Manual - Roll= 3, 4 - For= Light / Medium / Heavy Duty

Certification:

Specification:

- Tonnage [tons]= 30, 60, 100, 150, 200, 220, 300, 450, 600
- Bending Length [mm/inch]= 1220/48.0, 1232/48.5, 1500/59.1, 1830/72.0, 1855/73.0, 2000/78.7, 2440/96.0, 2465/97.0, 2500/98.4, 3000/118.1, 3048/120.0, 3075/121.0, 3100/122.0, 3700/145.7, 4000/157.5
- Bending Thickness [mm/GA]= 1.0/20, 1.2/18, 1.6/16, 2.0/14, 2.5/12, 3.0/11, 3.5/10, 4.0/8, 4.5/7, 6.5/3
- Capacity [mm]= 1.6x2000, 2.0x1600, 2.0x3220, 2.5x2600, 2.8x3200, 3.2x2000, 3.4x3200, 4.2x2600, 4.2x3200, 4.2x3800, 4.8x5100, 6.0x2000, 6.0x3800, 6.0x4000, 6.2x2600, 6.5x5100, 7.0x3200, 8.0x6200, 9.0x3800, 10x5100, 10.5x3200, 11x6200, 12x4000, 13x5100, 16x4000
- Max. Open Height [mm/inch]= 100/3.9
- Working Height [mm/inch]= 800/31.5, 900/35.4
- Distance Between Housing [mm/inch]= 1300/51.2, 1600/63.0, 2200/86.6, 2600/102.4, 3000/118.1, 3200/126.0, 4000/157.5, 4100/161.4, 5000/196.9, 5100/200.8
- Stroke [mm/inch]= 120/4.7, 150/5.9, 200/7.9, 225/8.9, 250/9.8, 275/10.8, 300/11.8
- Rake Angle [®]= 0-135®
- Throat Depth [mm/inch]= 200/7.9, 250/9.8, 300/11.8, 350/13.8, 400/15.7
- Main Motor [HP/kw]= 2/1.49, 3/2.2, 4 / 3.6, 5/3.6, 7/5.5, 7.5/5.6, 9/7.4, 10/7.5, 15/11.2, 25/18.6, 30/22.4, 40/29.8
- Strike Depth-Stop Adjustment [mm/inch]= 70/2.8, 100/3.9, 120/4.7, 150/5.9, 180/7.1
- Length Of Table [mm/inch]= 1600/63.0, 2000/78.7, 2600/102.4, 3200/126.0, 3800/149.6, 4000/157.5, 4100/161.4, 5100/200.8, 6200/244.1
- Floor-Pit Depth [mm/inch]= 365/14.4, 480/18.9, 750/29.5, 780/30.7, 850/33.5, 1050/41.3, 1100/43.3, 1180/46.5, 1300/51.2, 1500/59.1, 1700/66.9
- Min. Reverse Bend= 8 [5/16"]
- Beam Adjustment= 25 [1"]
- Width Of Table [mm/inch]= 120/4.7, 150/5.9, 200/7.9, 250/9.8, 300/11.8
- Day Light [mm/inch]= 250/9.8, 300/11.8, 340/13.4, 380/15.0, 420/16.5, 450/17.7, 500/19.7, 550/21.7
- Suitable for= SPHC, SS 400, SUS 304
- Type= Power, NC Hydraulic, Hydraulic, Manual
- Roll= 3, 4
- For= Light / Medium / Heavy Duty

Packaging & Delivery

Packaging:	Carton or Crate
Delivery/Lead Time:	Around 90 days after order is confirmed.
Production Capacity:	30 Set Up/Year

Product Description

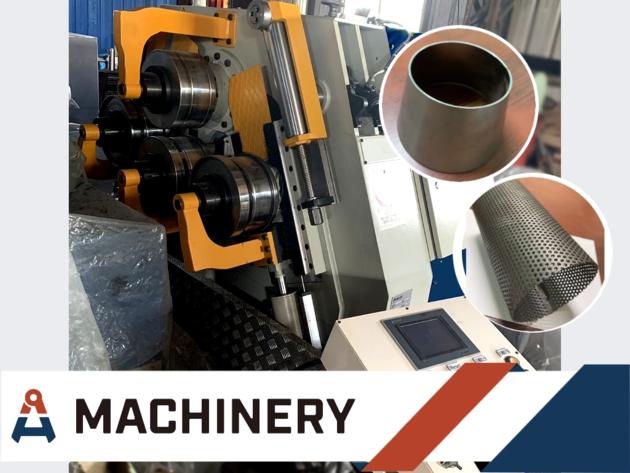

With over 20 years of international experience, AH Machinery supplies a wide range of top-quality machinery made in Taiwan, including Manual Plate Benders, 4-Roll Bending Machines, Roller Benders, 3-Roll Bending Machines, Hydraulic Plate Rolling Machines, NC Plate Rolling Machines, Plate Bending Machines, Profile Bending Machines.
Customized specifications are available to meet your unique needs.

/FEATURES/
#Customized_specifications_are_available.
#High_caliber_and_Accurate.

/APPLICATIONS/
Metal Fabrication Industry, Pressure Vessel Manufacturing Industry, Tank Manufacturing Industry, Shipbuilding Industry, Pipeline Construction Industry, Architectural Metalwork Industry, Bridge Construction Industry, Aerospace Industry, Wind Tower Manufacturing Industry, Railroad Industry, Energy Sector, Automotive Industry, Pipe and Tube Manufacturing Industry, Construction Equipment Manufacturing, Custom Metal Fabrication Industry.

/FINAL PRODUCTS/
Cylindrical Tanks, Pressure Vessels, Conical Sections, urved Structural Components, Pipe Sections, Tube Sections, Wind Turbine Tower Segments, Railroad Components, Bridge Components, Aerospace Components, Automotive Parts, Architectural Features, Construction Machinery Parts, Custom Fabricated Products, Pipe Bends, Elbows, Artistic Metalwork.

Welcome to contact us!
A Homia will satisfy you as long as you give us a try.
Contact us today for high-caliber and accurate machinery solutions.

https://ahmatw.com/
https://linkedin.com/in/ah-machinery-8836401b4/
https://facebook.com/ahmachinery.tw
https://instagram.com/ah_machinery_tw

Plate Rolling Bending Machines for (30, 60, 100, 150, 200, 220, 300, 450, 600 tons)
