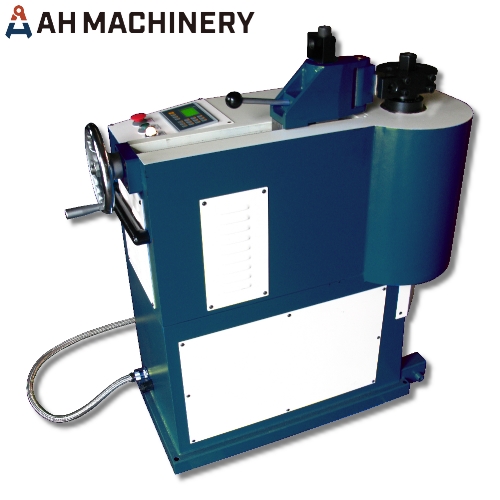

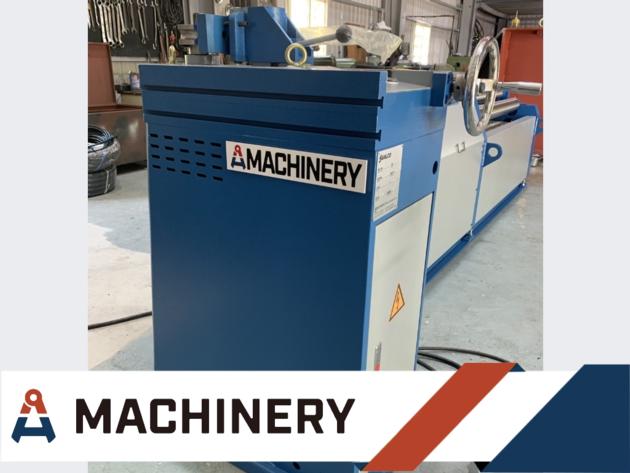

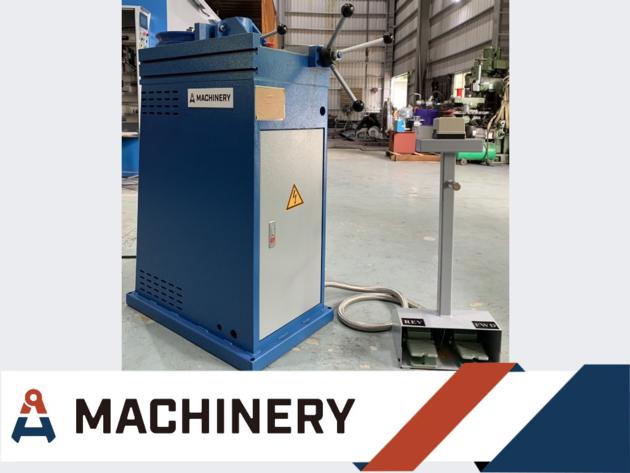

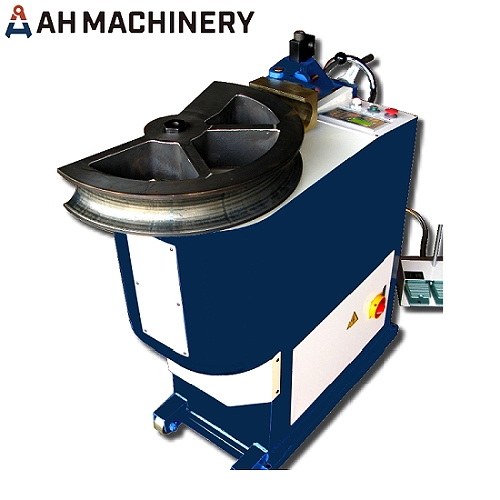

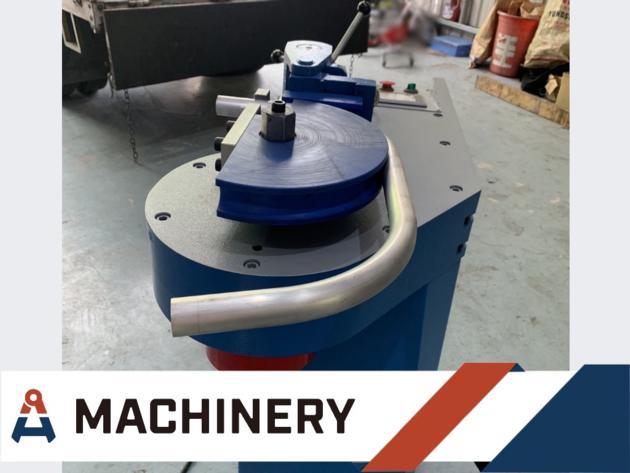

Pipe Bending Machines for (Thickness 1/0.04 - 80/3.15, Φ10 - Φ60, UPN100, UPN120, UPN140)
| Price: | US$ 10000-100000 / Set |
|---|---|
| Minimum Order: | 1 Set |
| Payment Terms: | T/T |
| Port of Export: | Taichung Port |
Product Details
| Model No.: | ATB-1 / ATB-2 / ATB-3 Sereis | Brand Name: | AH |
|---|
| Certification: | |
|---|---|
| Specification: |
- Sheet Metal Thickness [mm/inch]= 1/0.04, 1.5/0.06, 1.8/0.07, 2/0.08, 2.5/0.10, 2.6/0.10, 2.77/0.11, 2.9/0.12, 3/0.12, 3.2/0.13, 3.5/0.14, 4/0.16, 5/0.20, 5.48/0.22, 6/0.24, 7/0.28, 8/0.31, 9/0.35, 10/0.39, 12/0.47, 15/0.59, 20/0.79, 25/0.98, 30/1.18, 32/1.26, 35/1.38, 40/1.57, 42/1.65, 45/1.77, 50/1.97, 55/2.17, 60/2.36, 70/2.76, 80/3.15, Φ10, Φ15, Φ20, Φ30, Φ35, Φ50, Φ60, UPN100, UPN120, UPN140
- Min. Diameter [mm/inch]= 200/7.87, 250/9.84, 280/11.02, 300/11.8, 350/13.78, 380/14.96, 400/15.75, 450/17.72, 500/19.69, 550/21.65, 600/23.62, 650/25.59, 700/27.56, 800/31.50, 850/33.46, 900/35.43, 1000/39.37, 1200/47.24, 1300/51.18, 1400/55.12, 1600/62.99, 2000/78.74 - Range of Bending Speed [m/min]= 5, 6, 7 - Diameter of Top Shaft [mm/inch]= 65/2.56, 80/3.15, 100/3.94 - Diameter of Lower Shaft [mm/inch]= 50/1.97, 70/2.76, 100/3.94 - Sheet Metal O.D. [mm/inch]= 10/0.39, 12/0.47, 12.7/10.5, 15/0.59, 20/0.79, 25.4/1, 25/0.98, 30/1.18, 32/1.26, 35/1.38, 40/1.57, 45/1.77, 50.8/2, 50/1.97, 6.35/0.25, 60/2.36, 65/2.56, 70/2.76, 76.2/3, 80/3.15, 100/3.94, 120/4.72, 125/4.92, 139.7/5.50, 140/5.51, 150/5.91, Φ10, Φ15, Φ17.2, Φ20, Φ25, Φ30, Φ35, Φ50, Φ60, Φ76.1, Φ100, UPN100, UPN120, UPN140 - Sheet Metal Height [mm/inch]= 2/0.08, 3/0.12, 4/0.16, 5/0.20, 6/0.24, 7/0.28, 8/0.31, UPN100, UPN120, UPN140 - Main Motor [HP/kw]= 4/3.0, 5.5/4.1, 10/7.5 - Weight [Kgs/Lbs]= 1100/2425, 1700/3748, 3650/8047 - Overall Dimensions [mm] [LxWxH]= 1200x850x1200, 1450x1000x1400, 1465x2000x1700 - For= Light / Heavy Duty - Type= Profile, Section, Rotary Draw Bander - Shape= 1 - 18 Type |
Packaging & Delivery
| Packaging: | Carton or Crate |
|---|---|
| Delivery/Lead Time: | Around 90 days after order is confirmed. |
| Production Capacity: | 30 Set Up/Year |
Product Description
With over 20 years of international experience, AH Machinery supplies a wide range of top-quality machinery made in Taiwan, including Rotary Draw Banders, Tubular Component Bending, Rolling Draw Benders, Roller Bender Machines, Pipe Bending Machines, Tube Bending Machines, Pipe and Tube Fabrication Equipment, Electric Tube Benders.
Customized specifications are available to meet your unique needs.
/FEATURES/
#Customized_specifications_are_available.
#High_caliber_and_Accurate.
/APPLICABLE METERIALS/
Conduit Tubes, Fumiture Iron Pipe, Gas Tubes, Hard Copper & Aluminum, Hydraulic Steel ST35, Mepla, Geberit & Similar Tubes, Mild Steel [EN:S275JO], Soft Brass, Soft Copper, Stainless Steel AISI304-316, Stainless Steel AISI308, Standard Steel Tubes.
/APPLICATIONS/
Automotive Manufacturing Industry, Aerospace Industry, Furniture Production Industry, HVAC Systems, Shipbuilding Industry, Oil and Gas Industry, Construction Industry, Metal Fabrication Industry, Plumbing and Pipefitting, Automotive Exhaust Systems, Marine Industry, Automotive Manufacturing, Aerospace Industry, Medical Equipment Manufacturing.
/FINAL PRODUCTS/
Automotive Components, Bent Tubes for Exhaust Systems, Tubular Components for Roll Cages, Bent Pipes for Fluid Transfer Systems, Tubular Frames for Vehicles, Furniture Manufacturing, Curved Metal Components for Chair and Table Frames, Bent Tubes for Furniture Structures, Tubular Frames for Shelves and Stands, Aerospace Industry, Bent Tubes used in Aircraft Structures, Tubular Components for Aerospace , Applications, Precision-Bent Tubes for Aviation Systems, Medical Equipment, Bent Tubes for Medical Instrument Frames, Tubular Components for Hospital Equipment, Precision-Bent Tubes for Diagnostic Devices, Construction and Architecture, Curved Metal Sections for Architectural Designs, Bent Tubes for Handrails and Guardrails, Tubular Components for Structural, Frameworks, Industrial Machinery, Bent Tubes for Conveyor Systems, Tubular Components for Manufacturing Equipment, Precision-Bent Tubes for Specialized Machinery, Energy and HVAC Systems, Bent Pipes for Pipelines in Energy Plants, Tubular Components for HVAC Ducts, Precision-Bent Tubes for Fluid and Gas Handling, Custom Fabrications, Artistic and Decorative Bent Metal Structures, Unique and Customized Tubular Designs, Specialized Components for Various Applications.
Welcome to contact us!
A Homia will satisfy you as long as you give us a try.
Contact us today for high-caliber and accurate machinery solutions.
