Penta Prisms
| Price: | US$ 0.1 |
|---|---|
| Minimum Order: | 10 |
| Payment Terms: | 100%T/T |
| Port of Export: | fuzhou |
Product Details
| Model No.: | Brand Name: | UPT |
|---|
| Certification: | ISO90001 |
|---|---|

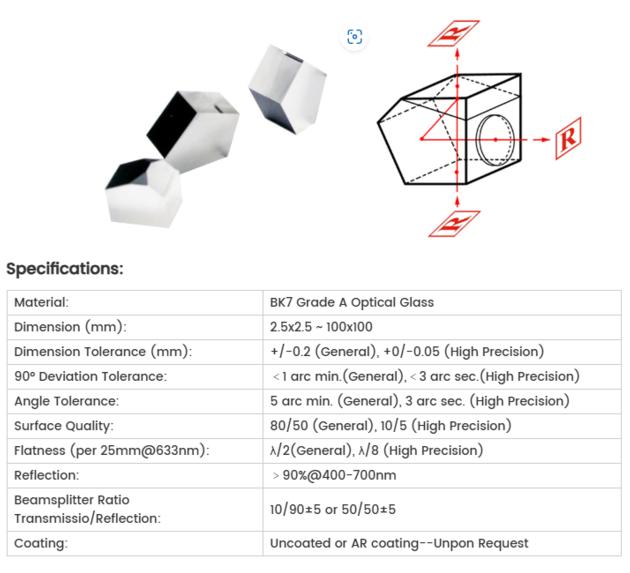

| Specification: |
Material:
BK7 Grade A Optical Glass Dimension (mm): 2.5x2.5 ~ 100x100 Dimension Tolerance (mm): +/-0.2 (General), +0/-0.05 (High Precision) 90® Deviation Tolerance: ＜1 arc min.(General),＜3 arc sec.(High Precision) Angle Tolerance: 5 arc min. (General), 3 arc sec. (High Precision) Surface Quality: 80/50 (General), 10/5 (High Precision) Flatness (per 25mm@633nm): λ/2(General), λ/8 (High Precision) Reflection: ＞90%@400-700nm Beamsplitter Ratio Transmissio/Reflection: 10/90¯5 or 50/50¯5 Coating: Uncoated or AR coating--Unpon Request |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 4weeks |
| Production Capacity: | 9999 |
Product Description
Beamsplitter Penta Prism
By adding a wedge and with partial reflective coating on first reflective surface, Penta Prism can be used as Beamsplitter.We supply Beamsplitter Penta Prism with standard Transmission/reflection (T/R) ratio of 10/90,50/50.Other T/R ratio is available upon request.
Note for Beamsplitter Penta Prism:
(1). Besides N-BK7 glass, other optical glass is available for custom-made Penta Prisms.
(2). Typical dimension Axh is from 2.5x2.5-100.0x100.0 mm.
(3). Typical deviation tolerance is 1 minute, better precision such as 30 seconds, 10 seconds, 5 seconds,
3 seconds is available.
(4). Typical reflection is >90% by Al coating, other metal coating such as Ag, Cu, or High Reflection
Dielectric Coating is available.
(5). Typical Beamsplitter Ratio Transmission/Reflection is 10/90¯5 or 50/50¯5, other Ratio is available.
(6). Besides uncoating, Anti-Reflective(AR) coating is available upon request..
|
