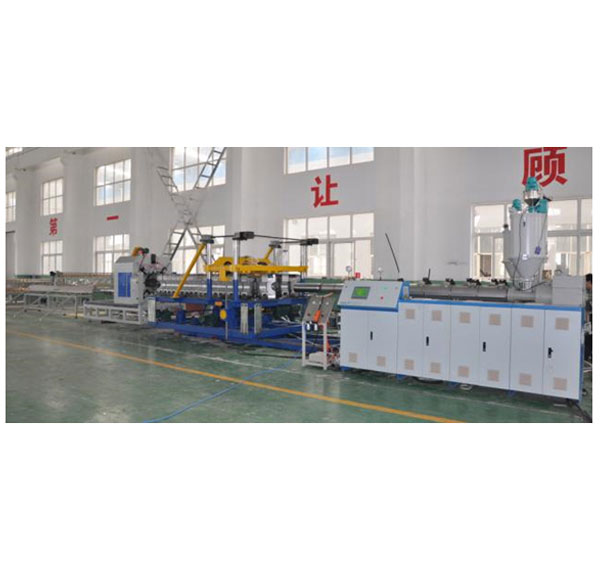

PE PVC Single / Double wall corrugation pipe production line

Close type corrugator and vacuum for forming.
Forming module is moving in a tunnel.
Forming tunnel is clod by water.

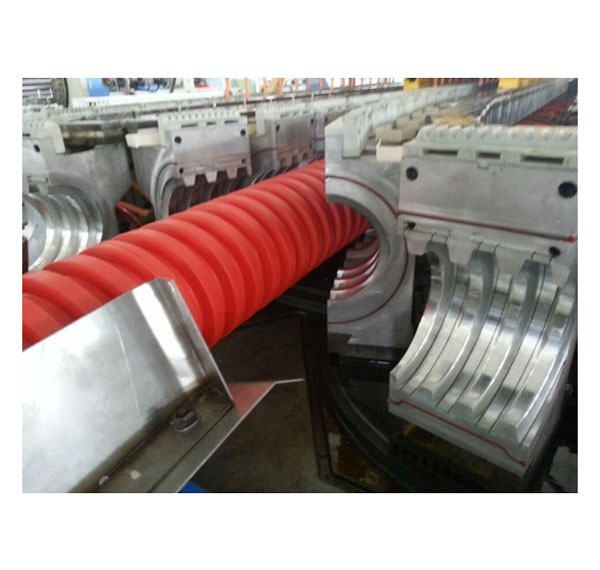

Forming module is made of hard alloy steel andanti-corrosion and abrasion.
No any connection between forming module, then reduce time to change.
Provide single wall corrugated pipe machine sand double wall corrugation pipe head die.

Parameter of PE PVC Single / Double wall corrugation pipe production line

Single-wall corrugated pipe production line
Model JG-DBG90 JG-JBG120
Raw material PE
Extruder Φ90/25 Φ120/50
Range of pipe dia mm Φ65-115 Φ115-175
.Water consumption L/H 4000 5000
Water pressure Mpa 0.4-0.6 0.4-0.6
Number of mould block pair 50 60
Whole length of mould block mm 5180 6216
Move speed of mould block M/mm 1-12 1-8
Dimensions(L x W x H)(approx) m 18*1.35*1.7 21*1.55*2.2
Total weight(approx) T 6 9.5
Double-wall corrugated pipe production line
Model JG-DBG60/125 JG-DBG60/125
Raw material PVC PVC
Extruder Φ60/125 Φ65/132
Range of pipe dia Φ65/110 Φ110/165
.Water consumption mm 5000 5000
Water pressure L/H 0.4-0.6 0.4-0.6
Number of mould block Mpa 50 60
Whole length of mould block pair 5180 6216
Move speed of mould block M/mm 1-12 1-8
Dimensions(L x W x H)(approx) m 20*1.35*2.15 24.8*1.6*2.25
Total weight(approx) T 8.5 12

Qingdao Kailite plastic machinery Co., LTD. is a professional plastic pipe production line manufacturers, we provide double wall corrugated pipe machine, corrugated pipe making machine, extrusion line machine and etc. Want to know more? Please contact us.
