Optical Fingerprint Recognition Embedded Module
| Price: | US$ 17 / Piece |
|---|---|
| Minimum Order: | 1000 pcs |
| Payment Terms: | T/T |
| Port of Export: | Taiwan |
Product Details
| Model No.: | FPM-5210F32 | Brand Name: | Digimore |
|---|
| Certification: | |
|---|---|
| Specification: |
The Digimore FPM-5210F32 is high performance fingerprint module with wake up on finger function. It is one chip fingerprint module designed for integration into products with UART interface. The active area allows stable image and ability to cope with mass market applications in need of both security and convenience. The reader within the Holtek HT32F22366 device is high performance, low power consumption 32-bit microcontrollers based around an ARM Cortex-M3 processor core and the fingerprint algorithm is processed on it.
|
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 8 weeks |
| Production Capacity: |
Product Description
* CPU : ARM Cortex M3 Core
* Sensor : Optical sensor
* Windows : 16.9 mm x 12.9 mm
* Effective Area of the Sensor : 14 mm x 12.5 mm
* Resolution / Image Size : 450 dpi / 258 x 202 Pixels
* Number of Fingerprints : 200 fingerprints (3,000 fingerprints also available)
* Algorithm Matching Mode : 1 : 1, 1 : N
* Size of Template : 496 bytes (template) + 2 Bytes (checksum)
* Interface : USB 2.0 full speed, UART (default baud rate=9600bps after power on)
* FAR/ FRR : False Acceptance Rate (FAR) < 0.001%; False Rejection Rate (FRR) < 0.1%
* Enrollment Time/ Identification Time : <3 sec. (3 fingerprints); <1.5 sec.
* Operating Voltage : DC 3.6V ~ 6V
* Operating Current (V) : < 130 mA
* Operating Temperature : -20 to 60 degrees Celsius (20% to 80% RH, 25 degree Celsius)
* Storage Temperature : -20 to 60 degrees Celsius (10% to 80% RH, 25 degree Celsius)

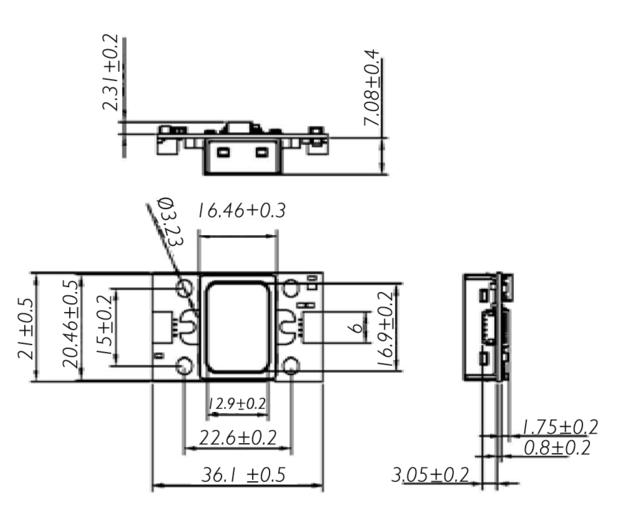

* Dimension : 36.1 + 0.5 (L) x 21.0 (W) + 0.5 x 9.39 + 0.2 (H) mm
|
