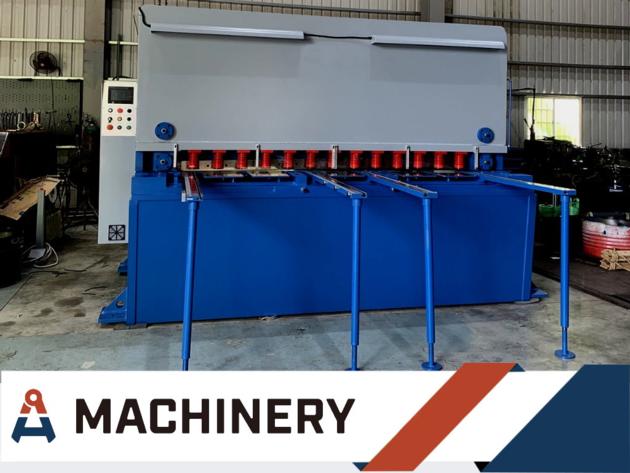

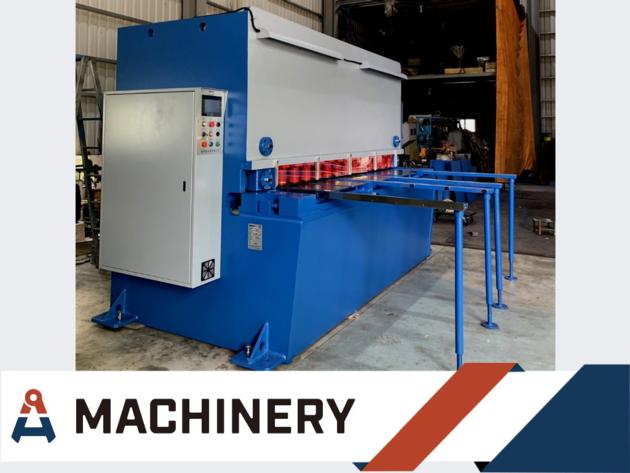

Numerically Controlled Swing Arm Shear Machines for (Cutting Length 1150 - 6200 mm)

With over 20 years of international experience, AH Machinery supplies a wide range of top-quality machinery made in Taiwan, including Programmable Swing Arm Shear Machines, Programmable Swing Arm Squaring Shears, Numerically Controlled Swing Arm Shear Machines, Automatic Swing Arm Shear Machines, Numerically Controlled Swing Arm Squaring Shears, Programmable Swing Arm Metal Shears, Numerically Controlled Swing Arm Metal Shears, Precision Swing Arm Shear Machines, Precision Swing Arm Metal Shears, NC Swing Arm Squaring Shears, NC Swing Arm Shear Machines, NC Swing Arm Metal Shears, NC Swing Arm Shearing Machines.
Customized specifications are available to meet your unique needs.

/ADVANTAGE/
v High Stiffness and Strength: Stress-relieved, unitized box construction of the table and extra thick steel frames provides maximum stiffness and strength for heavy-duty cutting.
v Logic Hydraulic Circuit System: The hydraulic system of our swing beam shear is not only comprised of long life, heavy-duty components but also controlled by sequence valves.
Access and serviceability are made easy.
v Nitrogen Cylinders: Nitrogen cylinders, made in USA, are used as return cylinders. The return cylinders, independent from the hydraulic cylinders, automatically retract the blade to the top of stroke position during power shut-down, emergency, or after the cutting stroke is completed. They improve highly safety and efficiency of machine operation.
v Blade Clearance Adjustment: Drived by worm gear sets of special 360-degree-turning eccentric design to enhance the efficiency of blade clearance adjustment. A conveniently located adjustment on the touch screen enables the operator to accurately adjust the blade clearance on both sides of the machine simultaneously.
v Hold downs are synchronized with the upper blade travel to provide maximum hold down pressure at the moment of shearing, thus, assuring cutting accuracy. As shearing forces on the plate increase, the hold down pressure increases to provide optimum gripping action.
v For fast, visual positioning of sheets with scribed lines or punch marks, an intense light is provided. The light source casts a precise shadow line for accurate positioning and shearing.
v The new 5.7 inch LCD touch screen controls settings for the blade gap adjustment, length of stroke, back gauge setting [mm] and number of cuts. You can store up to 10 different job steps.

/STANDARD/
v Ball Transfer Working Table
v Blade Clearance Adjustment
v Blades
v Finger Guard
v Footswitch
v Front Gauge
v NC Control System
v Nitrogen Cylinders
v Operation Instruction Manual
v Shadow Line Device

/FEATURES/
#Customized_specifications_are_available.
#High_caliber_and_Accurate.

/APPLICATIONS/
Metal Fabrication, Metal Fabrication Shops, Sheet Metal Processing, Automotive Inustry, Aerospace Industry, Construction Industry, Metalworking, Manufacturing, Job Shops General Metalworking.

/FINAL PRODUCTS/
Metal Sheets and Plates, Metal Strips and Coils, Metal Blanks, Metal Specific Shapes, Stamped and Formed Parts, Stamped Assemblies, Formed Assemblies, Stamped Structures, Formed Structures, Metal Components for Assemblies, Larger Structures, Machinery, Custom Metal Shapes, Precision Cutouts, Automotive Components, Brackets, Panels, Other Metal Parts, Construction Elements, Metal Beams, Metal Supports, Metal Connectors, Metalworking and Fabrication Products, Metalworking Aerospace, Metalworking Energy, Metalworking General Manufacturing.
