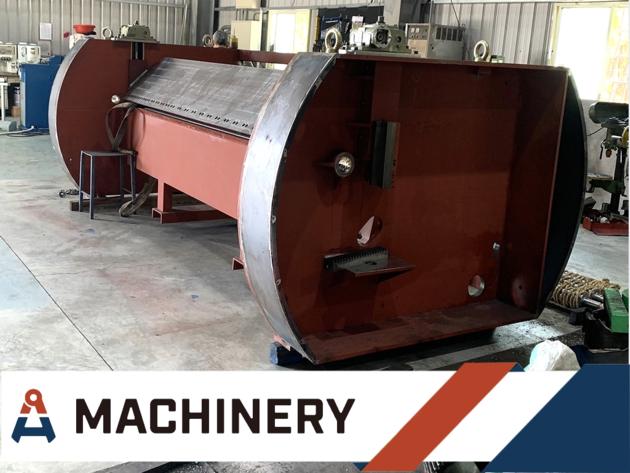

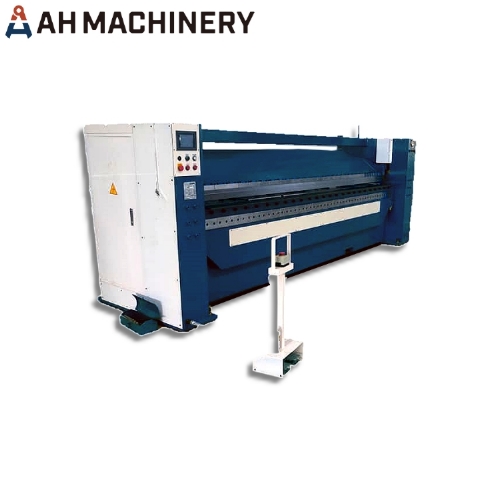

NC Hydraulic Steel Plate Bending for (30, 60, 100, 150, 200, 220, 300, 450, 600 tons)

Price:	US$ 10000-100000 / Set
Minimum Order:	1 Set
Payment Terms:	T/T
Port of Export:	Taichung Port

Product Details

Model No.:	APBNH-1 / APBNH-2 Series	Brand Name:	AH

Certification:
Specification:	- Tonnage [Tons]= 30, 60, 100, 150, 200, 220, 300, 450, 600 - Bending Length [mm/inch]= 1500/59.1, 2000/78.7, 2500/98.4, 3000/118.1, 3100/122.0, 3700/145.7, 4000/157.5 - Bending Thickness [mm/GA]= 1.6/16, 2.0/14, 2.5/12, 3.0/11, 3.5/10, 4.0/8, 4.5/7, 6.5/3 - Max. Open Height [mm/inch]= 100/3.9 - Distance Between Housing [mm/inch]= 1300/51.2, 1600/63.0, 2200/86.6, 2600/102.4, 3000/118.1, 3200/126.0, 4000/157.5, 4100/161.4, 5000/196.9, 5100/200.8 - Stroke [mm/inch]= 120/4.7, 150/5.9, 200/7.9, 225/8.9, 250/9.8, 275/10.8, 300/11.8 - Main Motor [HP/Kw]= 3/2.2, 4/3.6, 5/3.7, 7.5/5.6, 9/7.4, 10/7.5, 15/11.2, 25/18.6, 30/22.4, 40/29.8 - Working Height [mm/inch]= 800/31.5, 900/35.4 - Throat Depth [mm/inch]= 200/7.9, 250/9.8, 300/11.8, 350/13.8, 400/15.7 - Overall Dimensions [mm] [LxWxH]= 1700x1100x2100, 2300x1100x2100, 2300x1250x2450, 2300x1650x2650, 2700x1100x1750, 2700x1200x1750, 2700x1300x2600, 2900x1250x2450, 2900x1600x2850, 2900x1650x2650, 3300x1550x1900, 3500x1250x2450, 3500x1600x2650, 3500x1600x2850, 3500x1800x3050, 3500x1800x3350, 3850x1700x1860, 3900x1750x2050, 4100x1600x2750, 4100x1600x2950, 4100x1800x3150, 4100x1800x3550, 4300x1770x1890, 4400x1800x3150, 4400x2400x3500, 4400x2700x3800, 4500x1750x2050, 5300x1750x2050, 5500x2400x3700, 5600x1800x2100, 5600x2200x3650, 5600x2300x3500, 5600x2700x3900, 6700x2450x3900, 6700x2800x4000 - Type= NC Hydraulic - Suitable for= SUS 304, SS 400 - Capacity [mm]= 1.6x2000, 2.0x1600, 2.0x3220, 2.5x2600, 2.8x3200, 3.2x2000, 3.4x3200, 4.2x2600, 4.2x3200, 4.2x3800, 4.8x5100, 6.0x2000, 6.0x3800, 6.0x4000, 6.2x2600, 6.5x5100, 7.0x3200, 8.0x6200, 9.0x3800, 10x5100, 10.5x3200, 11x6200, 12x4000, 13x5100, 16x4000 - Length Of Table [mm/inch]= 1600/63.0, 2000/78.7, 2600/102.4, 3200/126.0, 3800/149.6, 4000/157.5, 4100/161.4, 5100/200.8, 6200/244.1 - Width Of Table [mm/inch]= 120/4.7, 150/5.9, 200/7.9, 250/9.8, 300/11.8 - Day Light [mm/inch]= 250/9.8, 300/11.8, 340/13.4, 380/15.0, 420/16.5, 450/17.7, 500/19.7, 550/21.7 - Strike Depth-Stop Adjustment [mm/inch]= 70/2.8, 100/3.9, 120/4.7, 150/5.9, 180/7.1 - Rake Angle [degree]= 0-135 - Floor-Pit Depth [mm/inch]= 365/14.4, 480/18.9, 750/29.5, 780/30.7, 850/33.5, 1050/41.3, 1100/43.3, 1180/46.5, 1300/51.2, 1500/59.1, 1700/66.9

Certification:

Specification:

- Tonnage [Tons]= 30, 60, 100, 150, 200, 220, 300, 450, 600
- Bending Length [mm/inch]= 1500/59.1, 2000/78.7, 2500/98.4, 3000/118.1, 3100/122.0, 3700/145.7, 4000/157.5
- Bending Thickness [mm/GA]= 1.6/16, 2.0/14, 2.5/12, 3.0/11, 3.5/10, 4.0/8, 4.5/7, 6.5/3
- Max. Open Height [mm/inch]= 100/3.9
- Distance Between Housing [mm/inch]= 1300/51.2, 1600/63.0, 2200/86.6, 2600/102.4, 3000/118.1, 3200/126.0, 4000/157.5, 4100/161.4, 5000/196.9, 5100/200.8
- Stroke [mm/inch]= 120/4.7, 150/5.9, 200/7.9, 225/8.9, 250/9.8, 275/10.8, 300/11.8
- Main Motor [HP/Kw]= 3/2.2, 4/3.6, 5/3.7, 7.5/5.6, 9/7.4, 10/7.5, 15/11.2, 25/18.6, 30/22.4, 40/29.8
- Working Height [mm/inch]= 800/31.5, 900/35.4
- Throat Depth [mm/inch]= 200/7.9, 250/9.8, 300/11.8, 350/13.8, 400/15.7
- Overall Dimensions [mm] [LxWxH]= 1700x1100x2100, 2300x1100x2100, 2300x1250x2450, 2300x1650x2650, 2700x1100x1750, 2700x1200x1750, 2700x1300x2600, 2900x1250x2450, 2900x1600x2850, 2900x1650x2650, 3300x1550x1900, 3500x1250x2450, 3500x1600x2650, 3500x1600x2850, 3500x1800x3050, 3500x1800x3350, 3850x1700x1860, 3900x1750x2050, 4100x1600x2750, 4100x1600x2950, 4100x1800x3150, 4100x1800x3550, 4300x1770x1890, 4400x1800x3150, 4400x2400x3500, 4400x2700x3800, 4500x1750x2050, 5300x1750x2050, 5500x2400x3700, 5600x1800x2100, 5600x2200x3650, 5600x2300x3500, 5600x2700x3900, 6700x2450x3900, 6700x2800x4000
- Type= NC Hydraulic
- Suitable for= SUS 304, SS 400
- Capacity [mm]= 1.6x2000, 2.0x1600, 2.0x3220, 2.5x2600, 2.8x3200, 3.2x2000, 3.4x3200, 4.2x2600, 4.2x3200, 4.2x3800, 4.8x5100, 6.0x2000, 6.0x3800, 6.0x4000, 6.2x2600, 6.5x5100, 7.0x3200, 8.0x6200, 9.0x3800, 10x5100, 10.5x3200, 11x6200, 12x4000, 13x5100, 16x4000
- Length Of Table [mm/inch]= 1600/63.0, 2000/78.7, 2600/102.4, 3200/126.0, 3800/149.6, 4000/157.5, 4100/161.4, 5100/200.8, 6200/244.1
- Width Of Table [mm/inch]= 120/4.7, 150/5.9, 200/7.9, 250/9.8, 300/11.8
- Day Light [mm/inch]= 250/9.8, 300/11.8, 340/13.4, 380/15.0, 420/16.5, 450/17.7, 500/19.7, 550/21.7
- Strike Depth-Stop Adjustment [mm/inch]= 70/2.8, 100/3.9, 120/4.7, 150/5.9, 180/7.1
- Rake Angle [degree]= 0-135
- Floor-Pit Depth [mm/inch]= 365/14.4, 480/18.9, 750/29.5, 780/30.7, 850/33.5, 1050/41.3, 1100/43.3, 1180/46.5, 1300/51.2, 1500/59.1, 1700/66.9

Packaging & Delivery

Packaging:	Carton or Crate
Delivery/Lead Time:	Around 90 days after order is confirmed.
Production Capacity:	30 Set Up/Year

Product Description

With over 20 years of international experience, AH Machinery supplies a wide range of top-quality machinery made in Taiwan, including NC Hydraulic Steel Plate Bending, NC Hydraulic Sheet Metal Brakes, NC Hydraulic Sheet Metal Box Brakes, NC Hydraulic Bending Machines, NC Hydraulic Brake for Bending Boxes, NC Hydraulic Box and Pan Brakes.
Customized specifications are available to meet your unique needs.

/FEATURES/
#Customized_specifications_are_available.
#High_caliber_and_Accurate.

/APPLICATIONS/
Sheet Metal Fabrication Industry, Automotive Industry, Aerospace Industry, Construction Industry, Heavy Machinery Manufacturing Industry, Shipbuilding Industry, Energy Sector, Railroad and Transportation Industry, Metal Furniture Manufacturin Industry, Custom Metal Fabrication Industry, Architectural Metalwork Industry, HVAC Ductwork, Oil and Gas Industry, Mining Equipment, Appliance Manufacturing

/FINAL PRODUCTS/
Automotive Components, Automotive Chassis Parts, Automotive Brackets, Automotive Panels, Aerospace Parts, Complex for Aircraft, Complex for Aerospace, Accurately Formed Steel Parts for Aircraft, Accurately Formed Steel Parts for Aerospace, Structural Elements for Building Construction, Structural Elements for Infrastructure Projects, Heavy Machinery Parts, Ship Components, Construction of Ship Components, Construction of Hulls, Power Plant Equipment, Steel Components for Power Plants, Steel Components for Pipes, Steel Components for Supports, Steel Components for Structural Elements, Steel Components for Railcars, Steel Components for Buses, Steel Components for Transportation Equipment, Metal Furniture Frames, Custom Metal Components, Architectural Metalwork, HVAC Ductwork Components, Oil and Gas Industry Components, Mining Machinery Parts, Appliance Parts, Steel Components for Ovens, Steel Components forRefrigerators, Steel Components for Washing Machines, Custom Fabricated Products

Welcome to contact us!
A Homia will satisfy you as long as you give us a try.
Contact us today for high-caliber and accurate machinery solutions.
