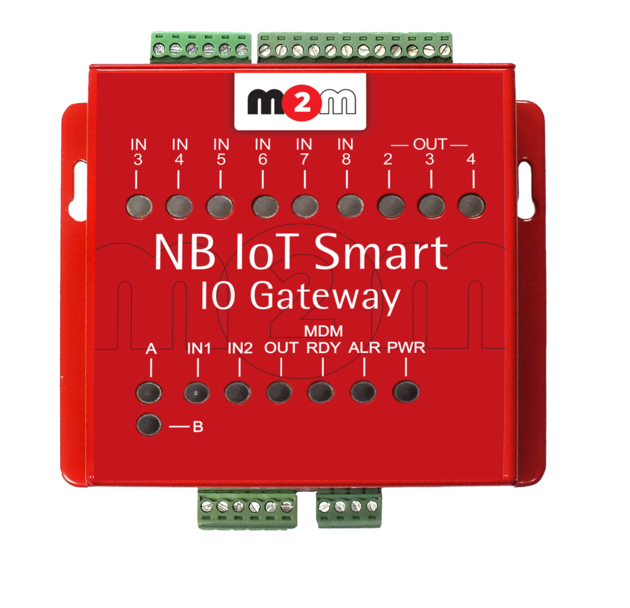

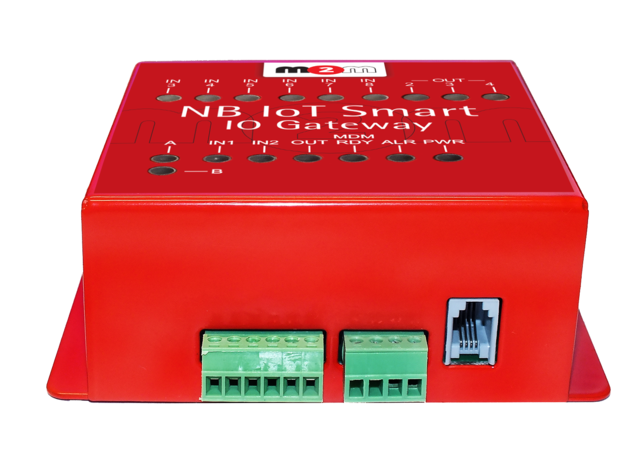

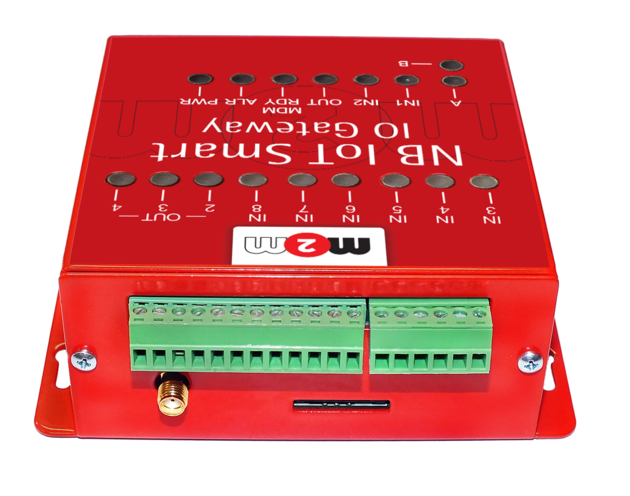

NB IoT Smart IO Gateway

Easy to configure wireless Narrow-Band/IoT pulse counter, voltage/contact signal transmitter with Modbus RTU, remote monitoring and output control for utilities, companies, industry

Cost-effective wireless pulse counter, input signal transmitter for industrial companies and utility providers.

It is receiving and counting incoming digital signals (contact/voltage/pulse) of connected meters (1 to 8 water or gas meters), measurement devices – through IO port.

The communicator is providing wireless data transmitting through the Narrow-Band mobile network to the data center.

Suitable for answering Modbus RTU request of a Scada system, where it is responsing meter count data towards to the centre.

It is also useful for remote monitoring of inputs (external device current status) and for output control (remote switch or gate opening).

Easy to configure (remote, local by a free tool), easy to use. The communicator can be accessed remotely.

The data evaluation on server side, where we offer our EMR Metering¬ platform. Remote management due to the M2M Device Manager¬.


Application
- Utility providers
- Smart metering
- Industrial measurement
- Companies, offices, hotels
- Residential communities
- Device monitoring & surveillance
